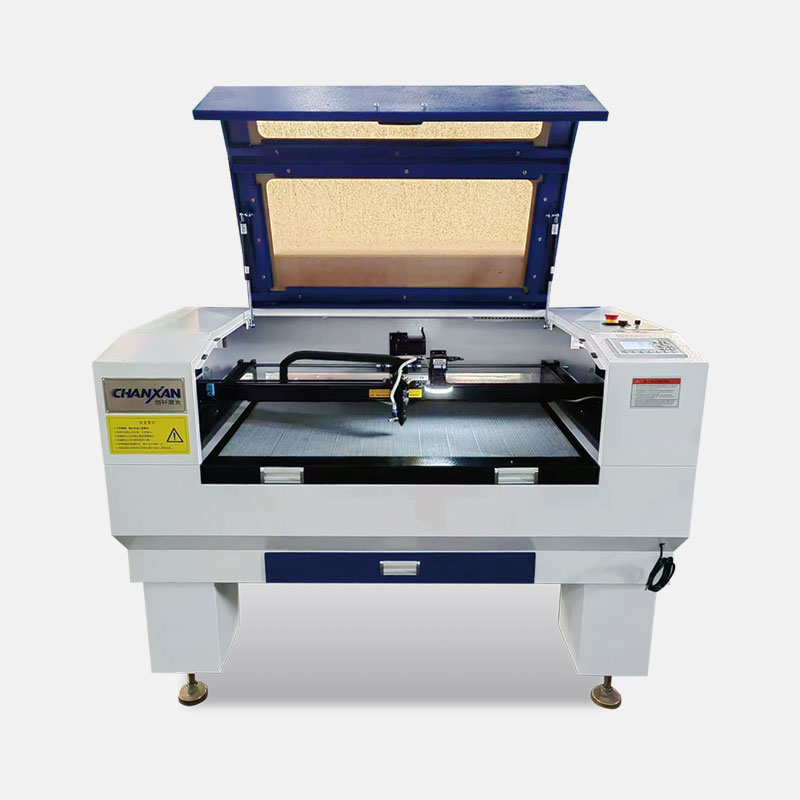

Projector CO2 Laser Cutting Machine

Automatic intelligent line drawing, cutting Laser cutting machine, an automatic intelligent upper line drawing and cutting equipment developed for the shoe upper automatic drawing line, used to replace the traditional shoe making process such as manual line drawing and screen printing.

 Chanxan pioneered the patented product and cut the hot melt adhesive for the upper;

 Solve the edge of the hot melt adhesive and the uneven pressing phenomenon;

 Non-contact cutting, product efficiency and standard;

 Intelligent typesetting, maximizing material saving; Easy to learn and save labor;

 Double feed table cross feed, fully automatic loading and unloading, improve work efficiency 3-5 times .

Chanxan's first patented product, the exclusive technology can perfectly cut 3mm thick midsole plate

Move the countertops to greatly increase production efficiency

Non-contact cutting, more standard products Intelligent typography cuts small seams and saves materials up to 20% Beautiful cut, material cut is not black One-stop solution for grading, typesetting and cutting, so that production is worry-free

No need for die, cost savings and fast proofing Easy to learn and easy to learn, no safety hazards

Cut with high precision

Flexible operation interface

High performance step motor

Imported axletree Straight-line slide-way

Perfect optical system

Multiplicate data transmission mode

Innovative process development, avoiding the problem of traditional laser cutting of the edge-smoked black smoked black.

High-performance motherboard, anti-interference, more complete data output, power-off continuous carving, slope carving.

Fast curve cutting function: Any curve can be cut continuously in rapid succession.

With power, frequency and speed follow function, it effectively reduces corner burrs; corner energy following technology makes sharp angle cutting technology more perfect.

The software design path can be optimized as needed to reduce processing time and improve efficiency.

The software recognizes the contour of the graphic, automatically generates the cutting path and completes the cutting.

The waste of materials and time caused by inaccurate positioning is avoided. Machine supports camera calibration compensation, and corrects the overall offset that occurs after the device has been running for a period of time to ensure accurate contour cutting.

The Residual Amount Control System is used to detect the length of the cloth balance by the sensor probe, and the feeding motor is automatically turned on and off to achieve the free and non-stretching conveyance of the cloth.

High pixel capture graphics with a maximum recognition area of up to 4 square meters.

Faster laser engraving machine on the market;

Higher productivity and lower operating costs.

Faster laser engraving machine on the market;

Higher productivity and lower operating costs.

Cut with high precision

Flexible operation interface

High performance step motor

Imported axletree Straight-line slide-way

Perfect optical system

Multiplicate data transmission mode

Cut with high precision

Flexible operation interface

High performance step motor

Imported axletree Straight-line slide-way

Perfect optical system

Multiplicate data transmission mode

1. Cost saving for its maximum material utilization and molding free features.

2. High rigidity with strengthening welded bed and secondary annealing so the mechanical stress is reduced.

3. High efficiency, the exchange platform doubles the cutting efficiency and maximizes the time and manpower.

4. High reward for its fast speed cutting to increase product added value and long life. It will bring double return to your investment.

5.  Easy to operate, high cutting precision, scientific typesetting, and more material saving.

Especially suited to cut textiles

Ability to cut all sorts of raw materials

Standard equipped with head camera

Vision system is optional

Suitable for high-production environments

Fast processing for more throughput in less time
