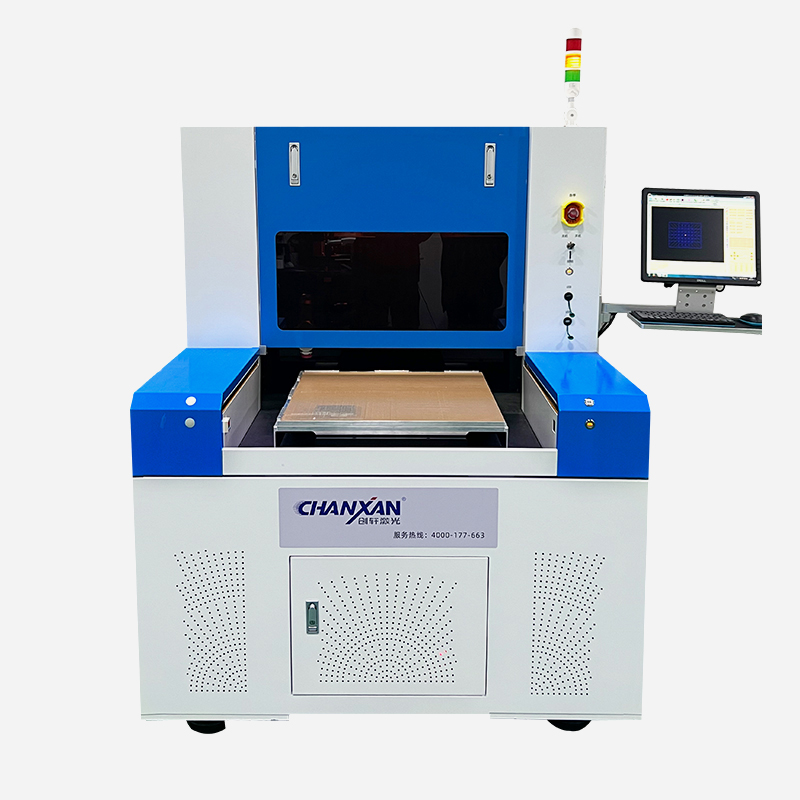

CO2 Laser Catheter Drilling Machine
CX-150S
- Product Description
- Product Characteristics
- Performance Parameter
- Application Field
Sample Showcase
Ultra-fine hole arrays on glass with zero micro-cracks.
Precision circular cutting on transparent quartz materials.
High-accuracy square and hole machining on ceramics.
Medical-grade precision cutting for tiny polymer components.
Intricate circuitry etching on thin film composite materials.
Silicon Drilling: 1.5mm thickness, Φ1mm to Φ0.2mm precision.
Key Features
Ultra-Short Pulse Femtosecond Laser
Processing that causes almost no heat conduction. Minimum of 3µm chipping or HAZ (Heat Affected Zone).
CCD Vision & Auto Positioning
Pre-scan and auto target positioning; splicing accuracy of X,Y platforms ≤±3µm.
Extra Fine Laser Beam
Guarantees long-term stability and negligible thermal effects.
High Energy & Accuracy
Higher single pulse energy enabling precision processing of virtually any solid material.
Customizable Software Control
Self-developed system allows for customization and upgrade based on customer needs.
Core Components
Picosecond Infrared Laser
High Peak Power
Fast cutting in ultra-short time for delicate materials.
Marble Platform
Stable Adsorption
Corrosion-resistant tabletop with stable load-bearing capabilities.
Precision Linear Motor
Fast & Accurate
Optical scale for fast speed and high visual positioning accuracy.
Technical Specifications
| Parameter | Value (HR-Femto-IR-10-10B) |
|---|
| Center Wavelength | 1035 nm |
| Output Power | 10 W |
| Max Pulse Energy | 10 μJ |
| Pulse Width | <500 fs |
| Beam Quality (M²) | ≤1.3 (Typical <1.2) |
| Power Stability | <2% RMS |
| Cooling Method | Air-cooling |
Looking for higher power or customized configurations?
View High-End Series →
Systematic Training System
"We provide comprehensive training for technicians. Training instructors follow up project operations to ensure production is carried out in an orderly manner."
Expert Team Training
One to One Instruction
Machine Knowledge
Software Usage
After-Sale Service
24-Hour Resolution
Locate problems within 24h, solve within 3-10 days.
One-Year Warranty
Free warranty for the whole machine with invoice.
