Utilizing the latest generation fiber laser and equipped with a self-developed welding head, this product fills the gap in the welding market within the laser equipment industry.
It boasts advantages such as simple operation, aesthetically pleasing welds, high welding speed, and no consumables.
It can perfectly replace traditional argon arc welding and electric welding processes for welding thin stainless steel plates, iron plates, galvanized plates, and other metal materials.
Simple operation; no certification required, even beginner welders can produce beautiful welds.
Fast welding speed, 2-10 times faster than traditional welding; one machine can save at least two welders per year.
Smooth and beautiful welds, reducing subsequent grinding processes and saving time and costs.
Handheld welding head for welding large metal advertising letters overcomes the limitations of workbench space.

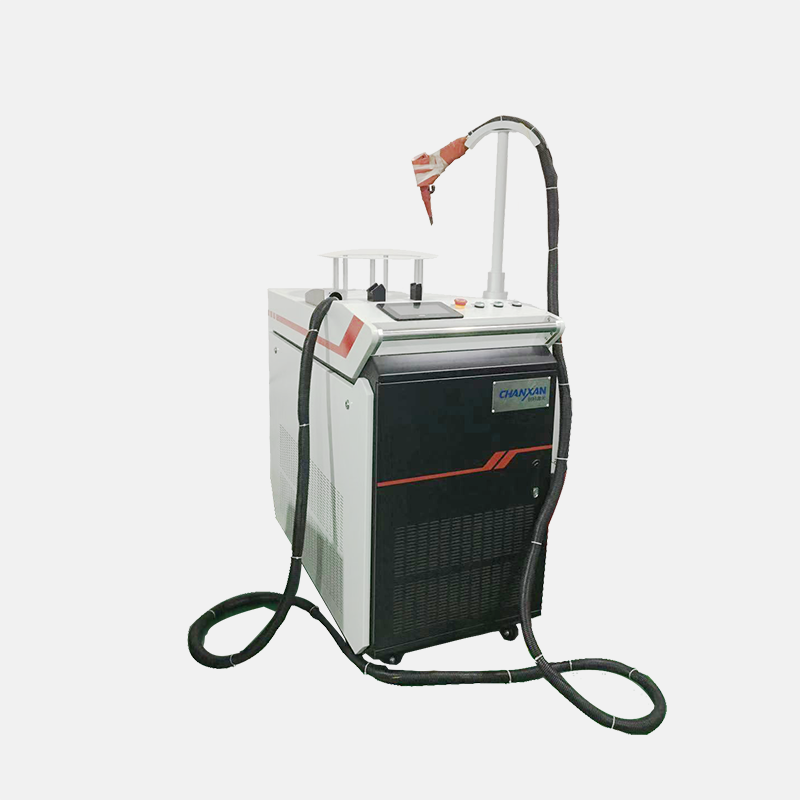

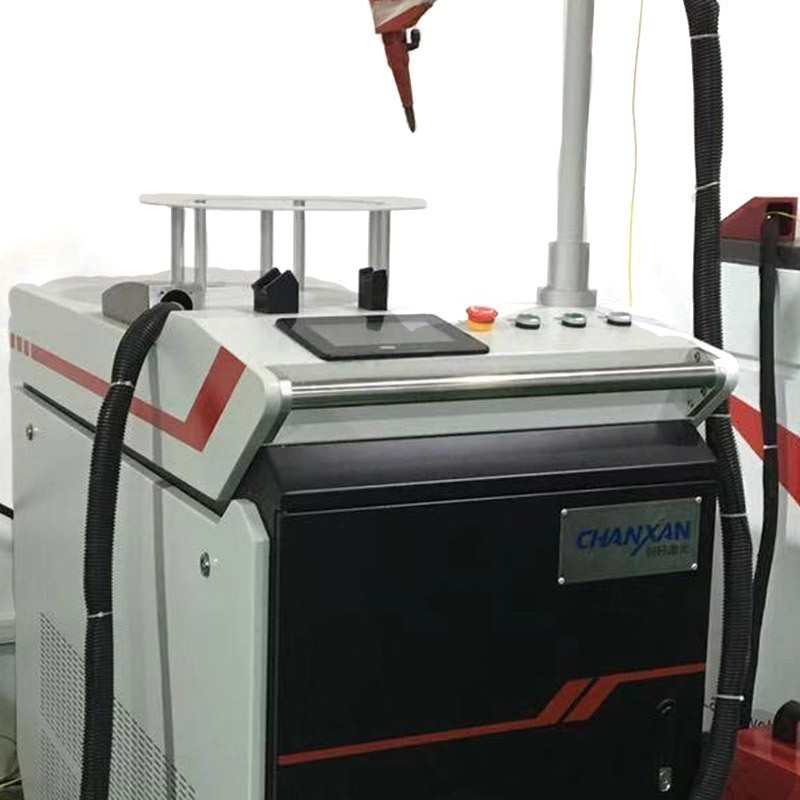

Fitting small metal advertising letters uses a fixed welding head; the letter can be moved for welding, making operation convenient and simple.
The fixed welding head can rotate in all directions, overcoming the inconvenience of traditional welding heads that rotate only in one direction.
The handheld welding head is equipped with a 5-meter imported optical fiber, allowing for flexible and convenient outdoor welding.
The handheld welding gun's operation mode allows welding at any angle and location on the workpiece.
It can perform intelligent switching between dual optical paths, ensuring uniform energy distribution through time-division and beam splitting.
Suitable for various complex welds and spot welding of various components.
| Parameter | Specification |
|---|---|
| Model | LW-1000 / 1500 / 2000 / 3000 / 6000 |
| Product Name | Handheld Laser Welding Machine / Metal Laser Welding Equipment |
| Output Optical Power | 1000W / 1500W / 2000W / 3000W / 6000W |
| High Pulse Energy | 100J |
| High Peak Power | 9.9kW |
| Pulse Width | 0–15ms |
| Repetition Frequency | 0–150Hz |
| Splitting Method | Precision energy splitting or high-speed time splitting |
| Closed-Loop Feedback Control Method | Real-time control of power negative feedback with arbitrary waveforms |
| Energy Fluctuation | ＜±3% |
| Aiming and Positioning Method | Laser diode red light indicator (CCD optional) |
| Number of Splitting Fibers | ≤4 (Standard configuration – optical path) |
| Cooling Method | Built-in water chiller |
| Equipment Power Consumption | 4kW |
| Power Requirements | AC 220V ±15%, 50Hz / 60Hz |
| Main Unit Dimensions | 1360 × 660 × 1060 mm (L × W × H) |
The stainless steel laser welding machine is a flexible, efficient, and easy-to-use welding device used for welding various stainless steel lettering, including mirror finish, brushed finish, spherical, painted, powder-coated, solid, electroplated, gold-leaf, precision-engineered stainless steel, titanium flat, titanium spherical, precision-engineered titanium, flat copper, spherical copper, red copper, antique red copper, precision-engineered aluminum, and painted iron (stainless steel strip, iron strip, low-carbon steel strip) lettering for advertising and metal lettering. It is also suitable for the lighting and mold industries, optoelectronic communication devices, medical, electronics, copper and aluminum parts, and small-scale welding processing industries.
