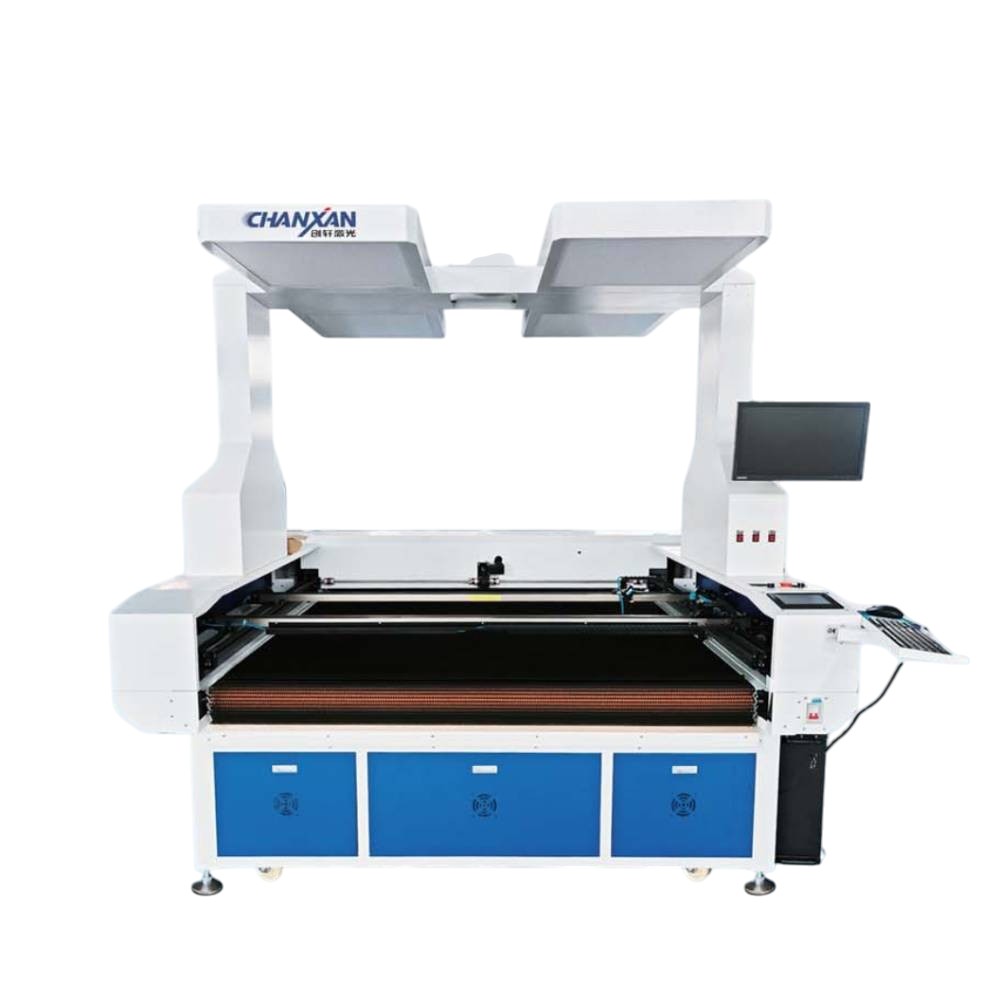

1. Using projection technology to accurately align the flying woven upper

2. Cutting speed is fast, laser head can be selected according to requirements

3. The equipment is stable, easy to operate

4. The projector has high pixel, thin lines and more accurate positioning

5. The machine has low energy consumption, is the necessary equipment for the production of flying woven uppers

6. Chanxan's exclusive technology can cut multi-layer composite midsole material

Label, embroidery, textile, clothing automatic positioning laser cutting machine, woven label embroidery fabric cutting

1.Large format table design for large size non-metallic materials. And the height of the work surface is designed to conform to   human mechanics.

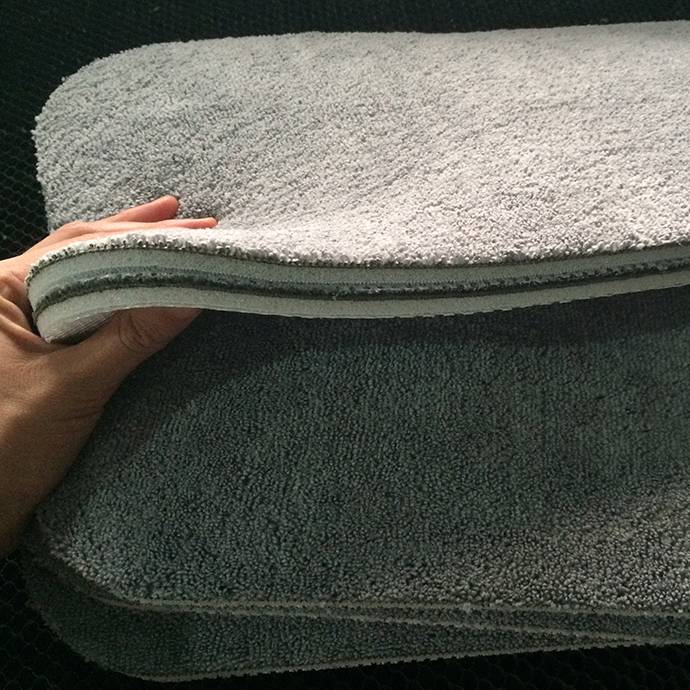

2. Machine can cut large areas of wool, artificial leather. White cloth cutting will have no yellow edges, clean cloth cutting will have no   hard edges, and fluffy cloth cutting will not burn extra furs.

3. With power, frequency and speed following function, it effectively reduces corner burrs; corner energy following technology makes   sharp angle cutting technology more perfect.

4. Combined with rich practical experience, the cutting process is continuously improved, and it is listed top at the domestic market   in the fifield of cutting of fiber-made boards (such as acoustic /PET panels).

1. High-precision servo screw motion system, tested by precision collimator during installation andaligning.

2. Excellent stop point restart function to effectively reduce the failure rate caused by improper operation.

3. Non-contact cutting with no mechanical stress to deliver niceand auto sealing cutting edge without deformation, no need for polishing.

4.  The high-power laser greatly improves the cutting and engraving speed up to 2-5 times faster, which can meet the efficient cutting of thick boards.

Exclusive process development avoids the yellowing and blackening of edges common in traditional laser cutting.

New models are equipped with a crossbeam protection device, a module guide rail device, and a high-speed servo motor.

Fast curve-cutting function: Capable of rapid, continuous cutting of any curve.

Power, frequency, and speed-following functions effectively reduce burrs at corner edges; corner energy-following technology further improves sharp corner cutting.

Software-designed path optimization schemes can be implemented as needed to shorten processing time and improve efficiency.

Cameras, stainless steel base plates, and other components can be added as needed or per industry requirements to enhance processes or efficiency.

1. Using projection technology to accurately align the flying woven upper

2. Cutting speed is fast, laser head can be selected according to requirements

3. The equipment is stable, easy to operate

4. The projector has high pixel, thin lines and more accurate positioning

5. The machine has low energy consumption, is the necessary equipment for the production of flying woven uppers

6. Chanxan's exclusive technology can cut multi-layer composite midsole material

 Multi-head cutting, high speed and high efficiency Chanxan exclusive design cutting aircraft board shoe material is particularly efficient

 The equipment is stable and easy to operate.

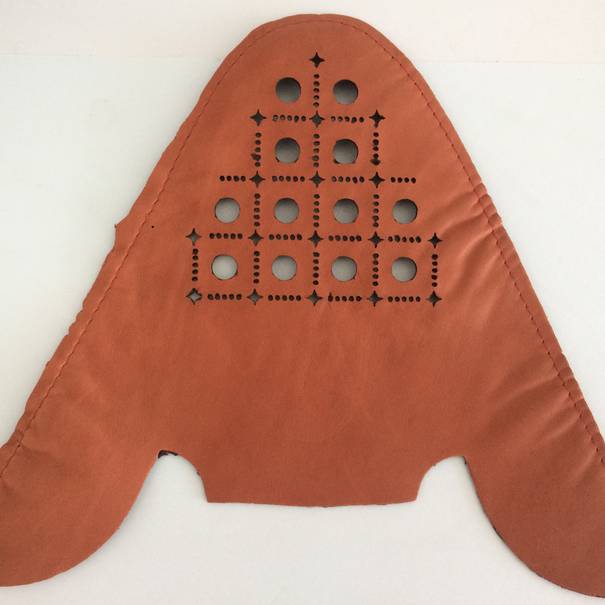

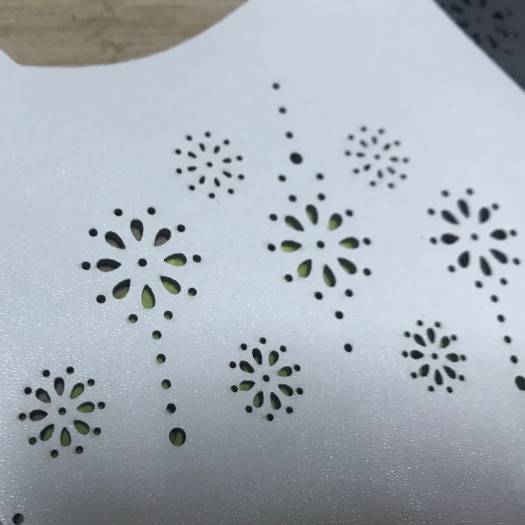

 The shoe material is cut and cut beautifully, and the hollowing out and the small hole are fast.

 The whole machine has low energy consumption and the equipment is cost-effective.
