FIBER LASER CUTTING MACHINE 1000W FOR PIPE

Publish Time: Jan. 07, 2020

【Description】:

Hey! Are you in trouble with shaped tube cutting or other aspects? Fortunately, we happen to have a product that can solve your problem. Let us have a look.

Product Introduction

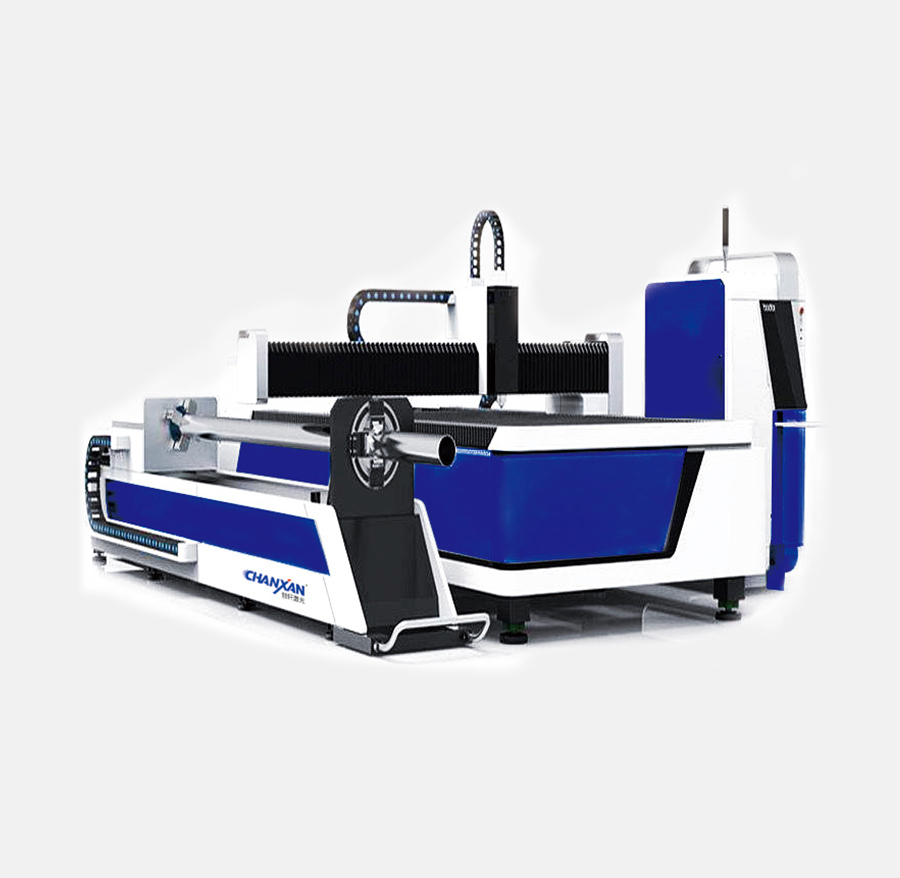

(Fiber laser  cutting machine 1000W for  pipe)


■ Tube welding machine base.

■ Pneumatic front and rear Chucks with 90mm tailings

■ 1000W Raycus laser source

■ Raytool laser head

■ Cyptube controller.

FIBER LASER CUTTING MACHINE 1000W FOR PIPE

■  10mm thick tube forming.

■  Italian COLGAR machine milling  boring.

■  Machine weight 3.5 tons.

■  Machine error accuracy 0.02mm.

■  With 24 hours quenching process.

■  Moving speed 60m/min.

■ Pneumatic front and rear Chucks.

■ Schneider servo motor, rotating speed 150 rpm.

■ Tube shape: round, square, rectangle, oval

■ Tube diameter (round diameter 16-160mm)

■ The shortest remaining material 90mm

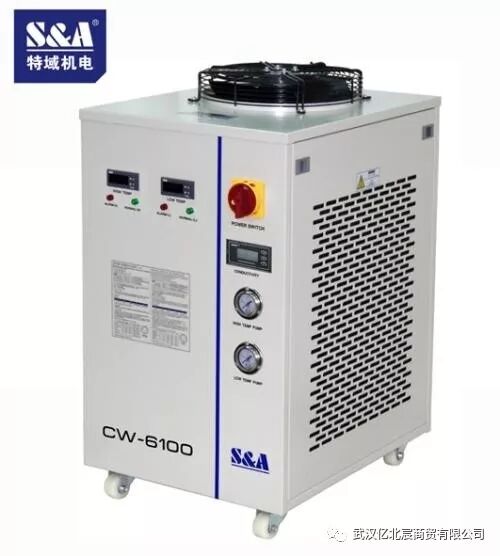

Water Chiller HANLI or S&A



When laser head cut metals, there will produce some hot energy in laser head and laser device. Water chiller is for cooling this two parts. Laser head part, mainly cooling the mirrors.


Temperature in the water chiller is auto adjustment, mainly set up with 25 degree around.

Water in chiller should be pure water.(one week change one time)

Filter (3 month change one time)


Raycus 1000w laser source


Raycus laser has higher electro-optical conversion efficiency (>30%), higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting.

This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.


■  High electro-optical conversion efficiency

■  Altitude stress-resisting capacity

■  Sheet cutting efficiency

■  Customized output fiber length

■  Maintenance-free operation

■  Wide modulation frequency range
