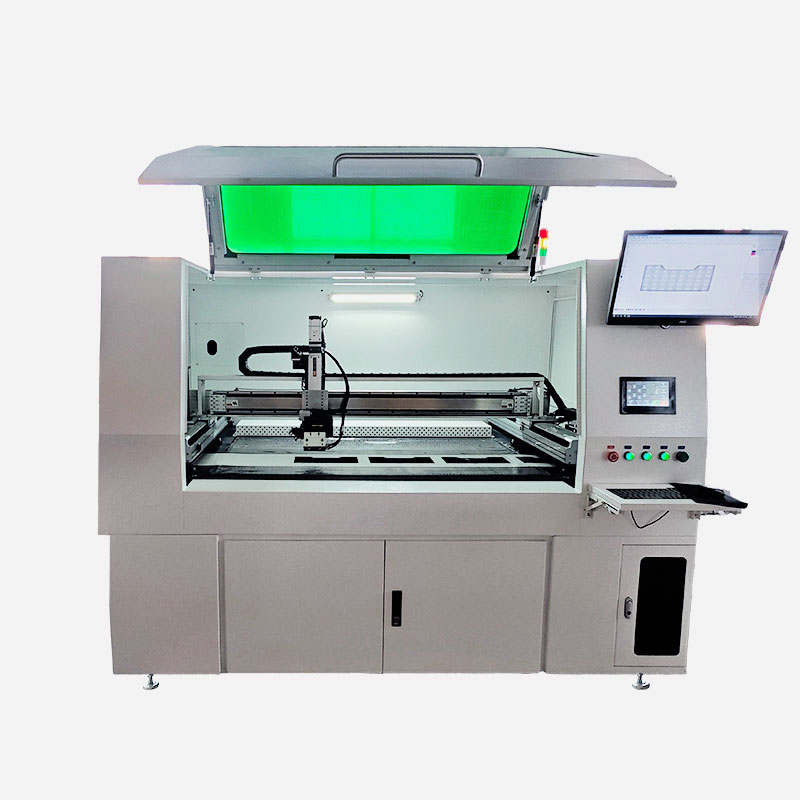

CW/X-150SF
Optical film laser cutting machine, electronic film laser drilling machine, light guide film and light transmission film drilling and cutting equipment
1. Sheet metal frame
2. Imported 350W RF laser, long service life and high stability;
3. Original American II VI optical lenses, stable beam transmission, and excellent spot effect;
4. Linear motor for galvanometer cutting head movement, smooth operation, high precision, and high speed;
5. Roll-to-roll automatic feeding, precise feeding.
| Parameter / Model | CW/X-150SF |
|---|---|
| Product Name | CO₂ Laser Film Perforating & Cutting Machine |
| X/Y Axis Travel | 1400 / 750 mm |
| Drive System | Linear Motor |
| Machine Weight | 1000 kg |
| Repeat Positioning Accuracy | ±0.03 mm |
| Rated Voltage | AC 220V ±5%, 50Hz |
| Rated Power | 3.5 kW |
| Laser Type | RF Laser |
| Laser Power | 350 W |
| Laser Wavelength | 10.6 μm |
| Ambient Humidity | ≤75% RH |
| Ambient Temperature | 10°C–35°C |
| Machine Dimensions (L × W × H) | 4280 × 1650 × 1450 mm |

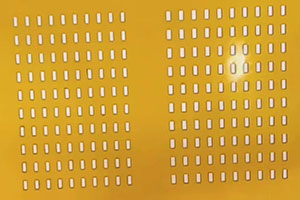

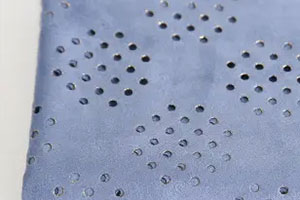

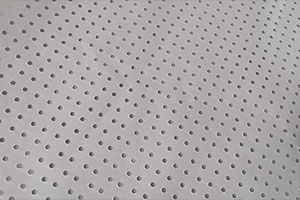

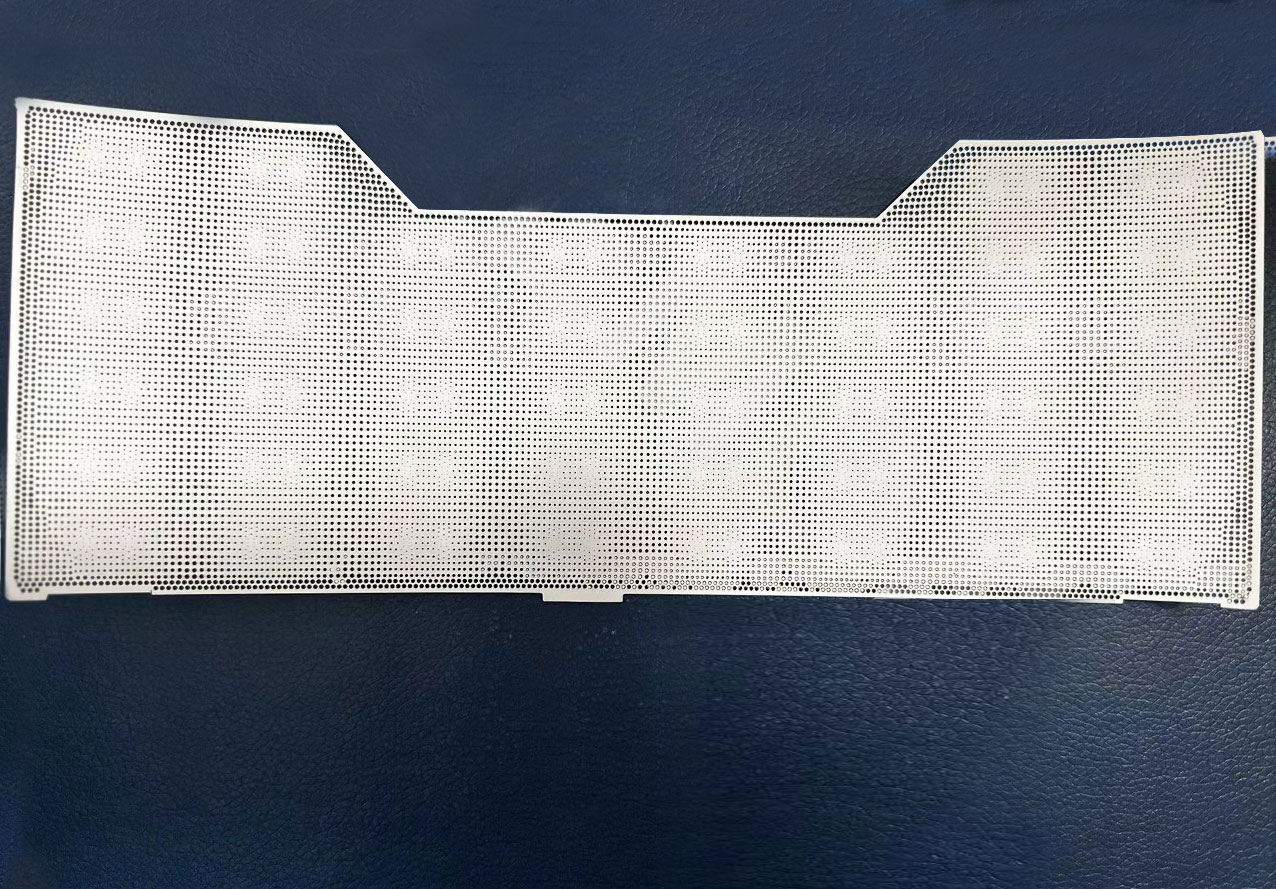

Suitable for precision cutting and drilling of various optical and electronic thin films, such as light guide films, screen protectors, electronic paper, polarizers, and light shields.
Applications

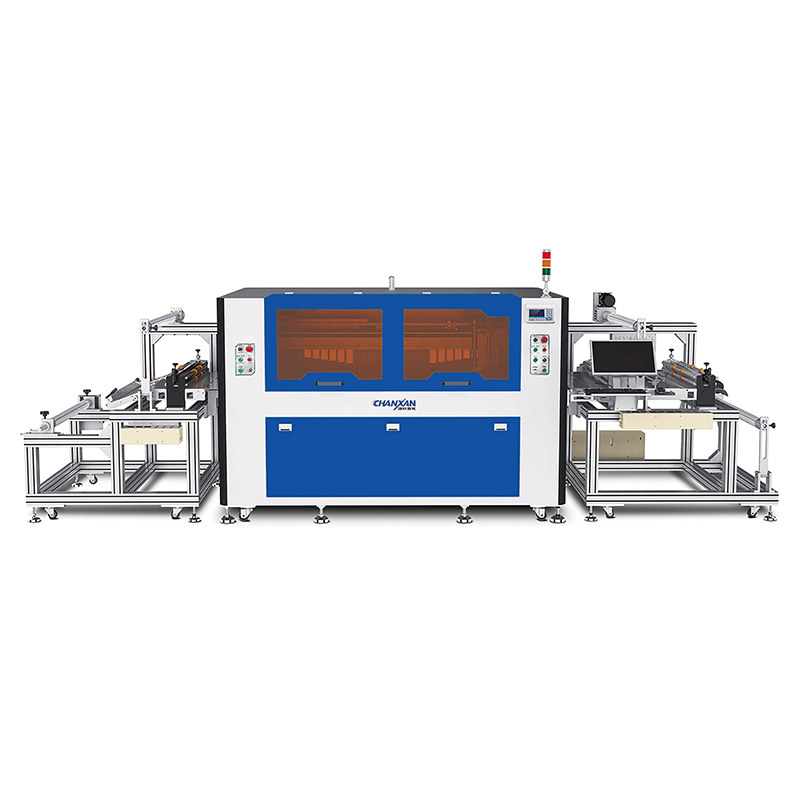

Subscriber：Custom CO₂ Laser Film Perforating & Cutting Machine
