CX-N-012

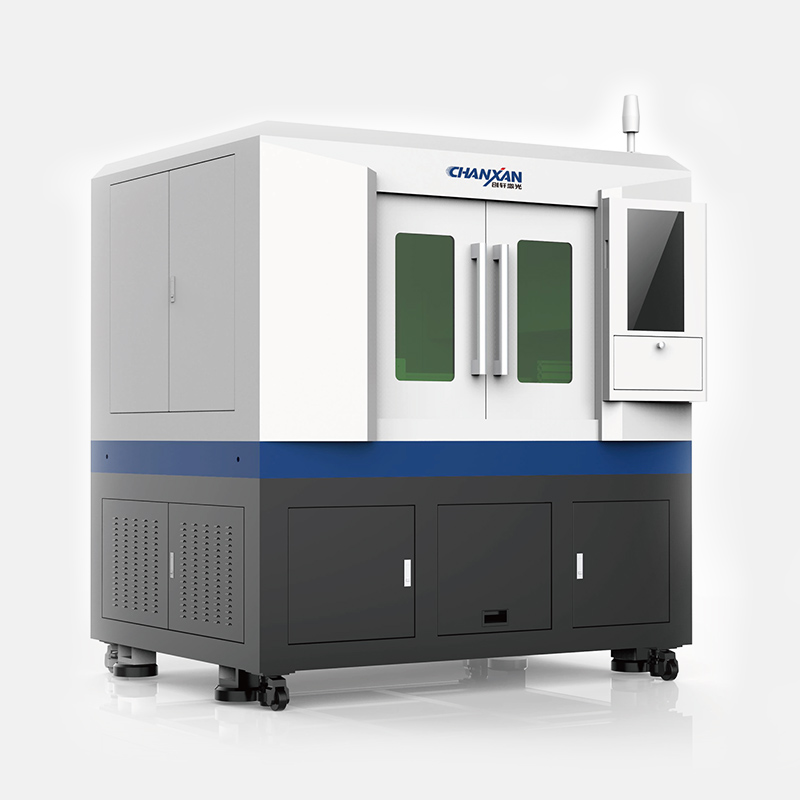

This equipment is mainly used for scribing, drilling, and cutting on ceramic materials such as alumina, aluminum nitride, and zirconium oxide. Combined with a loading/unloading system and image recognition function, it achieves automated processing.
A high-precision fiber laser solution specifically engineered for advanced ceramic materials. Delivering exceptional accuracy and high-speed processing for electronics, semiconductors, and precision manufacturing.
Features a wide range of adjustable drilling diameters with high-speed processing efficiency exceeding 15 holes per second.
Advanced image capture target recognition; seamlessly integrates with automated loading/unloading for full-process automatic processing.

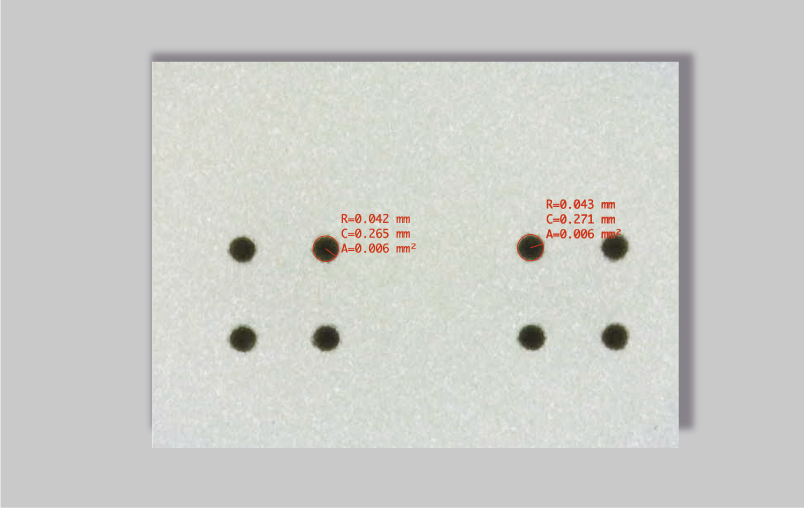

Exceptional hole quality with roundness exceeding 85%, ensuring consistent performance for micro-component integration.
Advanced optical control system achieves an ultra-low drilling taper of less than 15μm, ideal for high-density ceramic substrates.
Designed for high-precision drilling, scribing, and cutting of advanced ceramic materials, this system is widely implemented in electronics, semiconductor packaging, power devices, and precision industrial manufacturing.

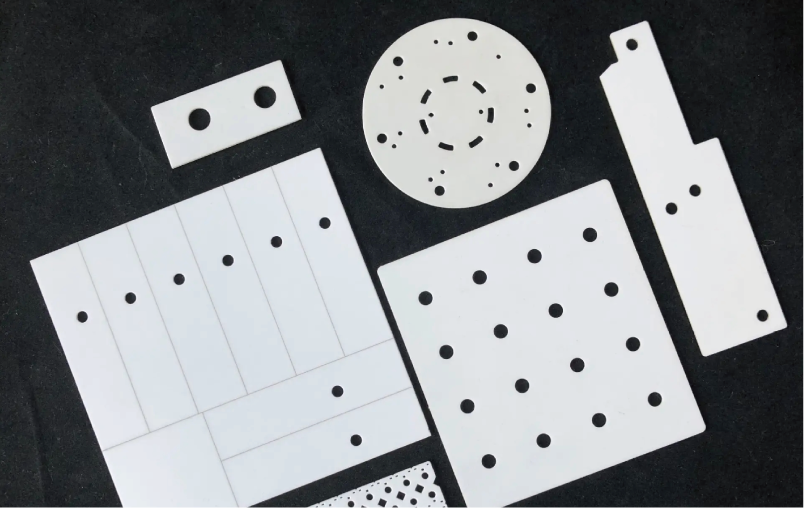

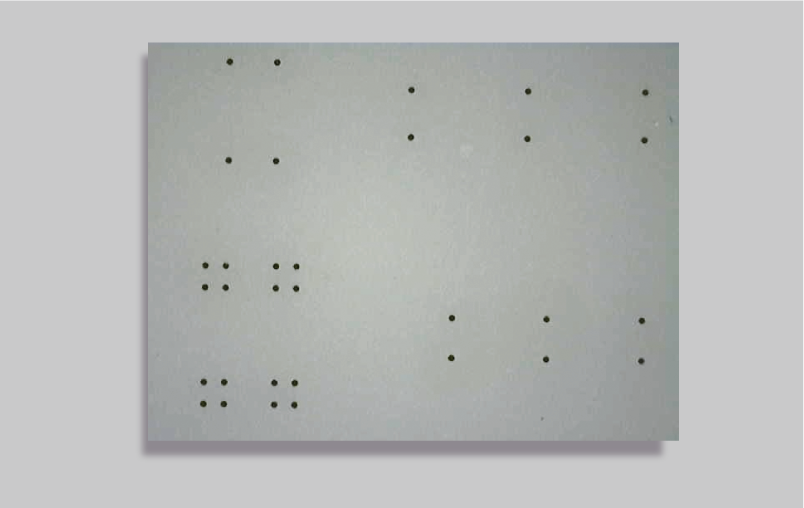

Alumina (Al₂O₃) substrate drilling
Aluminum Nitride (AlN) processing

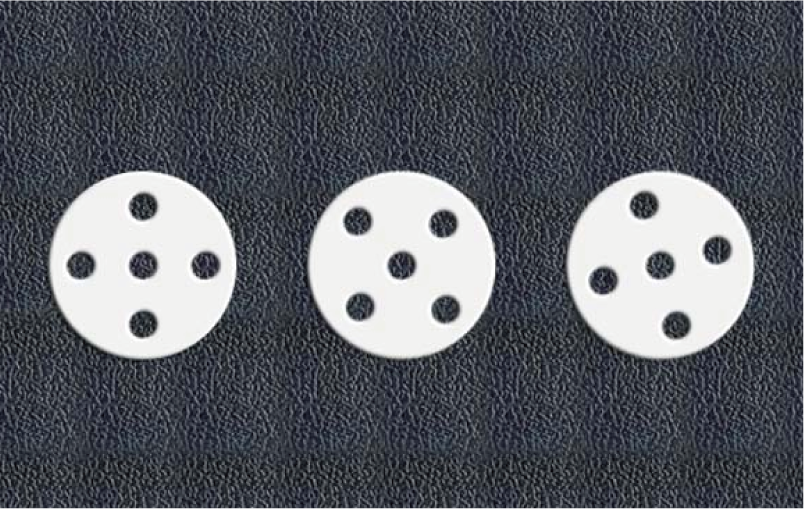

Zirconia ceramic precision machining
DBC / DPC substrate manufacturing
IGBT module ceramic substrates
Power semiconductor insulation
Thermal management components
Electronic packaging drilling
LED ceramic baseplate drilling
Precision ceramic hole processing
Ceramic microstructure machining
Alumina (Al₂O₃), Aluminum Nitride (AlN), Zirconia (ZrO₂), technical ceramics, precision ceramic substrates, and other advanced ceramic materials.
| Parameter Item | Specifications (CX-N-012) |
|---|---|
| Model Name | Ceramic Laser Drilling Machine |
| Laser Type | High-Performance Fiber Laser |
| Laser Wavelength | 1060 nm / 1080 nm |
| Laser Power | ≥150W |
| Processing Area (X × Y × Z) | 300 × 500 × 50 mm |
| Cutting & Marking Speed | ≥200 mm/s |
| Drilling Efficiency | > 15 Holes / Second |
| Hole Geometric Quality | Roundness > 85% | Taper < 15 μm |
| Positioning Accuracy | ±0.025 mm |
| Vision Positioning | Advanced Image Recognition System |
| Automation Function | Optional Automatic Loading/Unloading System |
| Operating Voltage | AC380V ±10%, 50Hz / 60Hz |
| Machine Dimensions | 1900 × 1600 × 1850 mm |
Empowering global manufacturing with 14+ years of expertise, dual CE & ISO certified quality, over 100 national patents, and a comprehensive Technical Training Service designed for your operational success.
Systematic Training: Comprehensive full-process skill coverage.
Expert Support: Continuous project follow-up by senior engineers.
Multiple Formats: Flexible learning modes to maximize operational efficiency.
Outcome Driven: Empowering clients from "knowing" to "mastering" technology.
24H Fast Response: Technical diagnosis and solutions within 24 hours.
Warranty Policy: 1-year machine warranty with lifetime technical support.
Global Parts Supply: Rapid delivery of original parts via global network.
Lifecycle Care: From installation to long-term maintenance and software upgrades.
In-depth analysis of your specific material and performance requirements.
Precision laser sampling to verify the feasibility of the technical solution.
Bespoke manufacturing under ISO9001 quality management systems.
Final testing, professional wooden packing, and secure global shipment.
We are seeking professional partners to expand our presence in the global industrial laser market. Scale your business with Chanxan's high-end technology and manufacturing strength.
Become an AgentApplications

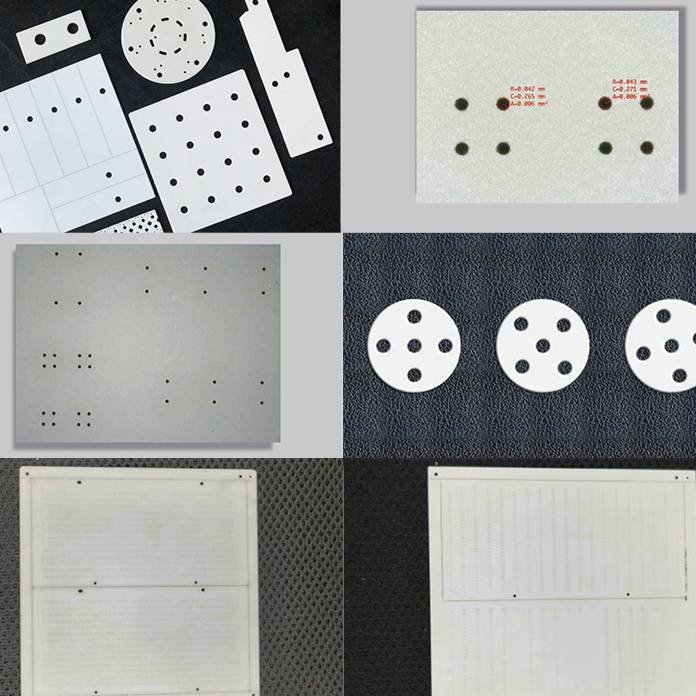

Subscriber：Fully Automatic Fiber Laser Ceramic Drilling Machine
