UV Nanosecond Laser Cutting Machine for High-Precision Graphene Thermal Pad Processing

Challenges in Conventional Graphene Thermal Pad Manufacturing

Traditional die‑cutting for graphene thermal pads often causes edge burrs, material extrusion deformation, and high mold costs for small‑batch custom orders. Thin thermal conductive films are also prone to thermal damage and stress cracks during mechanical processing. These issues directly lower production yield and slow down new product iteration for thermal interface material manufacturers.

UV Nanosecond Laser Cutting Solution for Thermal Conductive Materials

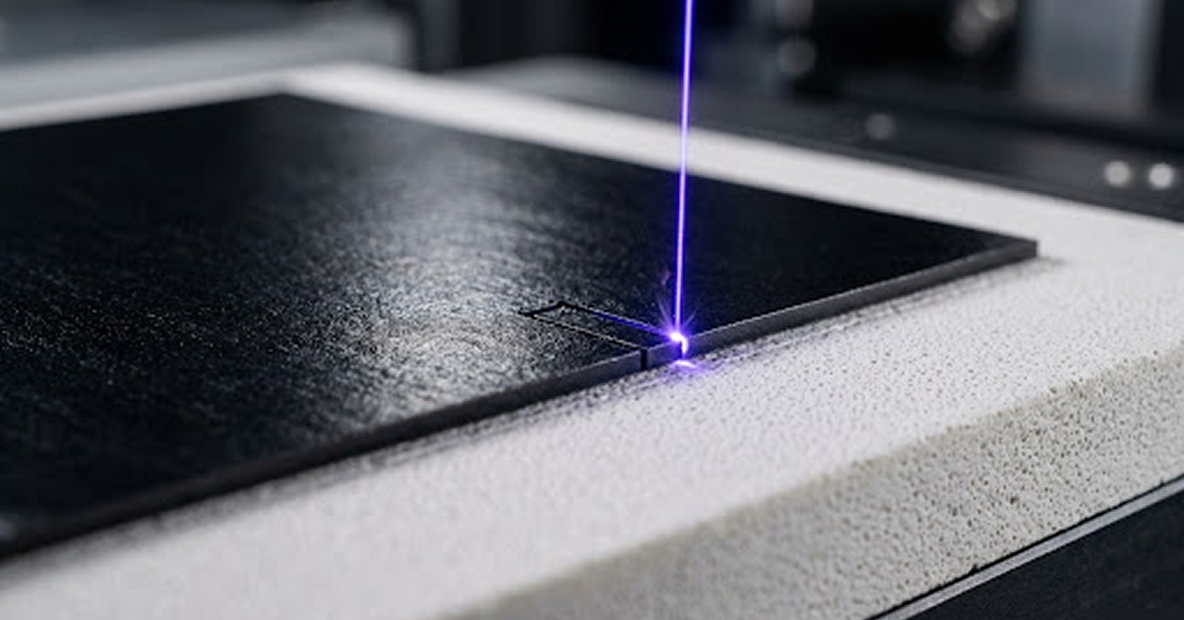

Chuangxuan Laser launches the precision UV nanosecond laser cutting machine, optimized for graphene thermal pad and flexible thermal film processing. The non‑contact cold ablation process avoids physical stress on thin materials, delivering consistent cutting quality for both prototype development and mass production. It serves as an ideal upgrade option for die‑cutting factories and electronic material processors.

Core Advantages and Key Specifications

This laser system addresses core pain points of thermal material processing with targeted technical design:

‑ Non‑contact cold processing eliminates thermal deformation and edge burrs, preserving the original thermal conductivity of graphene materials.

‑ High‑resolution CCD visual positioning supports complex custom patterns, suitable for diversified small‑batch production without extra mold cost.

‑ Marble platform with linear motor drive ensures long‑term processing stability and reduces equipment maintenance frequency.

Core technical parameters:

‑ Laser source: UV nanosecond pulse laser

‑ Maximum processing speed: ≤3000mm/s

‑ Positioning accuracy: ±1μm

‑ Maximum processing thickness: 3mm

For the full technical specification sheet and customizable configuration options, visit the product detail page.

Application Scenarios & FAQ

This laser cutting system is widely adopted by thermal interface material factories, electronics component manufacturers, and professional die‑cutting service providers. It is compatible with graphene thermal pads, graphite films, PI‑based thermal conductive films, and other thin non‑metal thermal materials. It mainly serves thermal management scenarios in automotive electronics, semiconductor 3C devices, and aerospace industrial sectors.

Can this machine process other thermal conductive materials besides graphene?

Yes, it is also compatible with natural graphite films, synthetic graphite sheets, PI‑based thermal films and other flexible thin non‑metal thermal materials.

Do we need to make molds for custom thermal pad shapes?

No mold is required. You only need to provide digital processing drawings to complete custom pattern cutting, which greatly shortens the sample development and verification cycle.
