CX-N-103

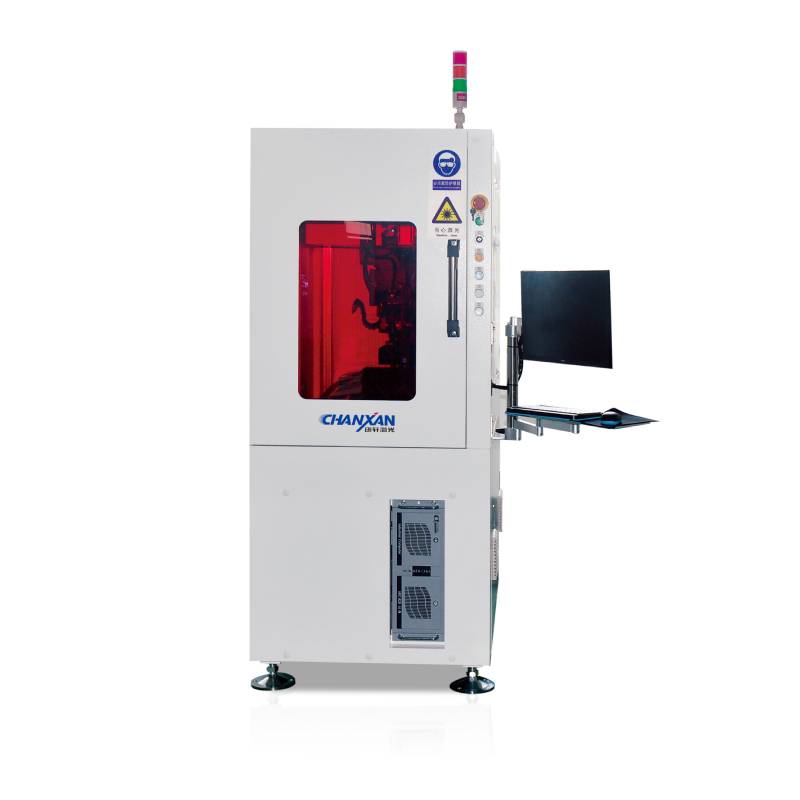

The Precision Green Laser Glass Drilling Machine is engineered for high-precision drilling and micro-processing of glass materials, delivering exceptional accuracy and stable performance with advanced 532 nm green laser technology. Designed for delicate and brittle materials up to 8 mm thickness, the system achieves drilling and cutting accuracy of ≤ ±0.015 mm, making it ideal for precision applications requiring clean edges, minimal thermal impact, and superior consistency. Featuring water cooling, automated operation, and precision positioning, it provides an efficient solution for high-end glass manufacturing.
A high-precision 532nm green laser solution engineered for sophisticated glass processing. Designed to overcome the limitations of traditional methods, providing exceptional flexibility and quality for encoders and optical components.
Utilizing 532nm green laser technology overcomes low efficiency and high breakage rates of traditional methods, providing a more flexible and effective processing approach.
Leverages high-speed laser processing combined with a high-precision XY motion platform to achieve micron-level accuracy and rapid throughput.
Significantly reduces material waste and breakage compared to traditional techniques, expanding the scope and possibilities for advanced glass applications.

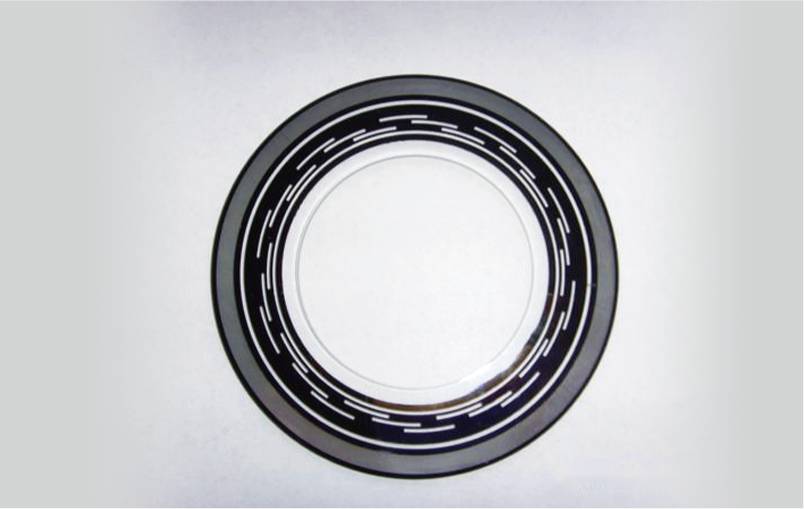

Specifically optimized for the precision cutting and drilling of glass encoders and intricate optical components with clean, burr-free results.

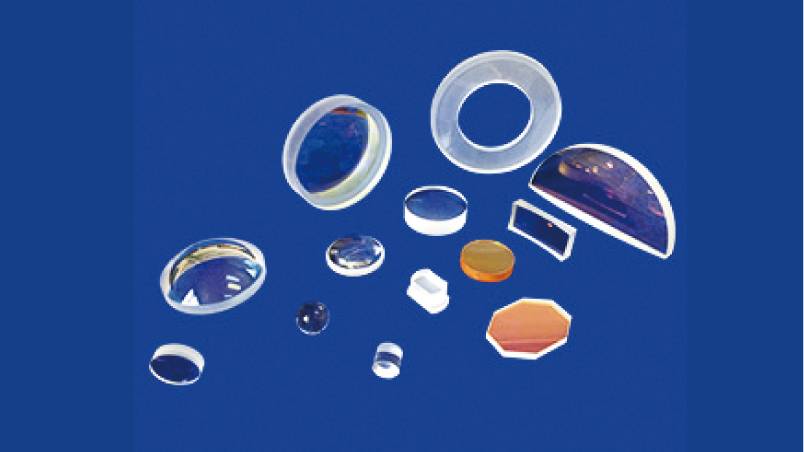

Excellent performance in the precision cutting and drilling of high-end components such as glass encoders and precision optical elements.

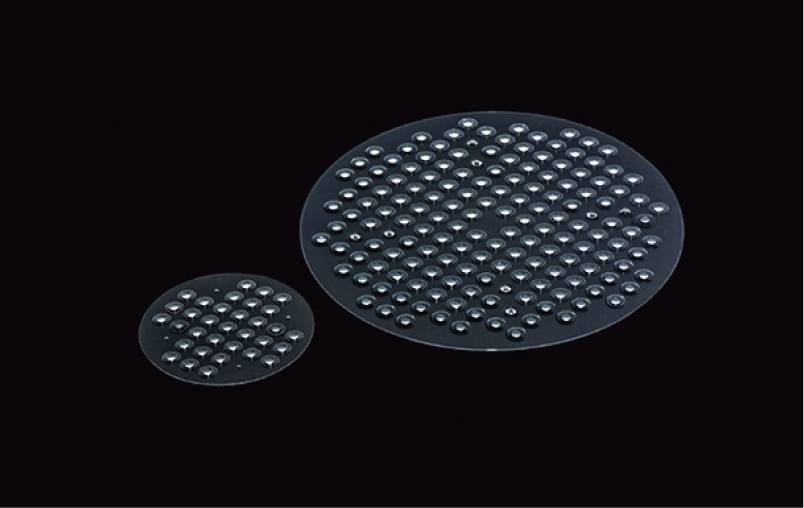

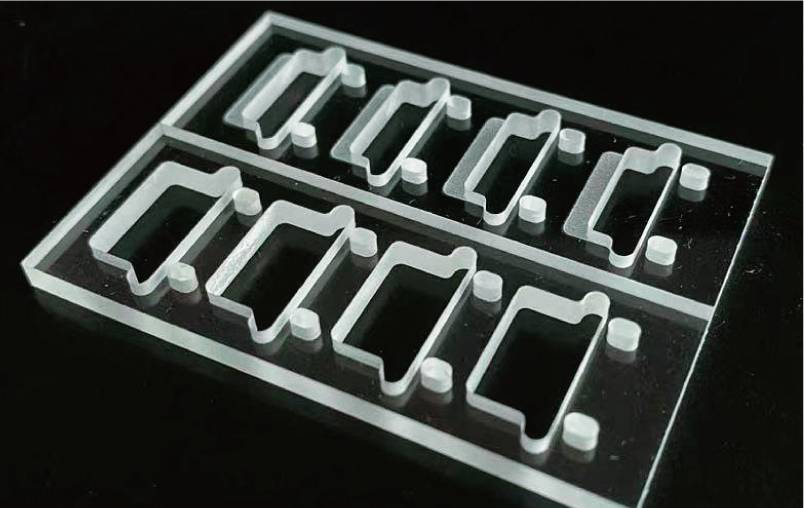

Diverse Glass Processing Capabilities| Parameter Item | Specifications (CX-N-103) |
|---|---|
| Model | CX-N-103 |
| Laser Type | High-Stability Green Laser |
| Laser Wavelength | 532 nm |
| Laser Output Power | > 30W |
| Glass Processing Thickness | ≤ 8 mm |
| Drilling / Cutting Accuracy | ≤ ±0.015 mm |
| Cooling Method | Integrated Water Cooling |
| Power Supply | AC 220V ±10%, 50Hz / 60Hz |
| Total Machine Power | Approx. 3 kW |
| Machine Weight | Approx. 900 kg |
| Machine Dimensions | 800 × 1300 × 1900 mm |
Empowering global manufacturing with 14+ years of expertise, dual CE & ISO certified quality, over 100 national patents, and a comprehensive Technical Training Service designed for your operational success.
Systematic Training: Comprehensive full-process skill coverage.
Expert Support: Continuous project follow-up by senior engineers.
Multiple Formats: Flexible learning modes to maximize operational efficiency.
Outcome Driven: Empowering clients from "knowing" to "mastering" technology.
24H Fast Response: Technical diagnosis and solutions within 24 hours.
Warranty Policy: 1-year machine warranty with lifetime technical support.
Global Parts Supply: Rapid delivery of original parts via global network.
Lifecycle Care: From installation to long-term maintenance and software upgrades.
In-depth analysis of your specific material and performance requirements.
Precision laser sampling to verify the feasibility of the technical solution.
Bespoke manufacturing under ISO9001 quality management systems.
Final testing, professional wooden packing, and secure global shipment.
