CXD-1270
Comprehensive solutions for ultrafast laser drilling equipment for various brittle materials such as optical glass, quartz, sapphire, and ceramics; capable of precision processing of micro-holes, irregularly shaped holes, etc., with a wide range of applications.
A comprehensive ultrafast laser solution for precision drilling and cutting of brittle materials. Utilizing a 532nm solid-state laser to achieve micro-level accuracy with minimal thermal impact on optical glass, sapphire, and technical ceramics.
Utilizes advanced laser non-contact processing, ensuring zero mechanical stress and causing no hard damage or micro-cracks to the delicate product surface.
Features water-free processing that is environmentally friendly and pollution-free. The system requires no consumables, significantly lowering long-term operational costs.
Engineered for 24/7 continuous industrial operation, delivering excellent long-term stability and consistent processing quality for high-volume manufacturing.
Combines high processing speed with minimal edge chipping and low power consumption, maximizing throughput while maintaining superior edge finishing.
Comprehensive solutions for ultrafast laser drilling equipment for various brittle materials. Capable of precision processing of micro-holes, irregularly shaped holes, and complex contours with a wide range of industrial applications.
Compatible MaterialsOptical Glass
Quartz
Sapphire
Technical Ceramics
Brittle Materials
Specialty Composites

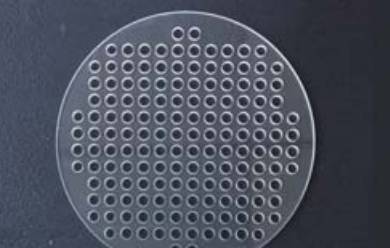

Micro-hole arrays, high-aspect-ratio drilling, precision scribing, irregular contour cutting, and surface micro-structuring for high-tech industries.
| Parameter Item | Specifications (CXD-1270) |
|---|---|
| Model | CXD-1270 |
| Laser Type | Advanced Solid-State Laser |
| Laser Wavelength | 532 nm (Green Light) |
| Output Power | 60 W |
| Processing Area | 1200 × 700 mm |
| Cutting Speed (1mm White Glass) | 40 mm/s |
| Reposition Accuracy | ±0.1 mm |
| Cooling System | Integrated Water Cooling |
| Working Voltage | AC 220V ±10%, 50Hz / 60Hz |
| Total Power Consumption | 10 kW |
| Machine Weight | 1000 kg |
| Machine Dimensions | 1880 × 1660 × 1800 mm |
