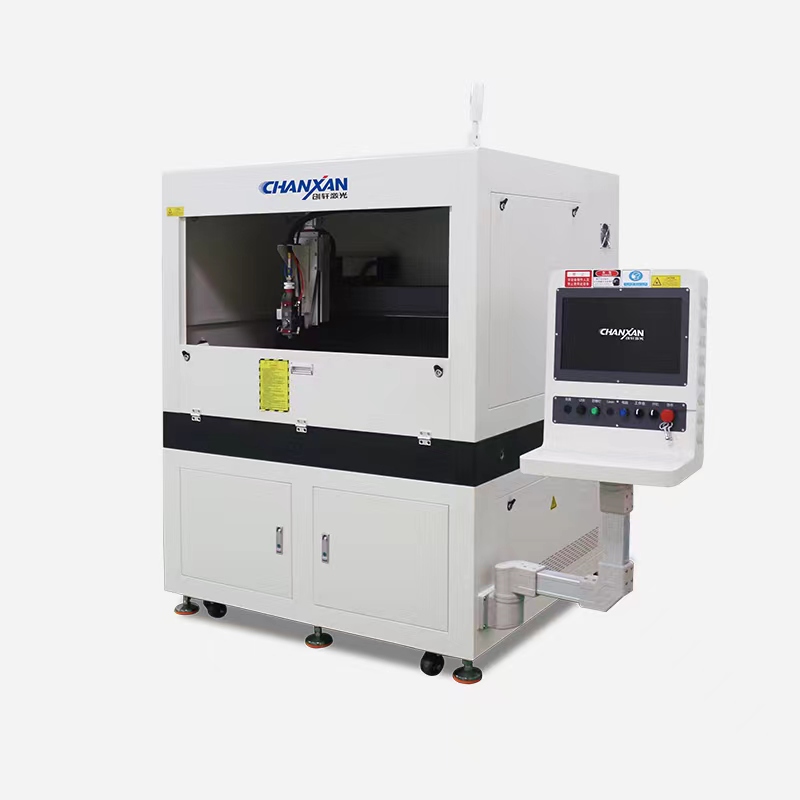

SG Model
Capillary laser tube cutting machine, stainless steel precision rolled tube drilling machine, medical tube cutting and grooving machine.
A high-precision fiber laser solution designed for the medical and precision engineering sectors. Engineered for exceptional accuracy in processing medical capillaries, stents, and complex tube geometries.
Features flexible function combinations, supporting personalized function customization from the component level to the system level for innovative designs.
Advanced system supporting both high-precision laser cutting and drilling, ideal for complex micro-engineering on various metal tube types.
Offers continuous automatic feed processing and optional automatic pipe loading/unloading solutions to maximize production efficiency and minimize downtime.
Combines an exquisite industrial appearance with an intuitive interface and simple operation, reducing the learning curve for operators.
Achieves a positioning accuracy of ±10 μm and a minimum kerf width of 80 μm, meeting the stringent requirements of medical-grade component manufacturing.

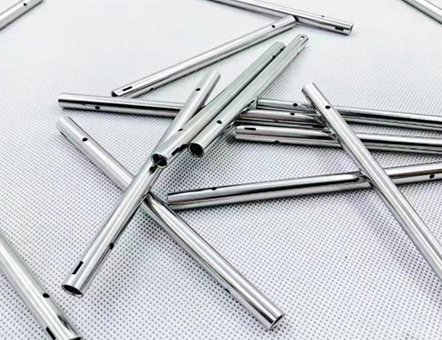

The SG series is optimized for cutting, drilling, and grooving various equal-diameter tubes, deformed tubes, and semi-finished tubes, with a primary focus on high-precision medical device manufacturing.

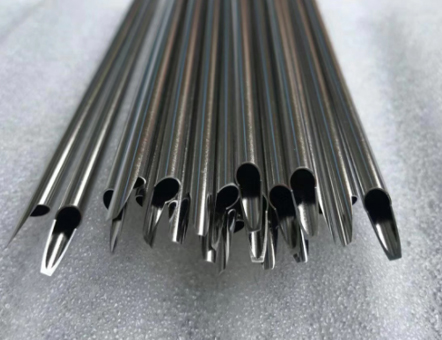

Hemodialysis machine cannulas
Endoscope & dental cannulas
Sampling needles & photomultiplier tubes
Medical-grade capillaries and stents
Stainless Steel (304, 316L)
Nickel-Titanium (Ni-Ti) Alloys
Cobalt-based & Magnesium Alloys
Aluminum (Al) & Pure Iron
| Parameter Item | Specifications (SG Series) |
|---|---|
| Product Name | Metal Tube Laser Cutting Machine |
| Model | SG |
| Laser Type | Precision Fiber Laser |
| Processing Range | 0–200 mm |
| Positioning Accuracy | ±10 μm |
| Minimum Kerf Width | 80 μm |
| Maximum Operating Speed | 200 mm/s |
| Power Supply Requirement | AC 220V ±10%, 50Hz |
| Machine Dimensions | 1200 × 1500 × 1750 mm |
Empowering global manufacturing with 14+ years of expertise, dual CE & ISO certified quality, over 100 national patents, and a comprehensive Technical Training Service designed for your operational success.
Systematic Training: Comprehensive full-process skill coverage.
Expert Support: Continuous project follow-up by senior engineers.
Multiple Formats: Flexible learning modes to maximize operational efficiency.
Outcome Driven: Empowering clients from "knowing" to "mastering" technology.
24H Fast Response: Technical diagnosis and solutions within 24 hours.
Warranty Policy: 1-year machine warranty with lifetime technical support.
Global Parts Supply: Rapid delivery of original parts via global network.
Lifecycle Care: From installation to long-term maintenance and software upgrades.
In-depth analysis of your specific material and performance requirements.
Precision laser sampling to verify the feasibility of the technical solution.
Bespoke manufacturing under ISO9001 quality management systems.
Final testing, professional wooden packing, and secure global shipment.
