Automatic webbing laser cutting machine and webbing hole punch

Roll Feeder Laser Cutter for Webbing, Ribbon, Velcro, Woven Label

 Last  Day Biggest Promotion

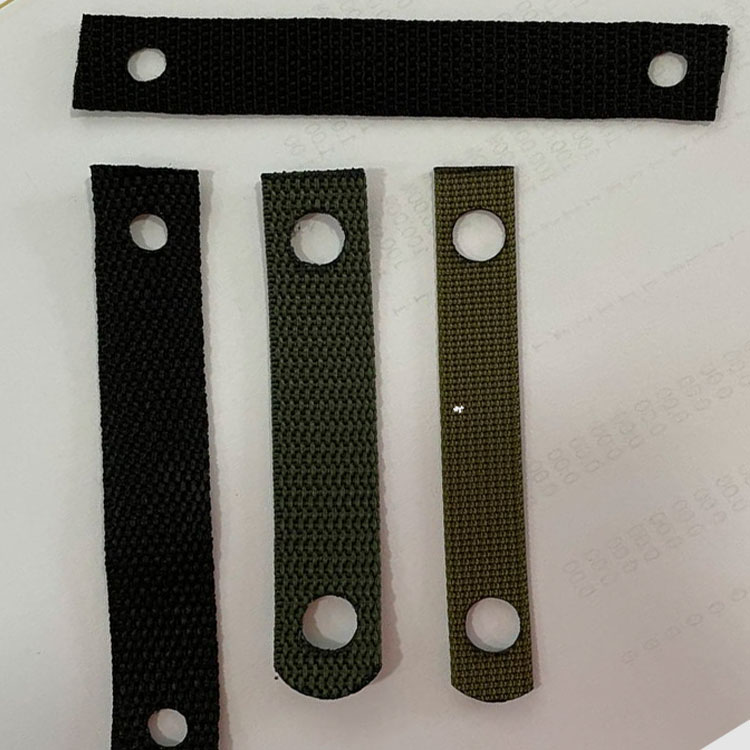

Suitable for Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap and other knitting materials.

 Automatic and continuous cutting of materials in rolls (the width within 200mm)
 Roll feeder with conveyor

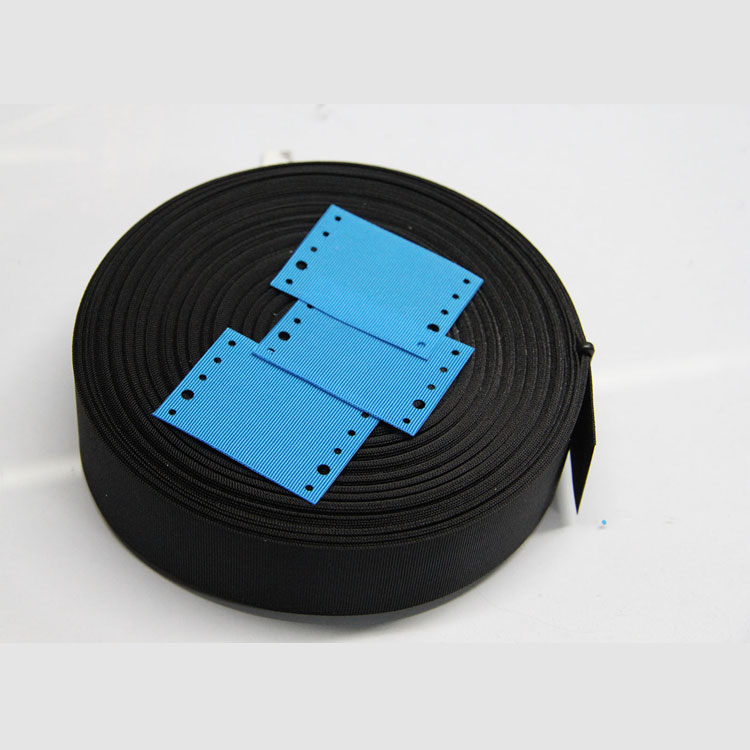

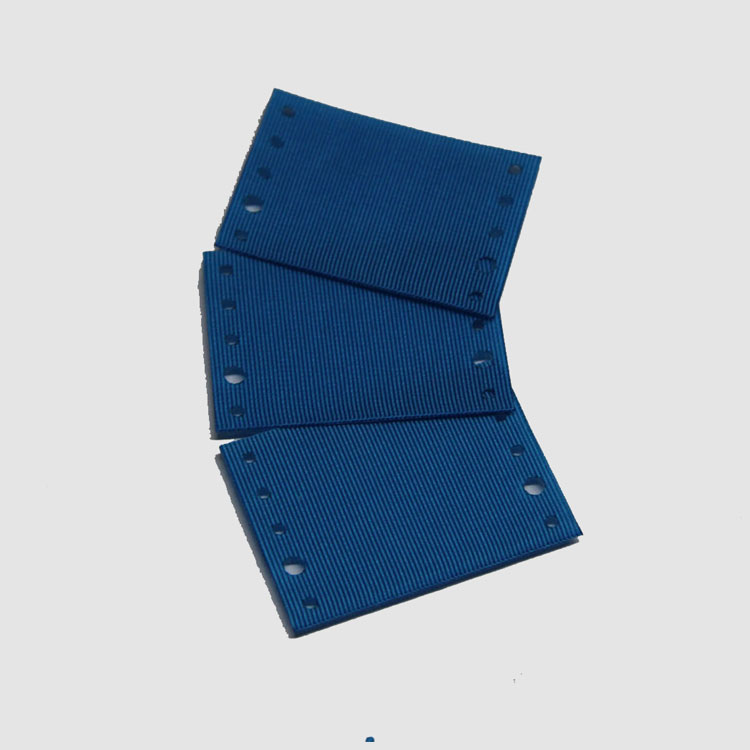

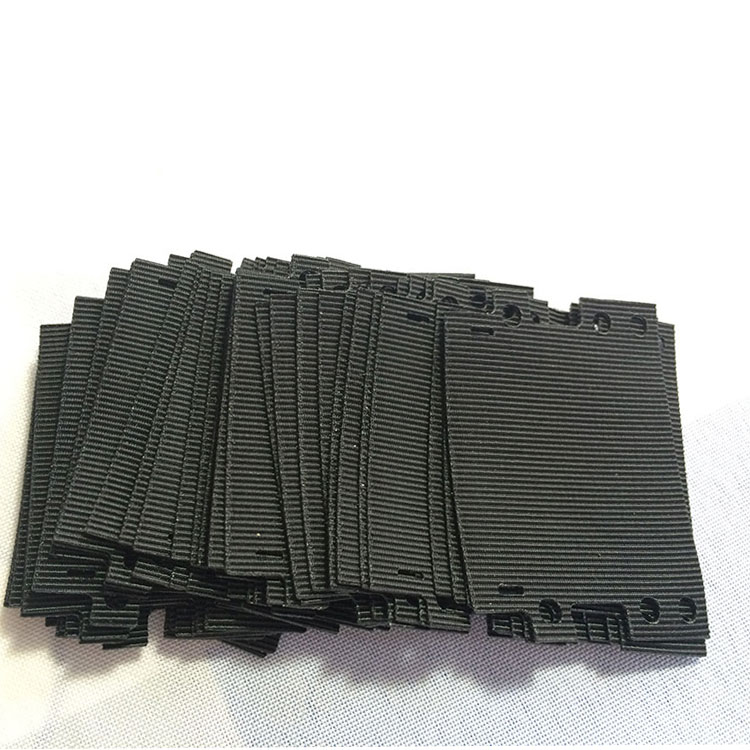

 Laser cutting materials from the rolls to pieces
 Laser power from 65 watts to 150 watts
 CCD camera for automatic recognition of labels



+86 18361445350

wmb@chanxan.com

  • Product Description
  • Product Characteristics
  • Performance Parameter
  • Application Field

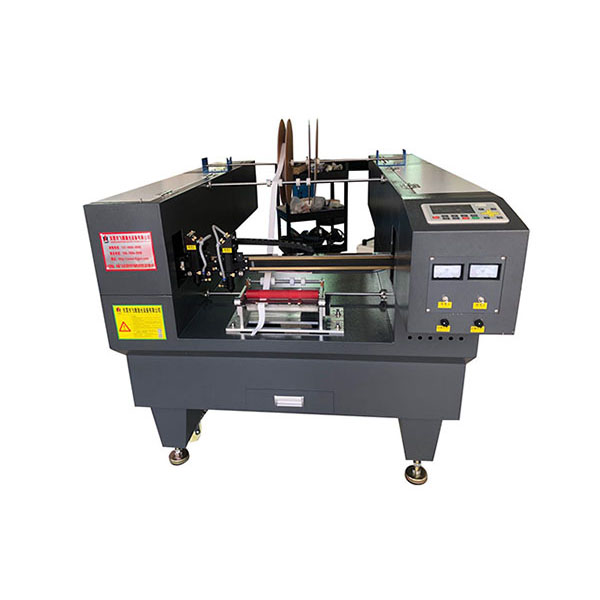

Auto feeding webbing laser cut machine wiht camera is with auto feeding webbing cutting platform, suitable for cutting long roll webbing, such as printed webbing、strap、 seat belt、nylon webbing、woven label、polyester webbing、leather belt、Velcro, tapes、pvc webbing,etc.


Automatic webbing laser cutting machine and webbing hole punch



Features:of 80W plastic single head co2 laser cutting machine

1、It adopts the top grade advanced CO2 laser tube, with the quality of delivering 24 hours consistent laser power output and it also has high ability of anti-interference.

2、Adopting the three-dimensional reflection system and six-balanced out ward or in ward  sliding guiderail makes the laser beam moves consistently and ensures the high speed and precision of cutting and engraving.

3、Fast curve cutting function: any curves can be cut fast and continuously. The movement of laser head draws a perfect arc just like the top grade racing cars run.

4、It is integrated with LCD and DSP intelligent motherboard; offline work and USB data transmitting are available, no extra computer needed.

5、The customized maehines with different size are available.



Configuration: of laser cutting machine prices

1)Motor: Three phase subdivision step motor and driving system from LEADSHINE.

2)LCD, DSP intelligent main board; work offline, can transfer the data by USB cable, U-disk, Net cable, without extra computer.

3)Optional: 60-80-100-130-150W-180W laser tube.

4)Honeycomb plate/ Square bottom plate/blade strip plate

5)Outward sliding guide rail, inward sliding guide rail, integrated frame structure

6)Original laser mirror from  II-VI INFRARED, USA, adjustable laser head

7)Imported type original transmission belt(Tank chain).

8)Centrifugal fan.

9)Three protection function: safety protection, filter protection, water protection.

10)Optional: Automatic circulation cooling water tank.

11)Give freely compressed magnetic pump.

12)Give freely Chanxan copyrighted software 1set, free upgrade





Applicable Industries:of cnc laser cutting machine

Outdoor products, pet products, military security, luggage, clothing, shoes and hats, gifts and other industries.




Applicable Materials: of foam Laser Cutting Machine

Polyester webbing, nylon webbing, polyamide, blended fabrics, leather belt, seat belt, woven label,strap and other knitting materials.




Technical Parameters:of  co2 laser cutting machine

Laser Capacity

60W 80W 100W 130W 150W 300W 450W 600W CO2 glass tube

Processing Area(mm)

900*600 1000*800 1200*800 1300*900 1400*800 1600*800 mm

Positional Accuracy

±0.05mm

Working table

Special webbing cutting platform

Cutting Speed

0-36m/min

Max Traverse Speed

0-64m/min

Type of belt drive

X-direction outward sliding or inward sliding guide rail+3m synchronous belt; Y- direction outward sliding or inward sliding guide rail+3m synchronous belt

Air exhaust

Big capacity lower air exhaust

Graphic Format Supported

CDR,BMP,PLT,PCX,AI,DXF,DST,GIF, etc.

Optical system

Φ25mm Molybdenum reflector;  Φ25mm Silicon reflector;  Φ20mm, focal length50.8 focusing mirror
