Chanxan ultra-fast laser solutions for sapphire processing. Precision crack-free cutting, micro-hole drilling, and contouring for sapphire wafers, optical lens covers, and LED substrates.

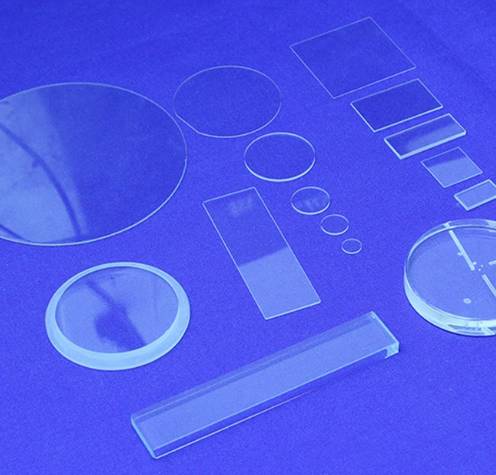

Sapphire's hardness makes it valuable for camera lens covers, LED substrates, and watch covers — and makes it one of the least forgiving materials to cut, drill, or shape without a crack propagating through the crystal.
Sapphire sits near the top of the Mohs scale, second only to diamond among common industrial materials. Mechanical tooling wears down fast and generates heat that the crystal doesn't tolerate well.
Sapphire has no plastic deformation range to absorb stress — a single point of mechanical contact can seed a crack that runs across the whole part.
Sapphire's properties vary by crystal orientation (a-plane, c-plane, r-plane), so a process tuned for one cut direction can behave differently on another.
Camera lens covers and optical windows need a clean, low-roughness edge and surface — any micro-fracture becomes a scattering point that degrades image quality.

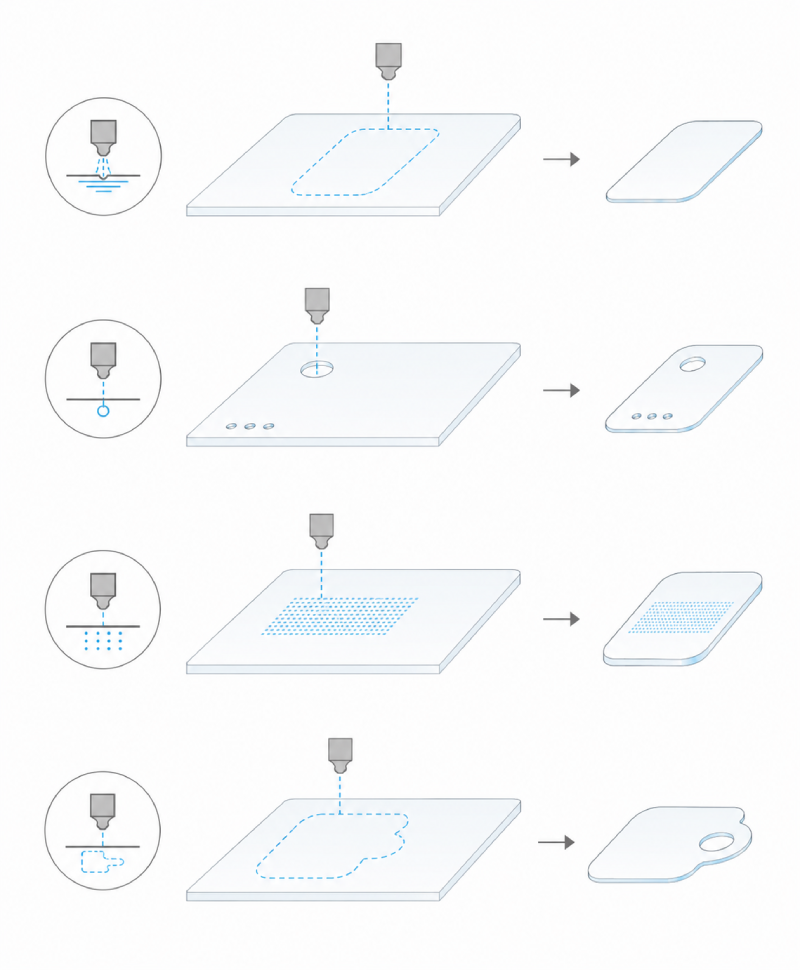

Ultrashort-pulse laser cutting removes material through rapid ablation rather than sustained heating, minimizing the thermal load that would otherwise seed cracks in the crystal lattice.

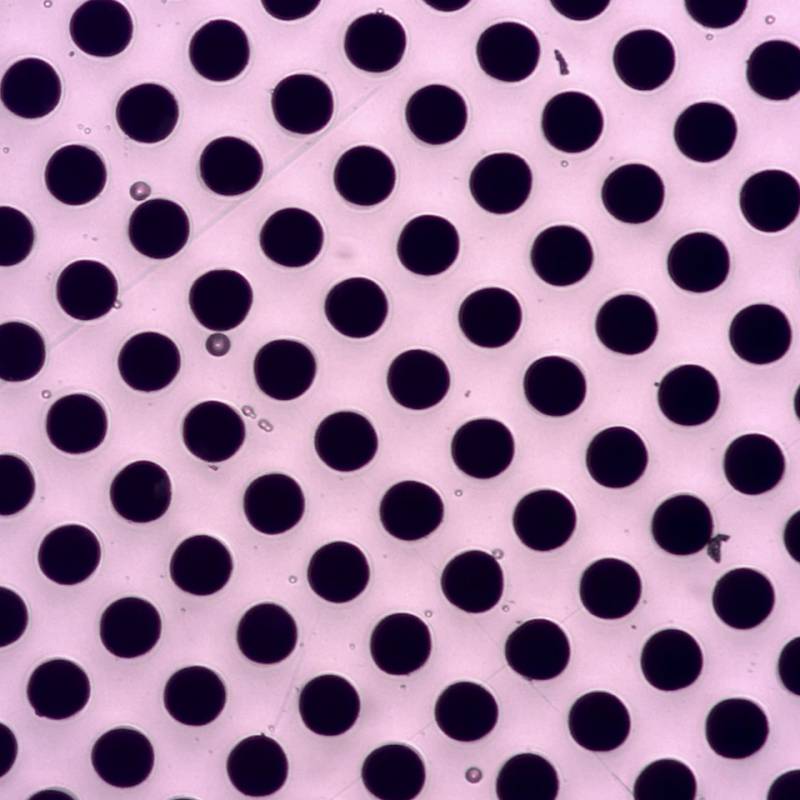

Small-diameter holes for sensor windows or component mounting are drilled with tightly controlled pulse energy to avoid chipping at the hole entrance and exit.
Controlled surface texturing is used for anti-glare, bonding, or optical diffusion requirements without introducing subsurface damage.
Complex outlines — including curved watch cover profiles and camera lens cover shapes — are cut to final form with minimal need for downstream mechanical finishing.

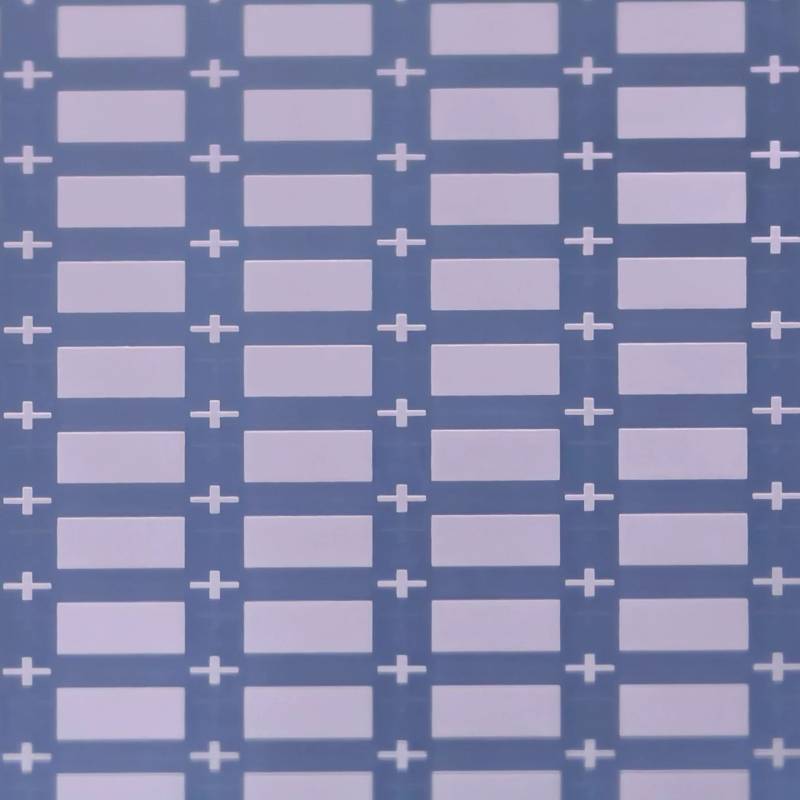

Microscopic processing results showing clean edges, zero crack propagation, and precise geometry control.
These are the industry segments where Chanxan laser systems are deployed for sapphire laser processing.
```
