An industry guide on ultrafast laser parameter optimization for micro-perforating composite and ceramic battery separators. Prevent micro-cracks and polymer melting in next-gen EV cells.
As solid-state and semi-solid batteries move toward commercial deployment in high-performance electric vehicles (EVs), separator design has shifted from simple passive isolation to active ion-flow engineering. To improve electrolyte wetting, lower interface impedance, and enhance rate capability, ultrafast laser micro-perforation has become a pivotal technology. However, processing composite separators (such as polymer matrices loaded with ceramic particles) differs fundamentally from processing pure ceramic-coated separators.
Optimizing laser parameters based on material absorption thresholds, thermal shock limits, and mechanical flexibility is critical to achieving clean micro-vias without degrading insulation integrity. Understanding these process windows relative to industry baseline standards enables manufacturers to select the optimal ultrafast laser configuration for their specific battery architecture.
The primary challenge in micro-perforating solid-state separators lies in handling heterogeneous optical and thermal properties during material removal:
Composite Polymer-Ceramic Separators (e.g., PEO/PVDF with LLZO/LATP Fillers): These membranes consist of flexible polymer matrices embedded with inorganic ceramic particles. The organic polymer phase has a low melting point and strong optical absorption in specific UV/IR bands, while the ceramic phase exhibits high melting temperatures and brittle fracture behavior. Imbalanced laser energy can ablate the matrix before removing the ceramic, leading to fiber pulling or irregular hole geometry.
Pure Ceramic Coated Separators (e.g., Al2O3, ZrO2, or Solid Electrolyte Coatings): These substrates feature a dense, rigid ceramic functional layer deposited on a thin base substrate or self-supporting ceramic film. Ceramic materials possess ultra-high hardness, low thermal expansion tolerance, and high bandgap energy. Excessive thermal impact induces micro-cracking and spallation along hole edges, compromising the separator's dielectric breakdown voltage.
Rather than relying on fixed empirical values, process engineers must tune energy density, pulse overlap, and wavelength selection around standard industry baselines:
Ultraviolet (UV, 355 nm) lasers provide high single-photon energy, making them ideal for photochemical bond breaking in composite polymer matrices. For dense pure ceramic layers, Green (532 nm) or Infrared (1064 nm) ultrafast pulses leverage multi-photon absorption mechanisms to exceed the ceramic ablation threshold efficiently while maintaining cold processing.
Composite materials require a moderate fluence window set just above the polymer matrix decomposition threshold to prevent thermal deformation. In contrast, pure ceramic layers require higher peak power density delivered in sub-picosecond or femtosecond bursts to achieve direct plasma vaporization without heat conduction into adjacent material.
High-frequency pulse trains must be balanced with galvo scanning speeds to manage thermal accumulation. For composites, lower spatial overlap prevents heat buildup that could cause polymer melting or hole wall collapse. For ceramics, higher pulse overlap with lower single-pulse energy ensures smooth edge removal without stress propagation.
The table below highlights the recommended laser tuning strategies relative to standard industrial baseline requirements:
| Process Attribute | Composite Separators (Polymer + Ceramic) | Pure Ceramic Coated Separators |
|---|---|---|
| Primary Laser Wavelength | Ultraviolet (UV - 355 nm) preferred for polymer absorption | UV or Green / IR Ultrafast for high peak power coupling |
| Pulse Duration Window | Picosecond regime (balances speed and thermal containment) | Femtosecond to Short Picosecond (prevents stress cracking) |
| Thermal Management Strategy | Minimize heat accumulation to prevent matrix shrink/melting | Suppress mechanical shockwaves to eliminate micro-cracking |
| Hole Edge Quality Target | Taper-free, burr-free edges without polymer recast rims | Smooth wall morphology without chipping or layer delamination |
Implementing laser parameter tuning on high-speed Roll-to-Roll (R2R) production lines requires automated process monitoring to maintain quality standards across continuous web rolls:
In-Line Optical Inspection (AOI): Real-time vision sensors monitor hole roundness, pitch consistency, and edge morphology, automatically adjusting laser output if drift is detected.
Dynamic Focus Compensation: High-speed optical tracking compensates for film flutter and localized thickness variations, ensuring consistent power density across the entire web width.
Debris & Off-Gas Extraction: Synchronized vacuum airflow removes vaporized polymer and ceramic particulate instantly, preventing redeposition on active separator surfaces.
Micro-perforating composite and pure ceramic separators demand distinct laser tuning strategies based on their underlying material physics. By pairing cold ultrafast laser processing with precise energy delivery and automated quality control, battery manufacturers can optimize separator performance for next-generation solid-state cell production.

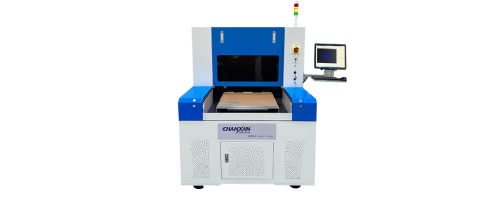

As a global leader in precision industrial micro-machining, Chanxan Laser provides specialized ultrafast laser micro-perforation equipment tailored for composite and ceramic solid-state separators. Featuring industrial picosecond and femtosecond lasers, dynamic focus tracking, and high-throughput Roll-to-Roll (R2R) automation, Chanxan Laser delivers production-ready solutions that meet rigorous EV battery standards.
