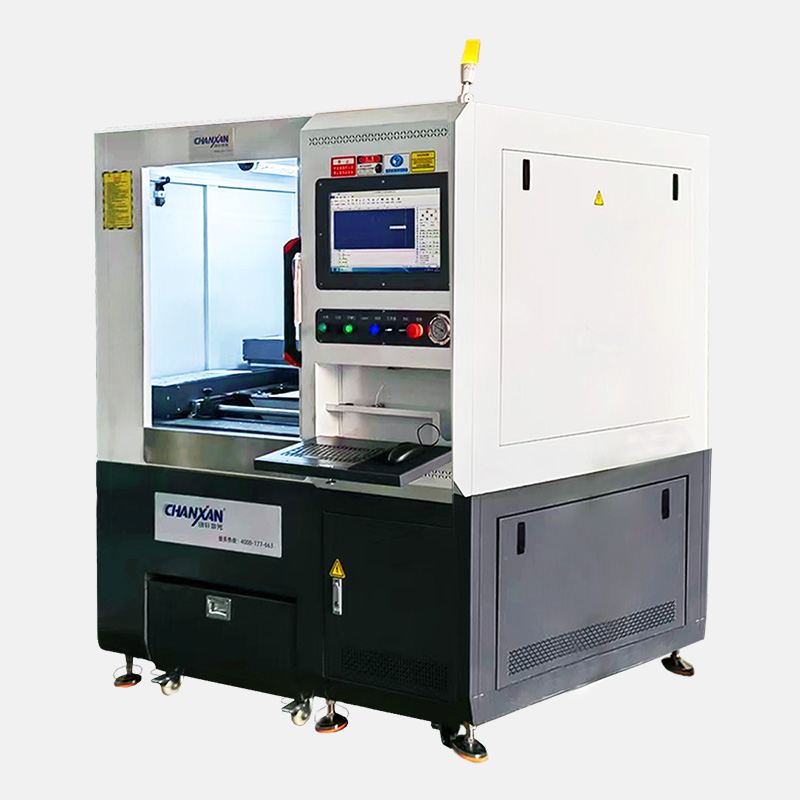

SG-6060J
This high-precision fiber laser cutter is designed for metals and advanced materials such as ceramics and PCB substrates. It delivers fast, accurate cutting and drilling with smooth edges and minimal defects. Ideal for electronics, automotive, and precision components, it enhances productivity while reducing operating costs.

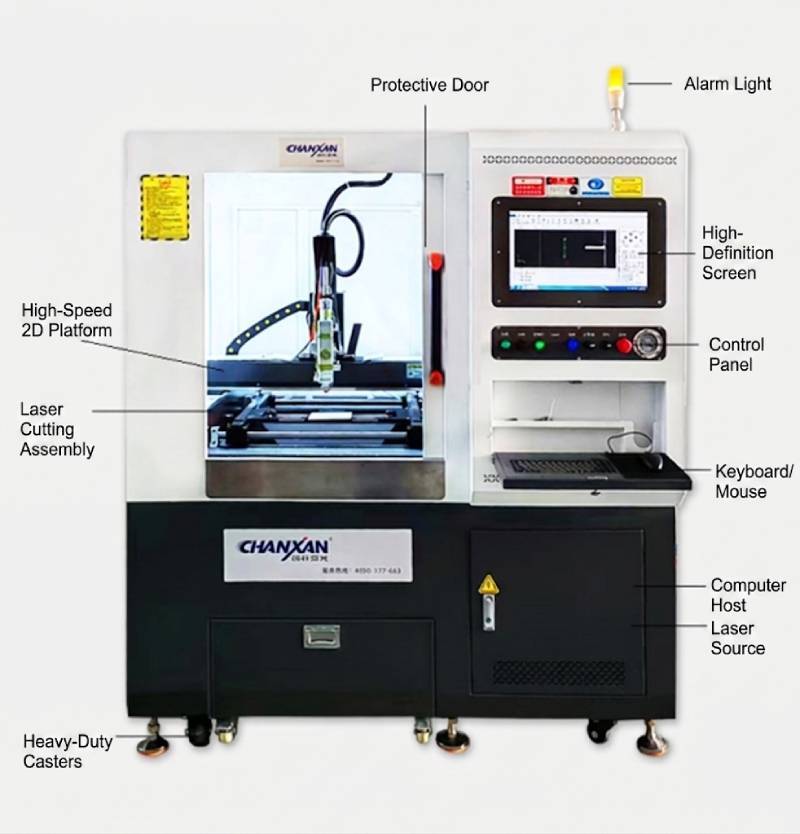

Features a 1500W QCW fiber laser on a vibration-damped marble platform. Includes a Raytool head, ±0.005mm repeatability, and CCD vision positioning. Supports materials from stainless steel to AlN ceramics.
±3μm accuracy with stable motion, CCD positioning, and auto focus ensures precise, consistent cutting.
Equipped to handle both conductive metals and technical ceramics. Consolidate multiple processing needs and reduce ROI timelines.
Up to 60 m/min speed with linear motor and fast laser response boosts throughput and production speed.

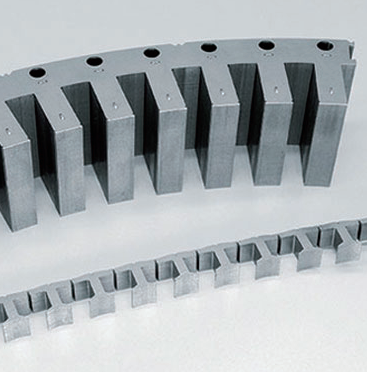

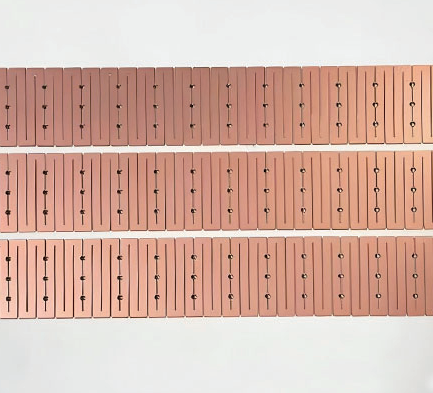

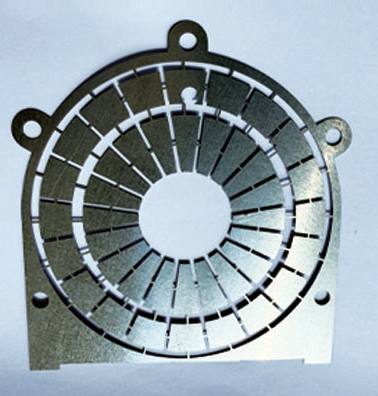

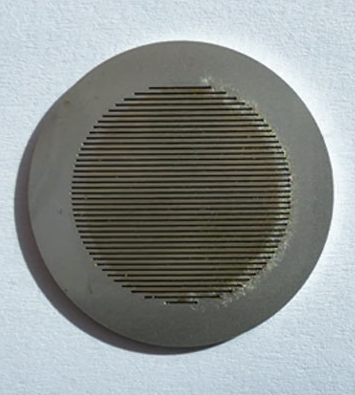

Visualizing high-quality edge finishes and intricate laser processing results.
Chanxan's high-precision laser systems are engineered for the most demanding production environments.
Precision cutting of metal parts, PCB substrates, mobile phone backplates, speaker components, and electronic connectors.
Processing of silicon wafers, ceramic substrates, and advanced electronic materials for packaging, circuits, and micro components.
Manufacturing of precision metal parts, battery components, and structural elements requiring high accuracy and consistency.
Cutting of small, complex metal components such as gears, watch parts, glasses frames, and precision tools.
Processing of high-precision metal components and biocompatible materials used in medical instruments and devices.

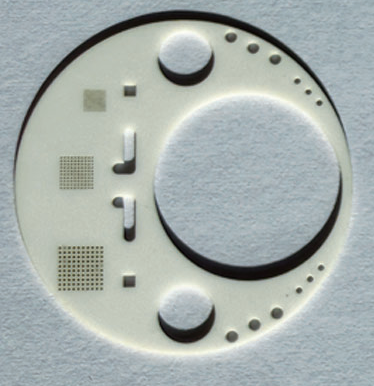

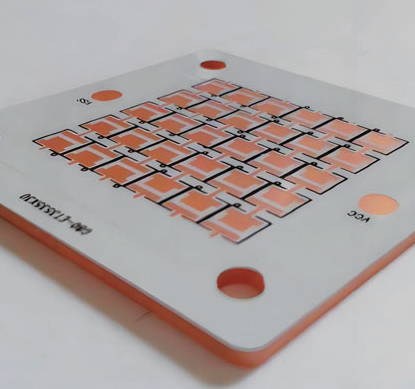

Drilling and cutting of LED ceramic substrates and optical-related materials requiring fine structures and smooth edges.
| Features / | Parameters / |
|---|---|
| Model | CW-6060J |
| Laser Type | Fiber Laser (Wavelength: 1070±5nm) |
| Laser Power | 1500W (Adjustable 5-95%) |
| Working Area | 600 x 500mm |
| Positioning Accuracy | ± 3μm |
| Repetition Accuracy | ± 0.005mm |
| Max Speed / Acceleration | 60m/min | 1G Acceleration |
| Drive System | Akribis Linear Motor |
| Cutting Slit Width | 0.05 - 0.12mm |
| Supported Formats | DSP, PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Cooling System | Dual-temp Dual-control Water Cooling (20-25℃) |
| Cutting Air Pressure | 1.0 - 2.5 MPa |
| Overall Dimension | 1400 x 1600 x 1800mm (Weight: 2000kg) |
| Power Requirement | AC 380V ±10%, 50Hz |

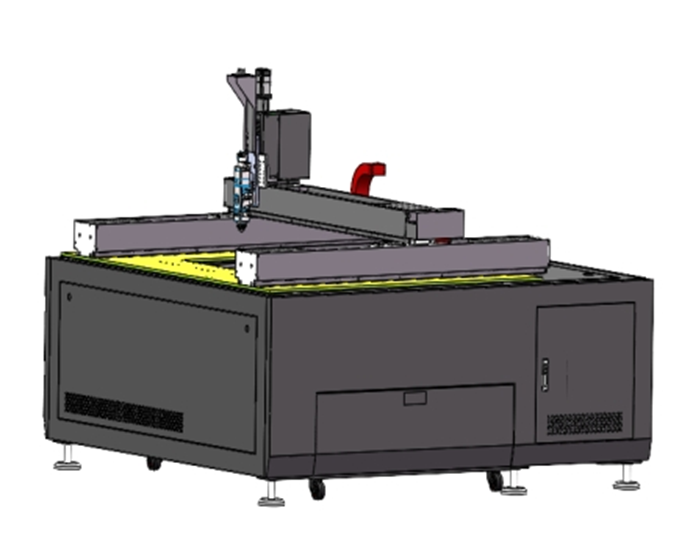

Core components engineered for precision, stability, and long-term industrial performance.
Designed for performance, precision, and reliability in industrial environments.
