A 355nm UV output wavelength supports high-quality engraving with a fine tactile feel and minimal thermal impact.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Models CX-05ZX / 10ZX

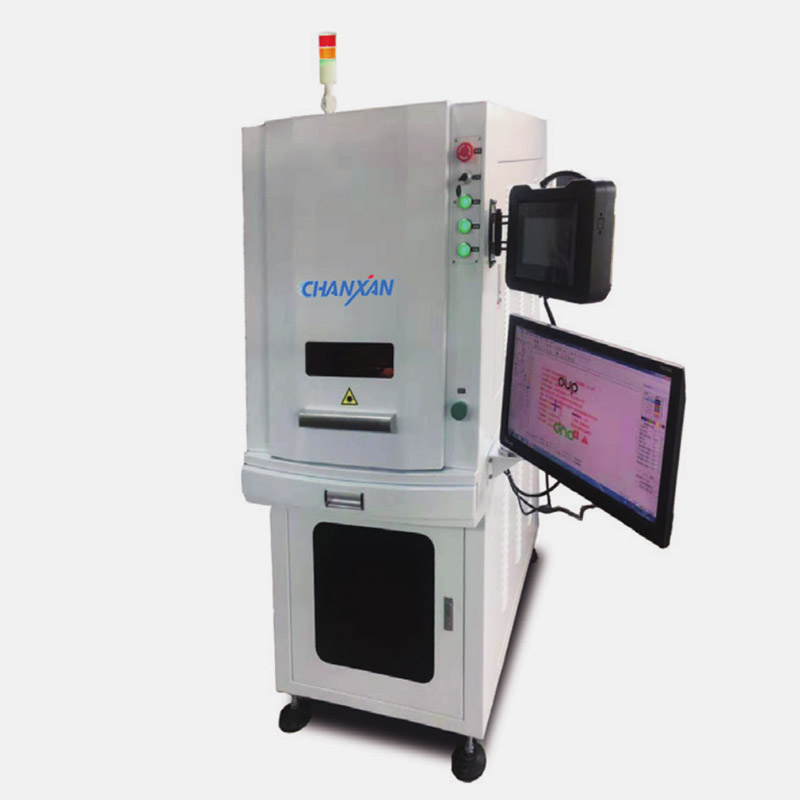

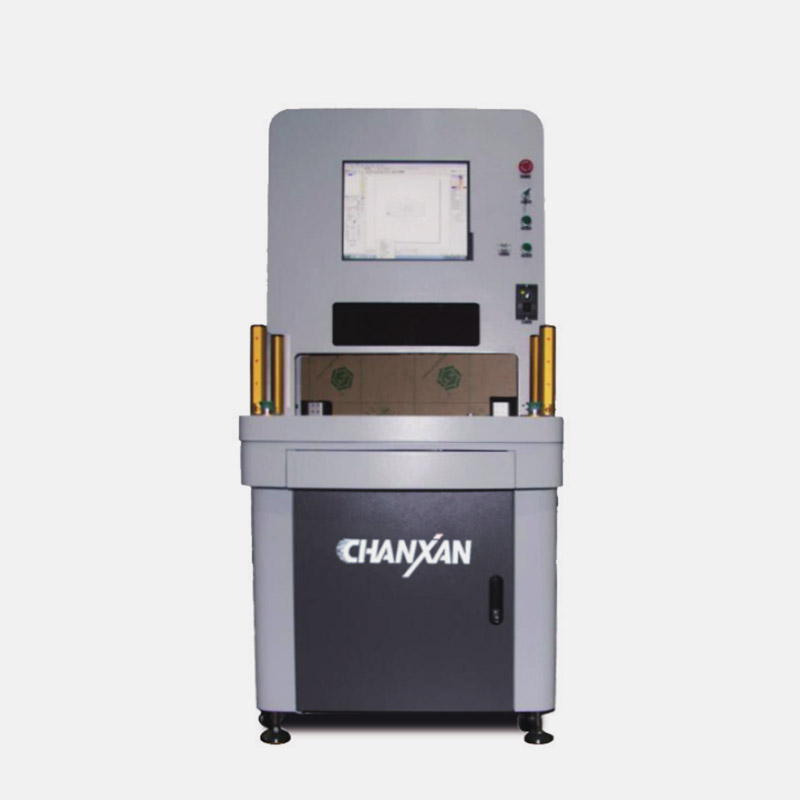

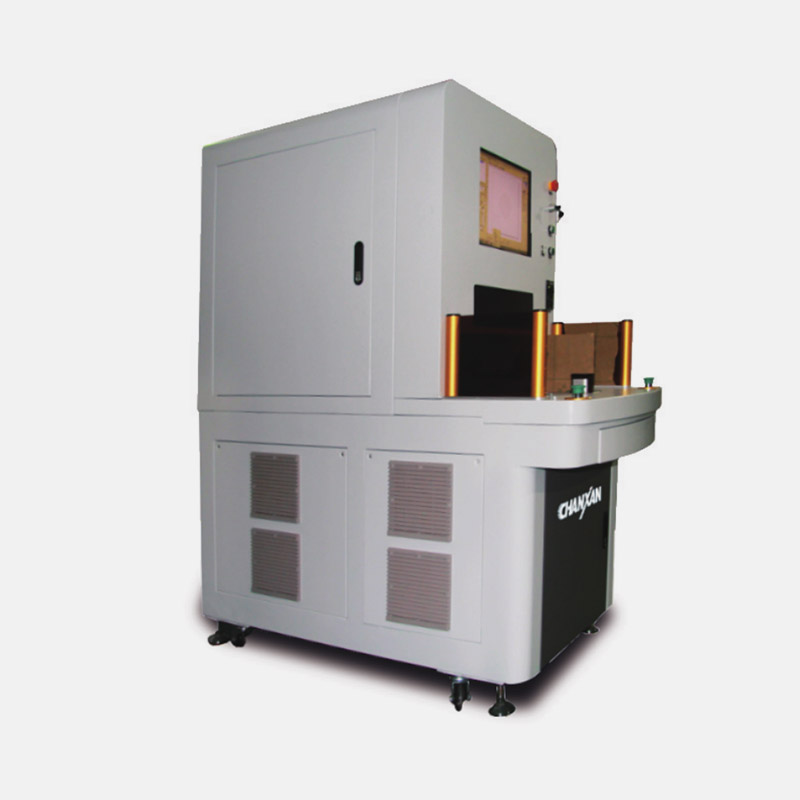

Automatic Rotary UV Laser Marking Machine
The CX-05ZX / 10ZX is a high-precision 355nm UV laser system for micro-marking, precision engraving and anti-counterfeiting applications. Its minimal heat-affected zone helps prevent deformation, scorching and material damage while providing high-quality, high-yield marking for flat, cylindrical and rotating components.
355 nm UV Laser Wavelength±0.001 mm Repeat Accuracy0.01 mm Minimum Line Width
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Materials
The system supports high-precision micro-marking and engraving across metal, non-metal, coated, film and specialty-material surfaces.
MetalsCoated MaterialsPlasticsCeramicsSpecialty FilmsMetal & Non-Metal Film MaterialsCylindrical Components
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Imported Optical Transmission
A full set of imported laser transmission optics supports stable delivery of precise marking performance.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Automatic Rotary Marking
The configuration is ideal for consistent 360° marking of cylindrical and rotating products.
Key Features
Minimal Heat-Affected Zone
UV processing helps avoid deformation, damage and scorching of sensitive materials to support high marking yield.
Broad Material Compatibility
Supports precision marking across materials where conventional infrared-laser processes may produce less satisfactory results.
Color-Change Marking Effects
Many materials exhibit an appealing color-change effect after marking, supporting visual differentiation and anti-counterfeiting use.
Micro-Machining Capability
Fine character and line specifications support detail-oriented engraving, traceability codes and precision security marks.
Technical Parameters
| Parameter | CX-05ZX / 10ZX |
|---|---|
| Model | CX-05ZX / 10ZX |
| Working Area | 100 × 100 mm |
| Laser Power | Optional: 3W / 8W / 10W |
| Laser Wavelength | 355 nm |
| Laser Type | Semiconductor 808 nm Pump Source |
| Optics / Lens System | Full Set of Imported Laser Transmission Optics (USA) |
| Cooling System | Professional Industrial Constant Temperature Cooling System |
| Marking Speed | 500 characters/s |
| Laser Energy Control | 0–100% Software Adjustable |
| Minimum Character Size | 0.1 mm |
| Minimum Line Width | 0.01 mm |
| Repeat Positioning Accuracy | ±0.001 mm |
| Machine Power Consumption | 1.5 kW |
| Power Supply | AC 110V / 220V ±10%, 50Hz / 60Hz |
| Working Environment | Temperature: 15–30°C; Humidity: 10%–90% |
| Machine Dimensions (L × W × H) | 900 × 1000 × 1600 mm |
FAQ
What applications is the CX-05ZX / 10ZX designed for?
The system is designed for micro-marking, precision engraving, traceability and anti-counterfeiting applications on metals, non-metals, films, plastics, ceramics and rotating components.
How does UV laser marking protect sensitive materials?
The 355nm UV laser has a minimal heat-affected zone, helping prevent deformation, scorching or material damage while maintaining high marking quality.
Can it mark rotary or cylindrical products?
Yes. The automatic rotary configuration supports consistent 360° precision marking for cylindrical and rotating products.
Which industries commonly use this system?
Typical applications include electronics and semiconductor components, consumer electronics, plastic-product marking, security and anti-counterfeiting solutions, specialty films and precision industrial products.
