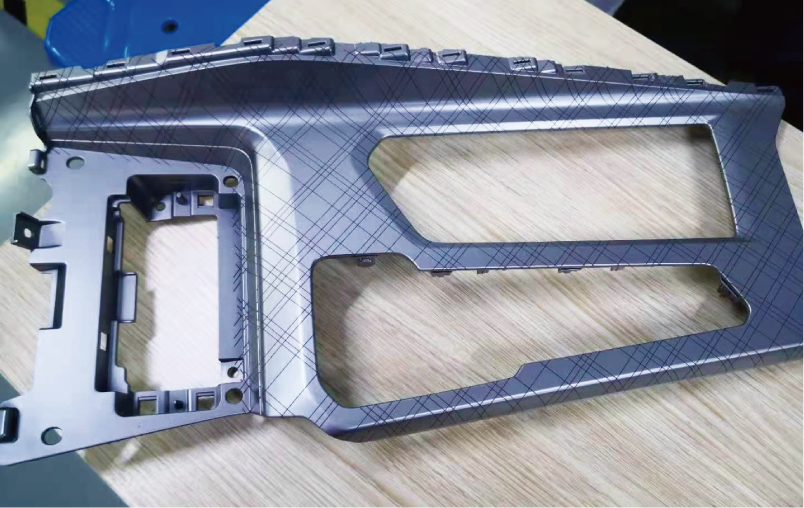

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01Multi-Face 3D Engraving
Multi-axis linkage supports flexible switching between products and simultaneous laser engraving of up to five component surfaces.

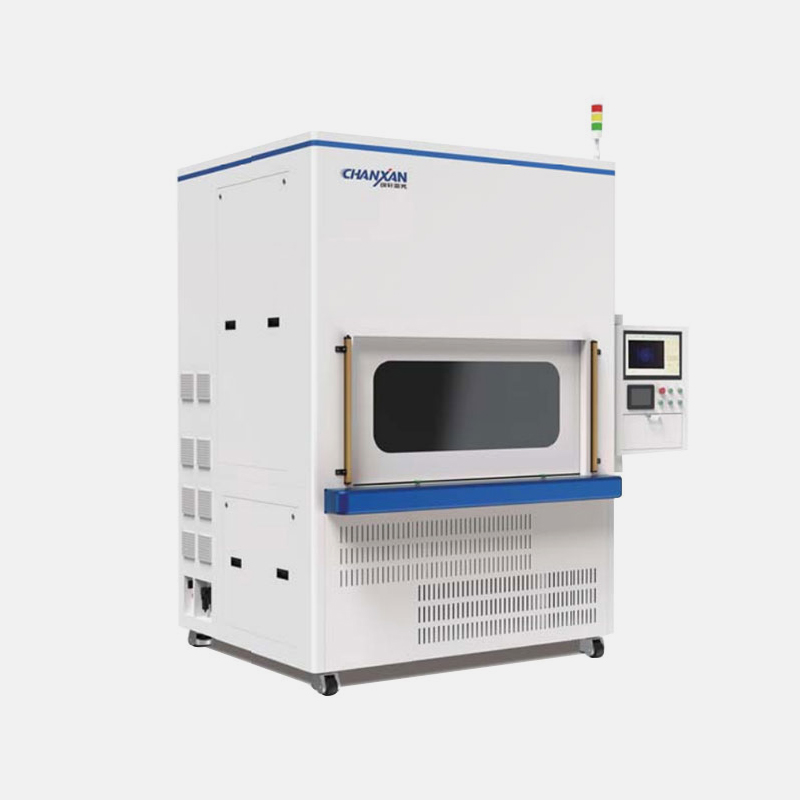

IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CX-N-305
3D UV Laser Engraving Machine
The CX-N-305 performs precision multi-face 3D laser engraving, paint removal and surface texturing on irregular components. It supports one-pass processing across multiple surfaces with no residue and no substrate damage, making it suitable for automotive, aerospace, mold and high-value decorative applications.
UV Laser, 10W / 20W±0.02 mm Positioning AccuracyUp to Five-Surface Engraving
Get a tailored solutionCompatible Materials
The CX-N-305 supports precision surface processing of metal and non-metal components, including decorative and functional painted or coated substrates.
Painted Plastic ComponentsPVD CoatingsWater-Based PaintsOil-Based PaintsDecorative Coated SurfacesMetal HousingsCoated Metal PartsComposite Materials
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01

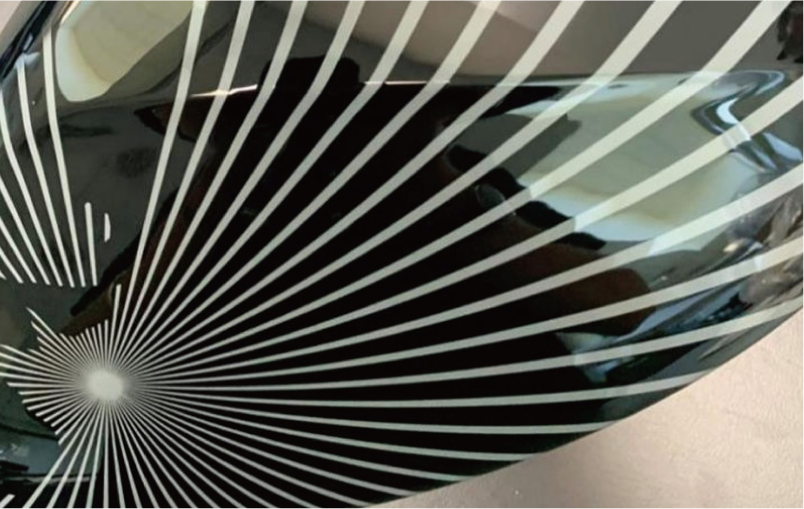

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Clean Precision Paint Removal
Engrave PVD, water-based and oil-based paints while preserving the substrate and leaving no residual material after processing.

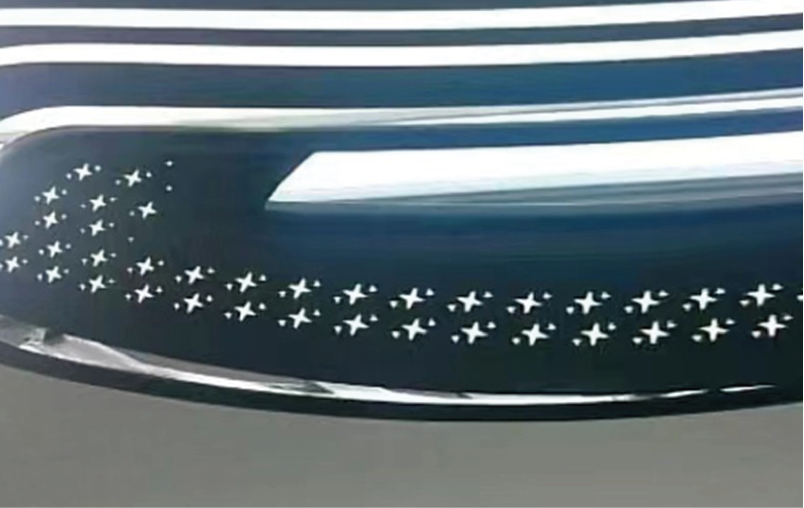

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Automation-Ready Positioning
Optional vision-camera guidance and a six-axis robotic arm enable collaborative positioning for complex workpiece geometries.
Key Features
Broad Paint-Film Compatibility
Supports paint-film thicknesses from 5–100 µm, including PVD, water-based paints and oil-based paints.
Substrate-Safe Surface Treatment
Processes a range of interior and exterior paint colors without residue or damage to the underlying substrate.
Fine-Line 3D Detail
A minimum line width of 0.015 mm supports detailed engraving, decorative texturing and functional markings.
Flexible Automation Options
Vision guidance and six-axis robotic-arm options can extend the system for accurate processing of irregular components.
Technical Parameters
| Parameter | CX-N-305 |
|---|---|
| Product Name | 3D Laser Engraving Machine |
| Laser Type | UV Laser |
| Laser Wavelength | 355 nm / 1064 nm (Fiber) |
| Laser Power | 10W / 20W |
| Minimum Line Width | 0.015 mm |
| Applicable Materials | Metals & Non-Metals |
| Laser Energy Control | 0–100% Software Adjustable |
| Processing Area | 600 × 600 mm / 1200 × 1200 mm |
| Marking Speed | 600 Characters/s |
| Positioning Accuracy | ±0.02 mm |
| Control System | DSP Control System |
| Supported Graphic Formats | DST, PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Compatible Software | TAJIMA, CORELDRAW, PHOTOSHOP, AUTOCAD, etc. |
| Cooling Method | Water Cooling |
| Total Machine Power | 3.0 kW |
| Power Supply | AC 220V ±10%, 50Hz / 60Hz |
| Machine Weight | 1000 kg |
FAQ
What is the CX-N-305 designed to process?
The CX-N-305 is designed for precision 3D laser engraving, paint removal and surface texturing of irregular, multi-surface metal and non-metal components.
Can the machine process multiple component faces in one pass?
Yes. Multi-axis linkage supports simultaneous laser engraving of up to five surfaces, with flexible product switching for varied component shapes.
Which industries are suitable for this system?

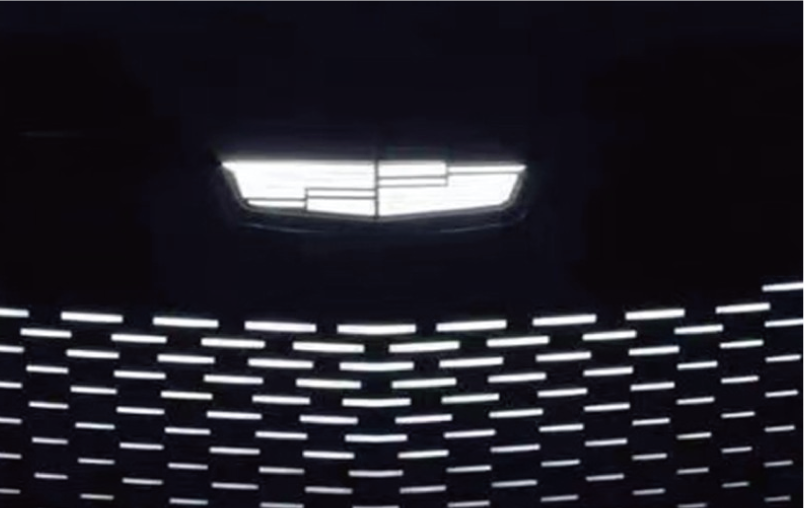

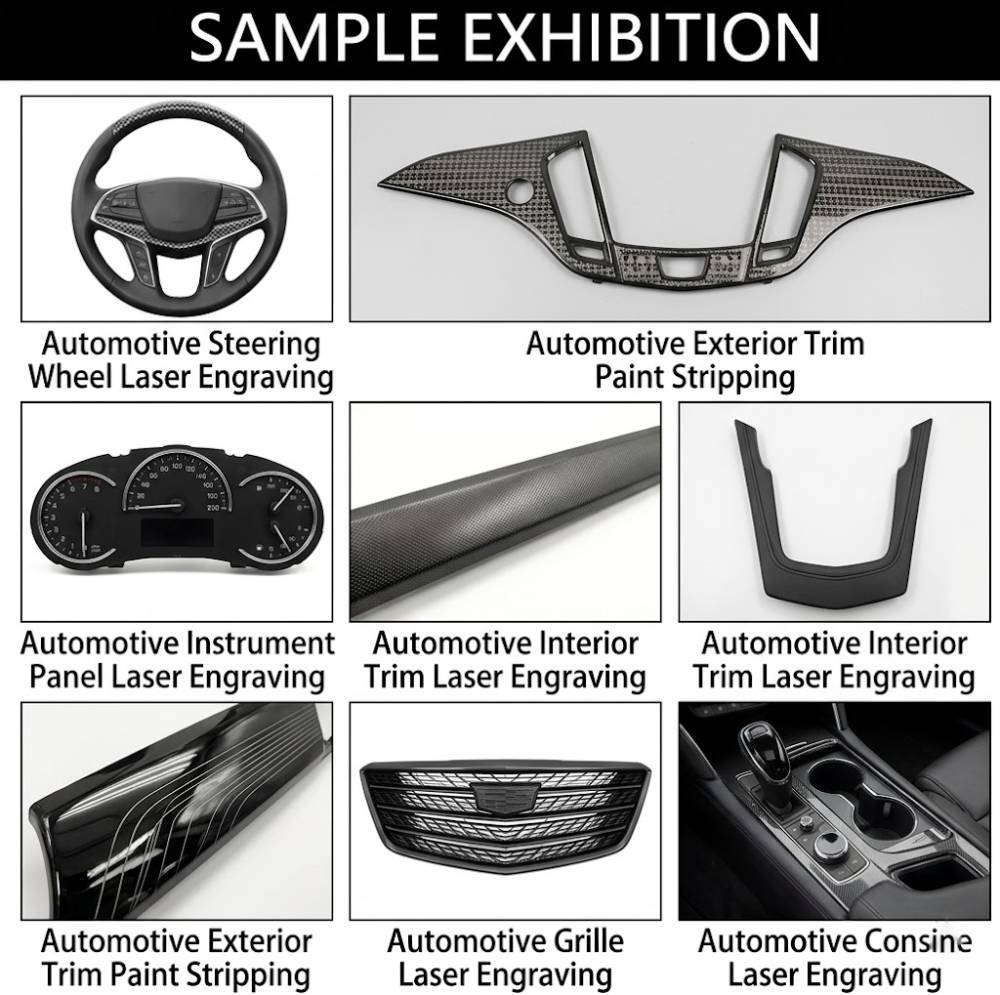

Typical applications include automotive interior trim and logos, consumer-electronics housings and controls, mold surfaces, industrial parts, aerospace components and precision coated products.
Are vision positioning and robotic automation available?
Vision-camera-guided positioning and a six-axis robotic arm are available as optional configurations for collaborative operation on complex component geometries.
