Acrylic signage, LED light boxes, Display products, Advertising boards, Decorative panels, Customized acrylic fabrication

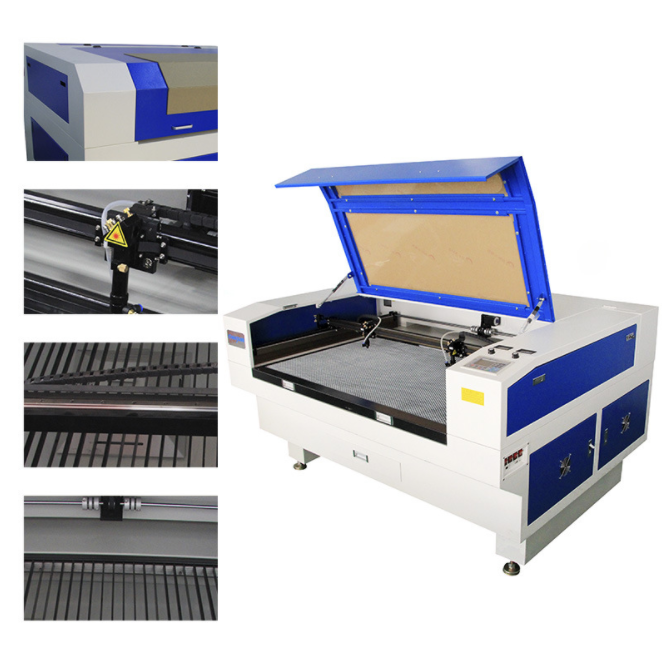

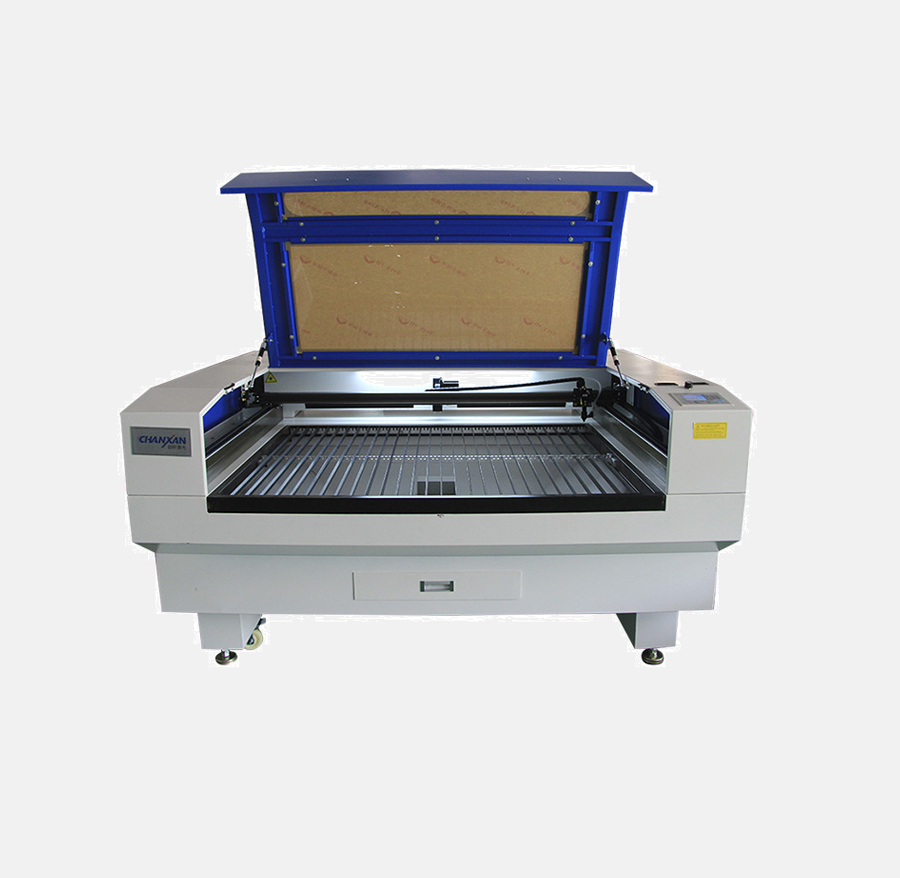

Chanxan acrylic laser cutting machine delivers smooth, polished edges for PMMA cutting, engraving, signage, displays, and industrial acrylic fabrication, and supports acrylic sheets of different sizes and thicknesses, making it ideal for acrylic signage, LED light boxes, display products, advertising boards, decorative panels, and customized acrylic fabrication.
Acrylic, also known as PMMA (Polymethyl Methacrylate), is widely used in advertising, retail displays, lighting, architecture, and industrial applications due to its excellent transparency, weather resistance, and lightweight properties. Equipped with high-speed servo motors, intelligent path optimization, and optional CCD vision positioning, the acrylic laser cutting machine provides a reliable solution for both prototyping and high-volume production.
Smooth transparent cutting edges with no secondary processing required
Strong fine detail cutting capability suitable for complex designs
Fast customization production, shortened delivery cycles
Non-contact processing, no burrs or cracks produced
Support for multiple materials, multi-purpose single machine
High automation level, reduced labor costs
Rough cutting edges requiring additional grinding and polishing
Difficult to handle complex patterns, limited precision
Fast tool wear, high maintenance costs
Prone to burrs and cracks, unstable quality
Limited material applicability
Low production efficiency, requires significant manual operation

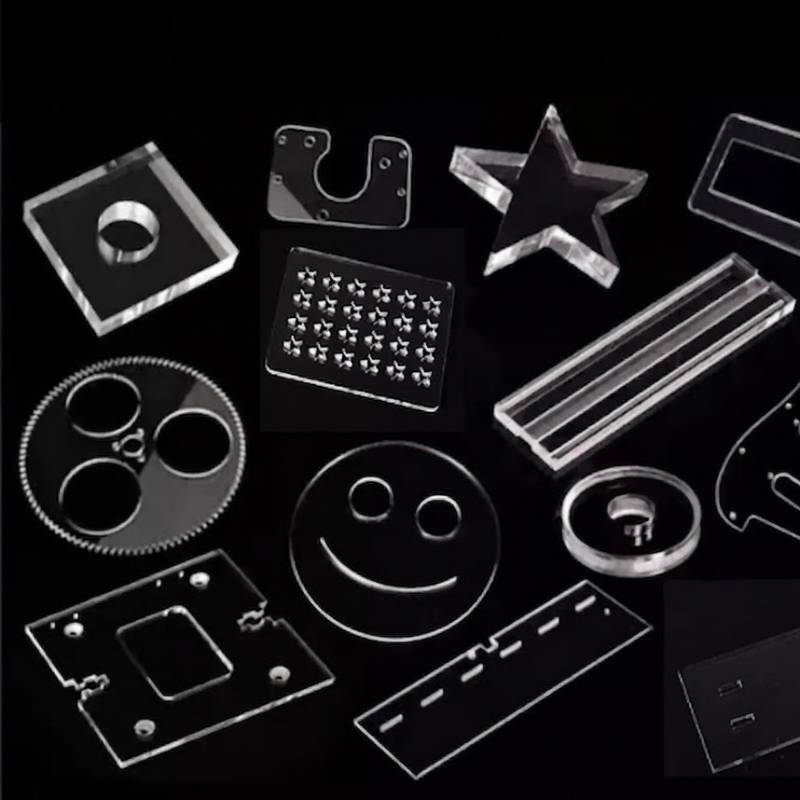

Precise contour cutting capability supporting complex geometric shapes and fine details, suitable for creating acrylic letters, signs, and decorative items.

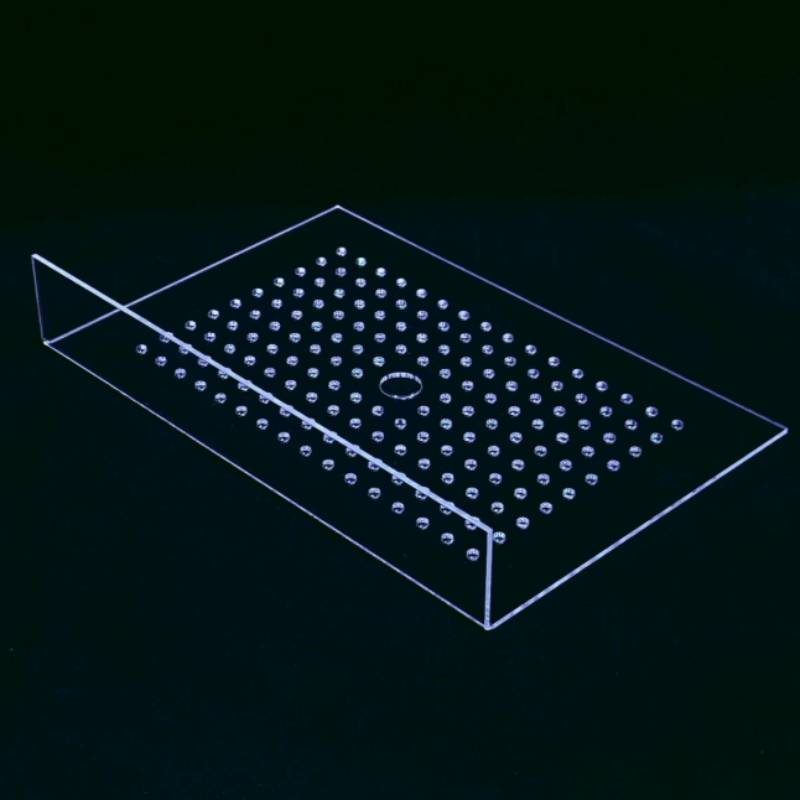

High-precision drilling function enabling accurately positioned holes in acrylic sheets, supporting assembly structure design.
Surface engraving and texture processing, capable of creating custom patterns, logos, and surface marks to enhance product visual appeal.

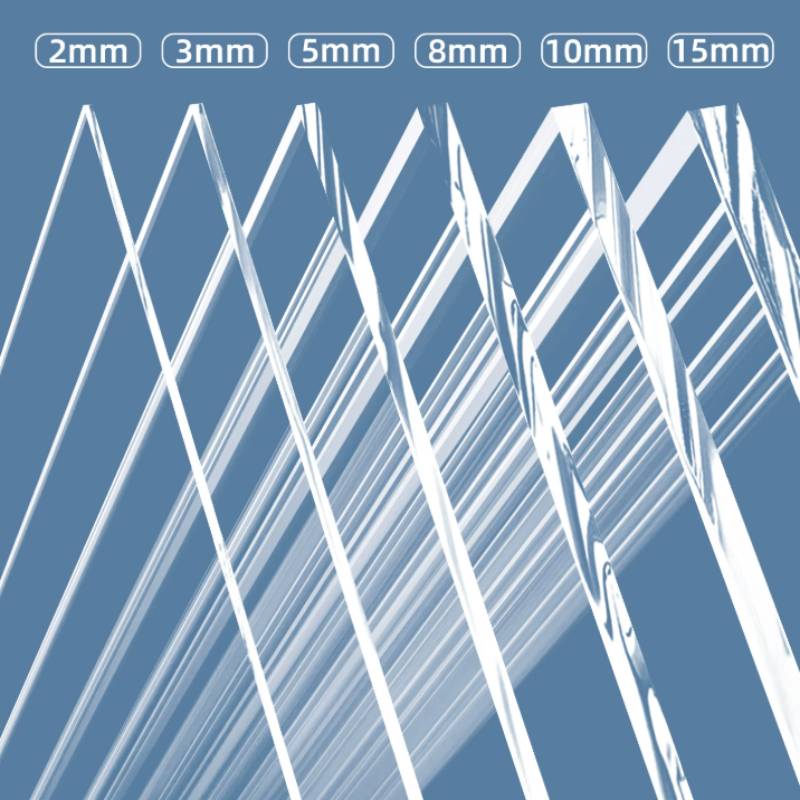

Based on laser power, supporting cutting from thin sheets to thick plates. 80W cuts up to 10mm, 300W cuts up to 28mm acrylic.

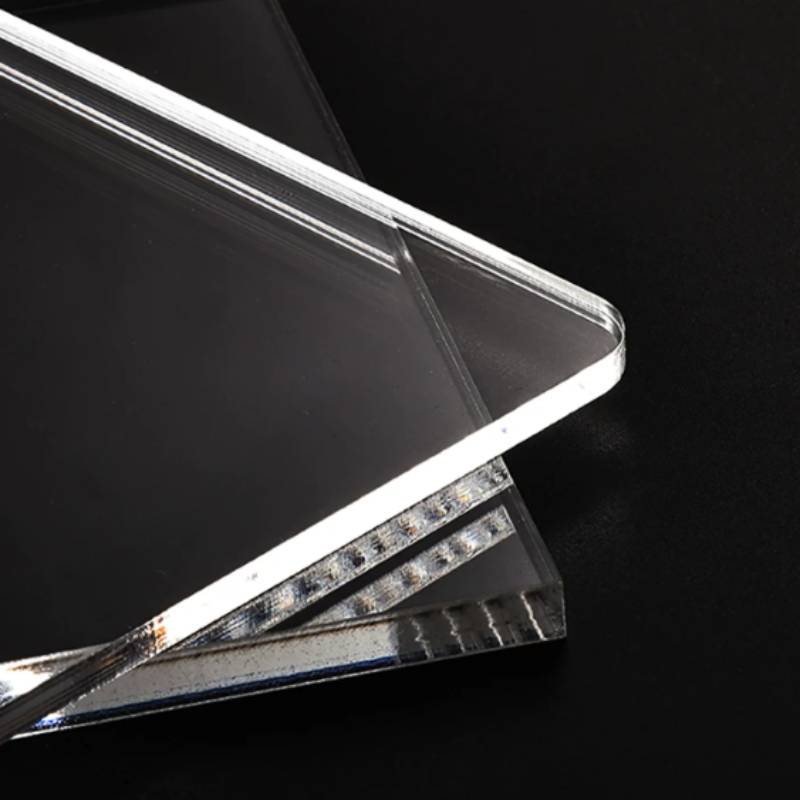

CO₂ laser cutting produces flame-polished edges that are smooth and transparent, requiring no additional processing for direct use.
Optimized transmission structure and high-speed servo control system ensure stable movement during complex acrylic cutting processes.

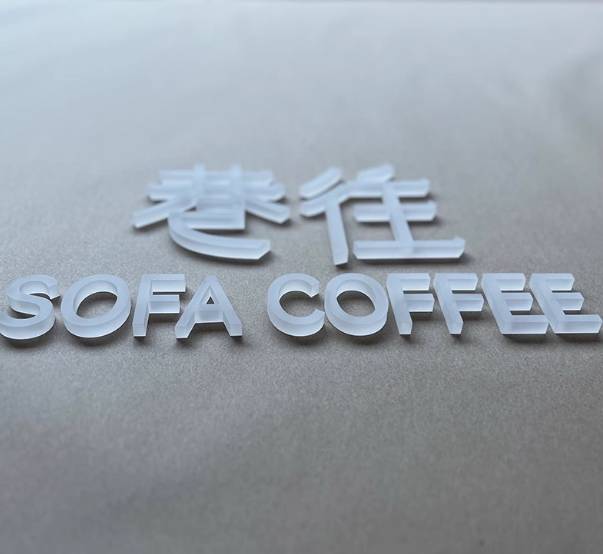

Applications:
Acrylic letters
Channel letters
Advertising boards
Logo signs
LED light boxes
Benefits: Smooth transparent edges, fine detail cutting, fast customization

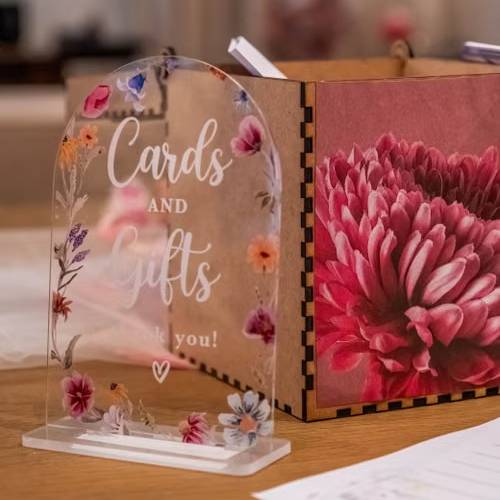

Used for:
Retail display stands
Exhibition models
Product showcases
Cosmetic displays

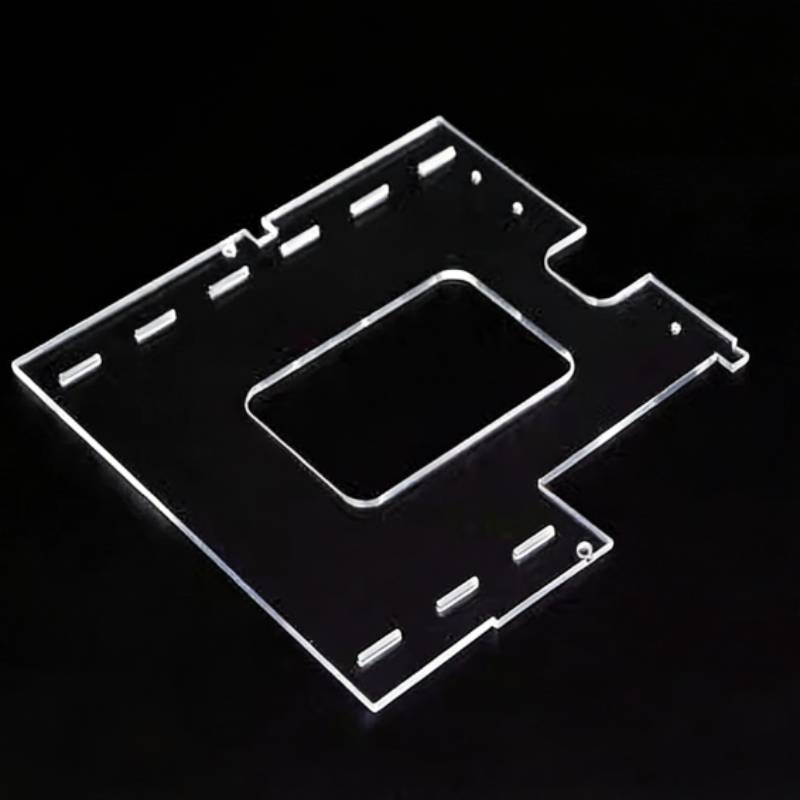

Laser cutting enables clean edges and precise assembly structures.

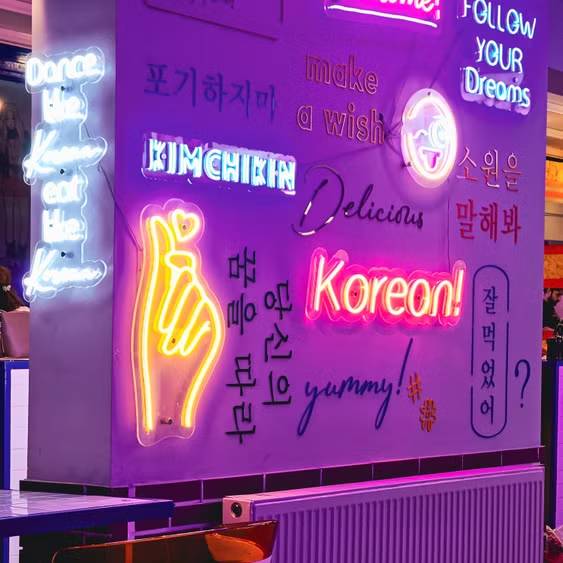

Suitable for:

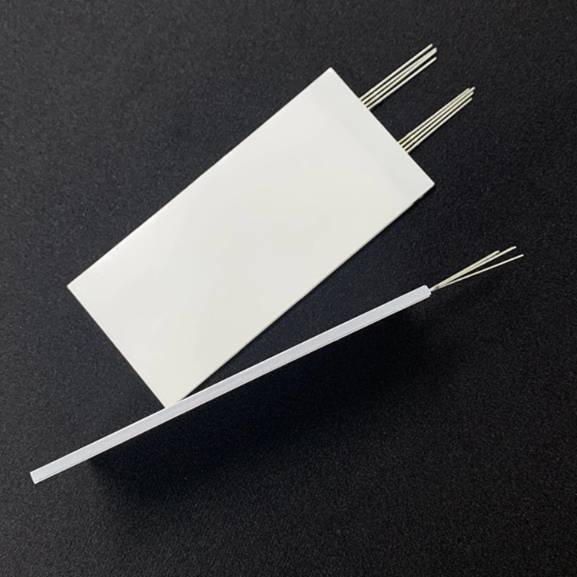

Acrylic light guides
LED diffuser panels
Decorative lighting covers
Laser processing maintains excellent optical appearance.

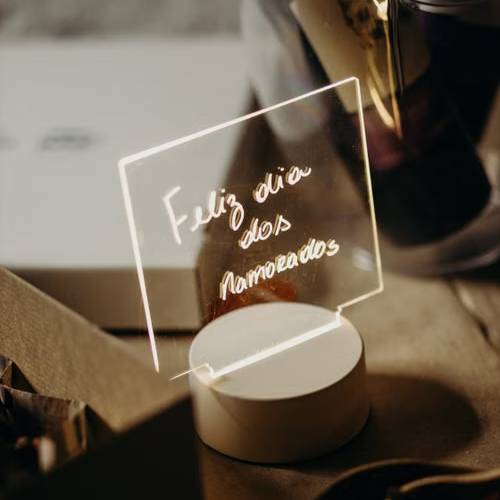

Applications:
Acrylic gifts
Nameplates
Awards
Decorative panels
DIY products
Supporting personalized customization to meet diverse market demands.
CO₂ laser wavelength has excellent absorption characteristics for acrylic materials. During laser cutting, the material is melted and vaporized instantly, creating naturally smooth and glossy edges.
The optimized transmission structure and high-speed servo control system ensure stable movement during complex acrylic cutting, with cutting speeds reaching 0-800mm/s.
Intelligent corner optimization automatically adjusts laser power and speed at sharp corners to minimize over-burning and deformation, ensuring precise cutting of complex patterns.
Advanced control software automatically optimizes cutting routes to improve production efficiency and reduce material waste, supporting AI, DXF, DWG, PLT, BMP and other formats.
Different acrylic production requirements can be customized with CCD vision positioning, multi-head cutting systems, stainless steel honeycomb tables, and auto-feeding systems.
Equipped with water cooling protection system ensuring long-term continuous operation stability and reliability, extending laser tube lifespan.
| Parameter | Specifications |
|---|---|
| Model | CW-640 / CW-960 / CW-1390 / CW-1610 / CW-1810 / CW-1910 |
| Laser Type | Sealed CO₂ Laser Tube |
| Laser Power | Standard 40W–100W, Up to 300W Optional |
| Working Area | 600×400mm to 1900×1000mm |
| Cutting Speed | 0–800 mm/s |
| Engraving Speed | 0–1000 mm/s |
| Positioning Accuracy | ≤ ±0.01 mm (Large Models) |
| Supported Materials | Acrylic, Wood, Leather, Fabric, Plastic, Rubber, etc. |
| Supported Formats | AI, DXF, DWG, PLT, BMP, LAS, DST |
| Cooling System | Water Cooling Protection System |
| Optional Features | CCD Vision, Auto Feeding, Multi-head Cutting, Lift Platform |
| Model | Working Area | Recommended Acrylic Applications |
|---|---|---|
| CW-640 | 600 × 400 mm | Small acrylic crafts, prototypes, customized products |
| CW-960 | 900 × 600 mm | Acrylic signs, small display products |
| CW-1390 | 1300 × 900 mm | Advertising boards, acrylic letters, display fabrication |
| CW-1610 | 1600 × 1000 mm | Large acrylic panels, industrial production |
| CW-1810 | 1800 × 1000 mm | Large-format acrylic cutting |
| CW-1910 | 1900 × 1000 mm | High-volume acrylic sheet processing |
| Laser Power | Recommended Acrylic Thickness |
|---|---|
| 80W | Up to 10 mm |
| 100W | Up to 13 mm |
| 130W | Up to 17 mm |
| 150W | Up to 20 mm |
| 300W | Up to 28 mm |
Actual cutting thickness depends on acrylic type, quality, cutting speed, and required edge quality.
CO₂ laser cutting creates smooth, polished acrylic edges, eliminating additional grinding and polishing processes and directly enhancing product quality.
Rigid mechanical structure, optimized motion system and reliable cooling system ensure long-term continuous operation stability and reliability.
From small customized acrylic products to industrial-scale production, Chanxan provides configurable laser solutions to meet diverse market demands.
