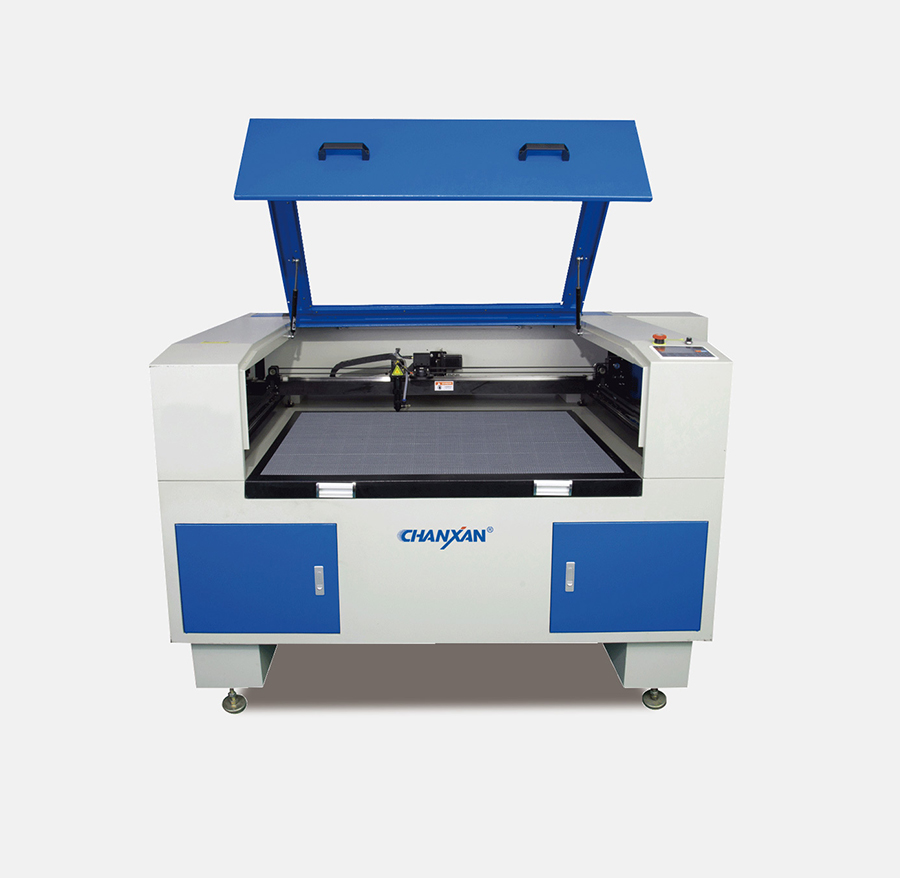

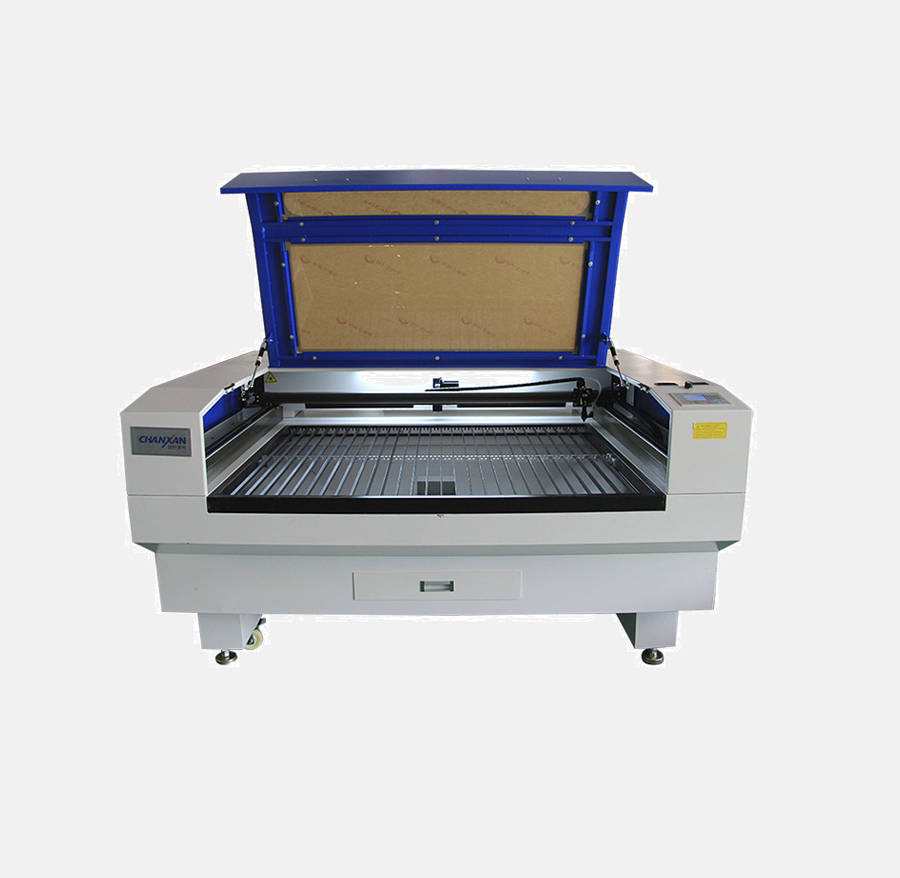

CW-640/960/1390/1610/1810/1910

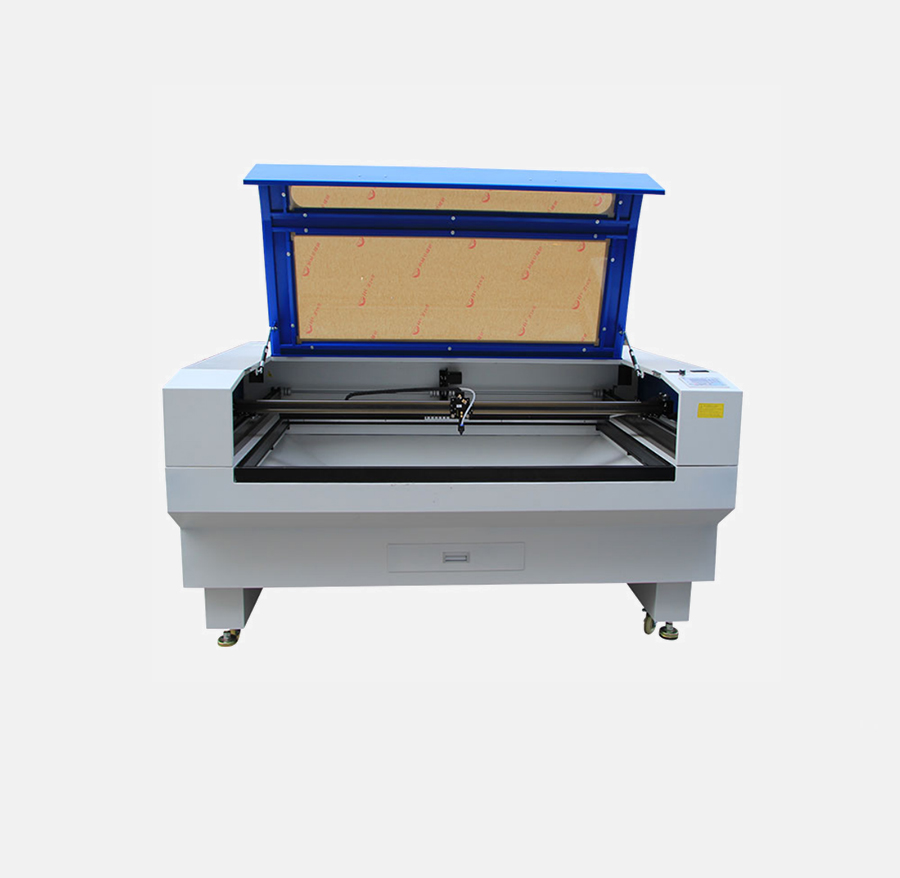

The CW Series CO₂ Laser Cutting Machine is a versatile and high-precision laser system designed for cutting and engraving a wide range of non-metal materials. Available in multiple working sizes from 600 × 400 mm to 1600 × 1000 mm, it is ideal for applications in textile, leather, apparel, packaging, acrylic, woodcraft, footwear, and decorative industries.
Equipped with an optimized motion system, high-speed servo control, and advanced cutting technology, the CW series delivers clean cutting edges, stable performance, and high production efficiency. Optional CCD vision positioning, stainless steel worktables, and customized configurations are available to meet different industrial requirements.
Industrial-grade laser solution engineered for high-speed cutting and engraving of non-metal materials. Supporting working areas from CW-640 to CW-1910, ideal for textile, leather, acrylic, and flexible material processing.
Exclusive optimization technology minimizes yellowing, burning, and blackened edges common in traditional CO₂ laser cutting.

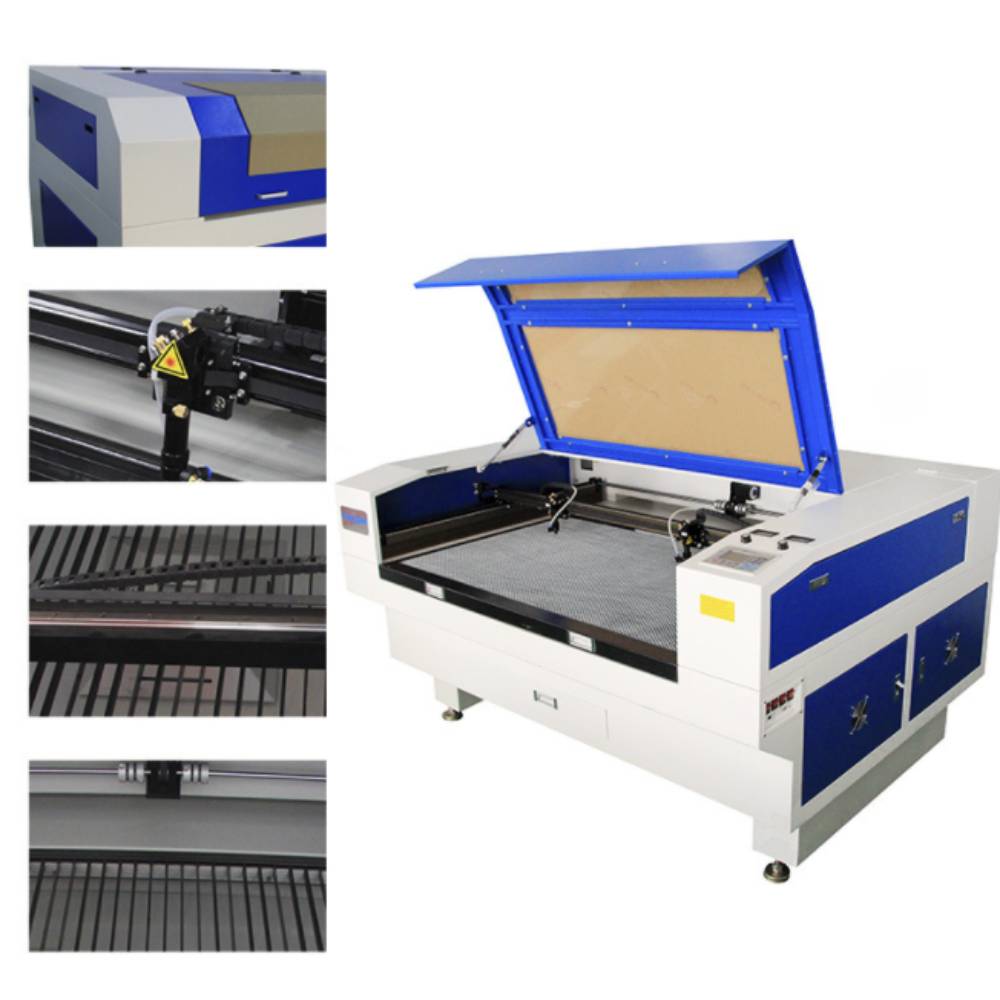

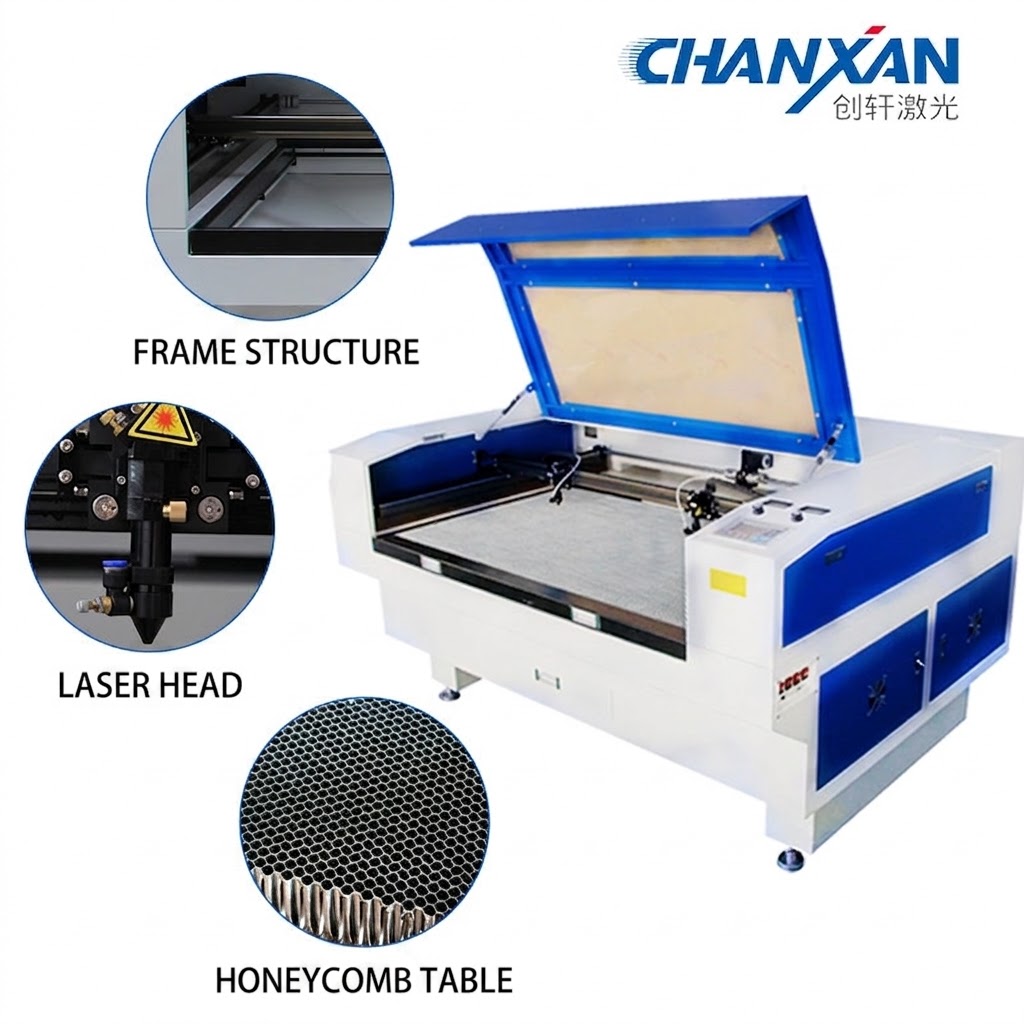

Equipped with beam protection, modular guide rails, and high-speed servo motors for improved stability and accuracy.
Supports smooth and continuous cutting of complex curves and contours, ensuring high-speed precision processing.
Real-time synchronization of power, frequency, and speed reduces corner burrs for cleaner sharp-angle cutting.
Built-in software automatically optimizes cutting paths to reduce processing time and increase productivity.
Optional upgrades: CCD Vision Positioning, Multi-head Cutting, Auto-Feeding, and Stainless Steel Worktables.

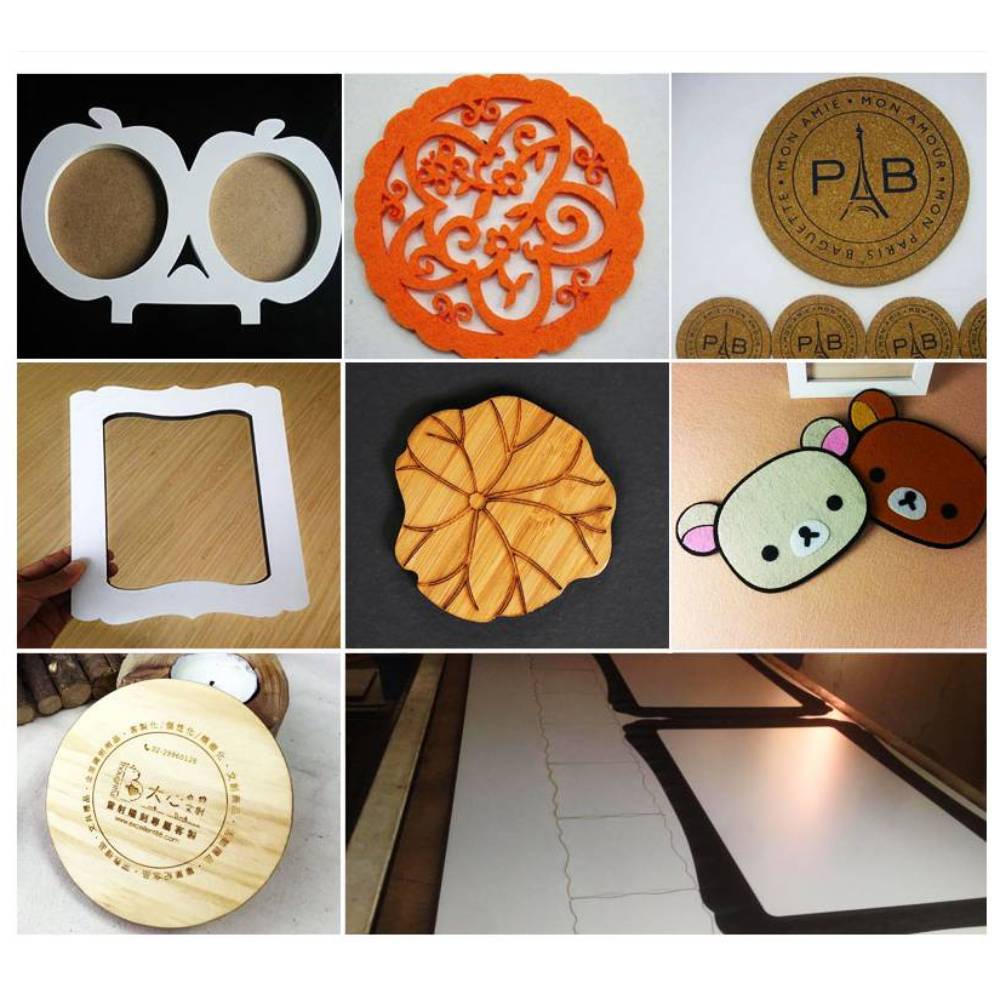

Leather, fabric, rubber, bamboo, wood, paperboard, denim, felt, acrylic, polyester fiber board, and other flexible or non-metal materials.
Applicable IndustriesGarment & Apparel Manufacturing
Footwear & Leather Goods
Embroidery & Home Textiles
Advertising & Acrylic Processing
Paper Products & Packaging
Woodcraft & Personalized Products
| Material | 80W | 100W | 130W | 150W | 300W |
|---|---|---|---|---|---|
| Acrylic | 10mm | 13mm | 17mm | 20mm | 28mm |
| Double Color Board | 2.5mm | 3mm | 3.5mm | 3.5mm | 5mm |
| Balsa Wood | 8mm | 10mm | 11mm | 13mm | 18mm |
| Hardwood | 3mm | 4.5mm | 5mm | 6mm | 10mm |
| Cardboard | 10mm | 12mm | 14mm | 16mm | 22mm |
| Genuine Leather | 0.8mm | 1mm | 1.5mm | 2mm | 4mm |
| Faux Leather | 2.3mm | 2.7mm | 3mm | 3.5mm | 6mm |
| Fabric | 2.5mm | 3mm | 3.2mm | 3.3mm | 6mm |
| Rubber Board | 0.8mm | 1mm | 1.5mm | 2mm | 4mm |
| Resin | 1mm | 1.5mm | 2mm | 2.5mm | 5mm |
| MDF | 4mm | 5-6mm | 6.5-7mm | 8.0-10mm | 15mm |
| Parameter | Specifications |
|---|---|
| Model | CW-640 / CW-960 / CW-1390 / CW-1610 / CW-1810 / CW-1910 |
| Working Area | 600×400 / 900×600 / 1300×900 / 1600×1000 / 1800×1000 / 1900×1000 mm |
| Laser Power | 40W–100W (standard), supports up to 300W (optional) |
| Laser Type | Sealed CO₂ Laser Tube |
| Cutting Speed | 0–800 mm/s |
| Engraving Speed | 0–1000 mm/s |
| Positioning Accuracy | < ±0.02 mm (CW-640/960/1390), < ±0.01 mm (CW-1610/1810/1910) |
| Supported Formats | DST, PLT, BMP, DXF, AI, LAS, DWG, etc. |
| Working Voltage | 220V ±10%, 50Hz / 60Hz |
| Cooling System | Forced Water Cooling Protection System |
| Total Power | 1500W |
| Operating Conditions | Temp: 1°C–45°C | Humidity: 5–95% |
| Optional Configurations | CCD Vision, Multi-head, Auto-Feeding, Stainless Steel Table |
| Model | Working Area | Recommended Applications | Best For |
|---|---|---|---|

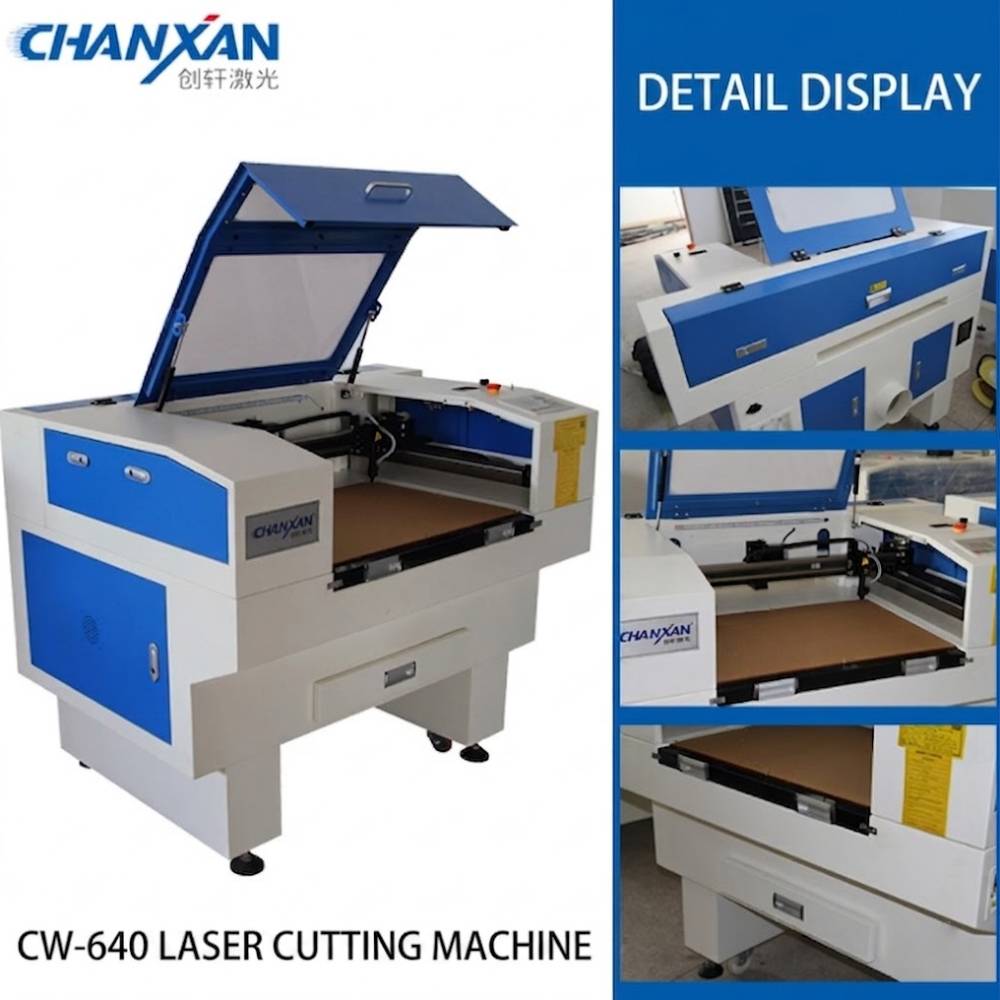

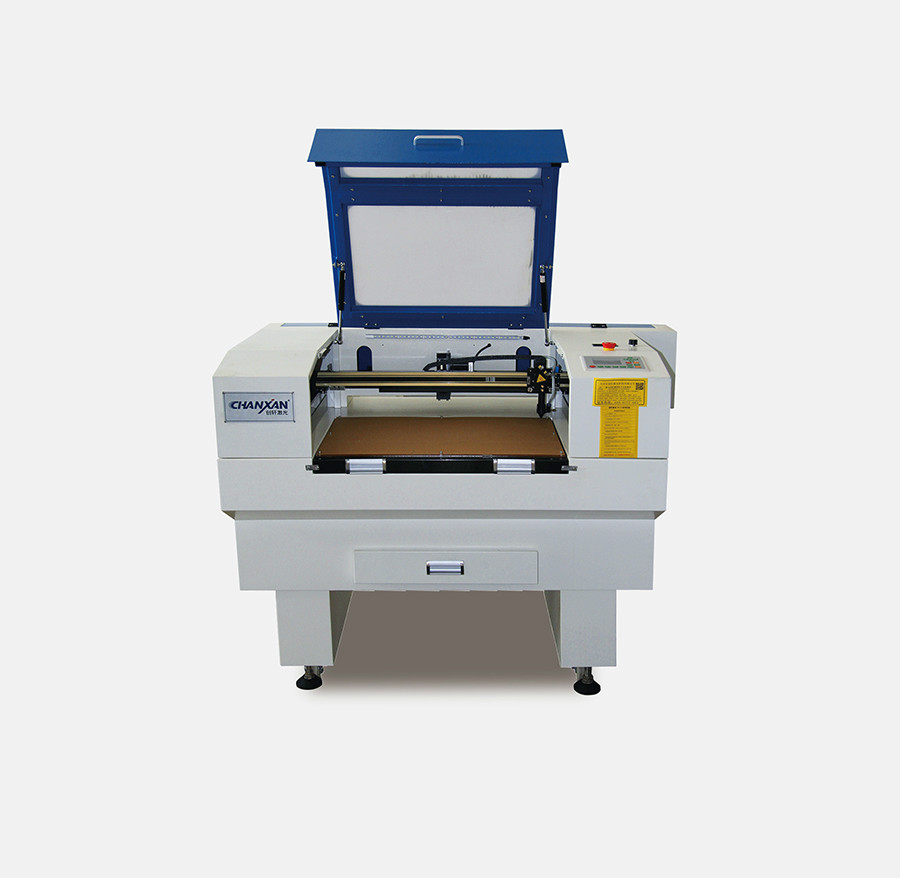

| CW-640 | 600 × 400 mm | Small-format precision cutting, crafts, prototyping | Gifts, jewelry, engraving |
| CW-960 | 900 × 600 mm | Light guide plates, plastic cutting, accessories | Signage, small batch production |
| CW-1390 | 1300 × 900 mm | Acrylic sheets, advertising letters, MDF cutting | Advertising, acrylic fabrication |

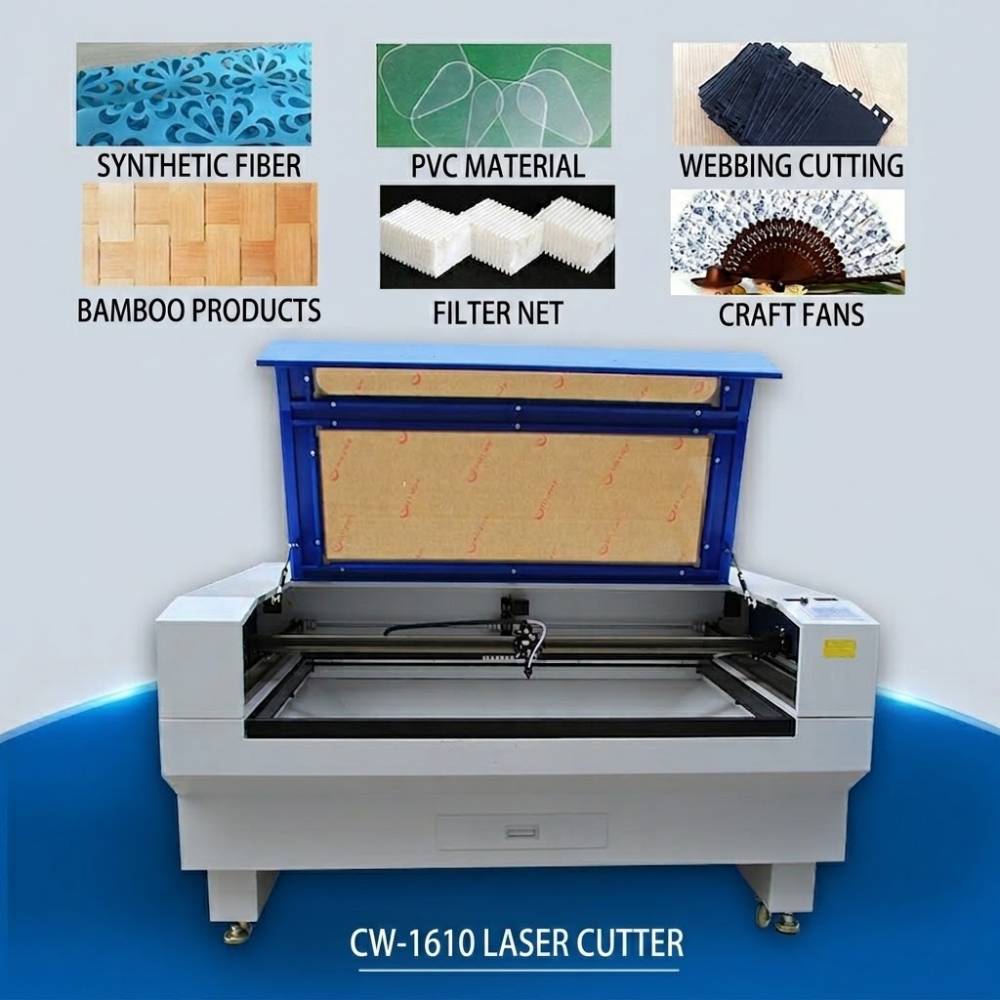

| CW-1610 ⭐ | 1600 × 1000 mm | Garment cutting, textile processing, blanking | Apparel & footwear manufacturing |
| CW-1810 | 1800 × 1000 mm | Large-format textile cutting, upholstery | High-efficiency garment production |
| CW-1910 | 1900 × 1000 mm | Continuous production, mass flexible material | Automation, large sheet processing |
