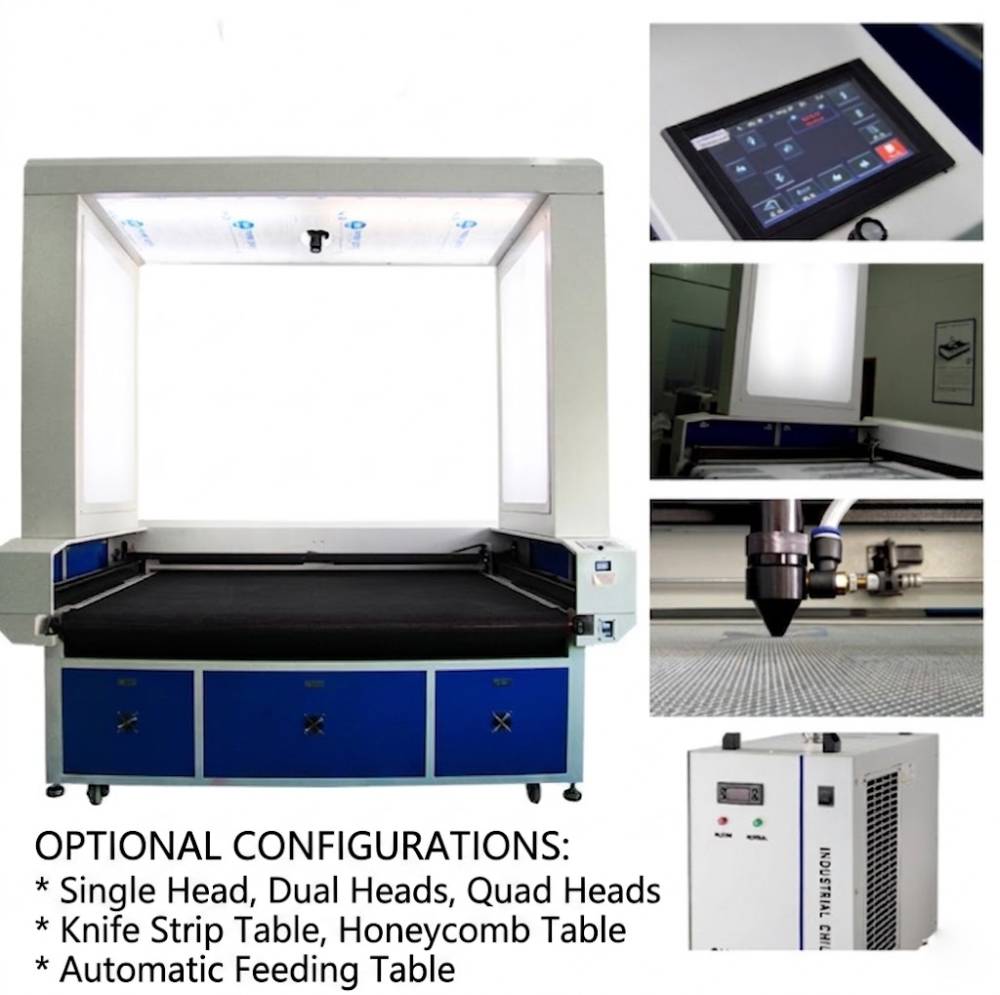

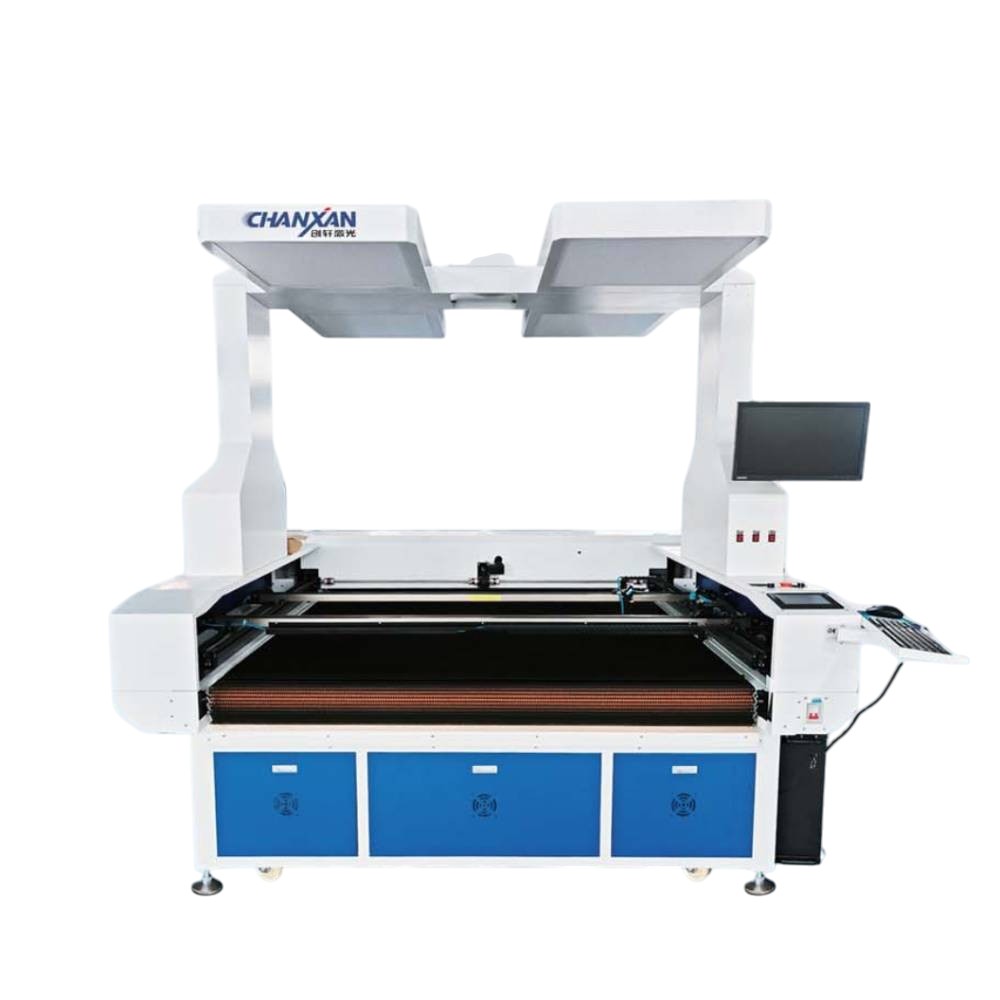

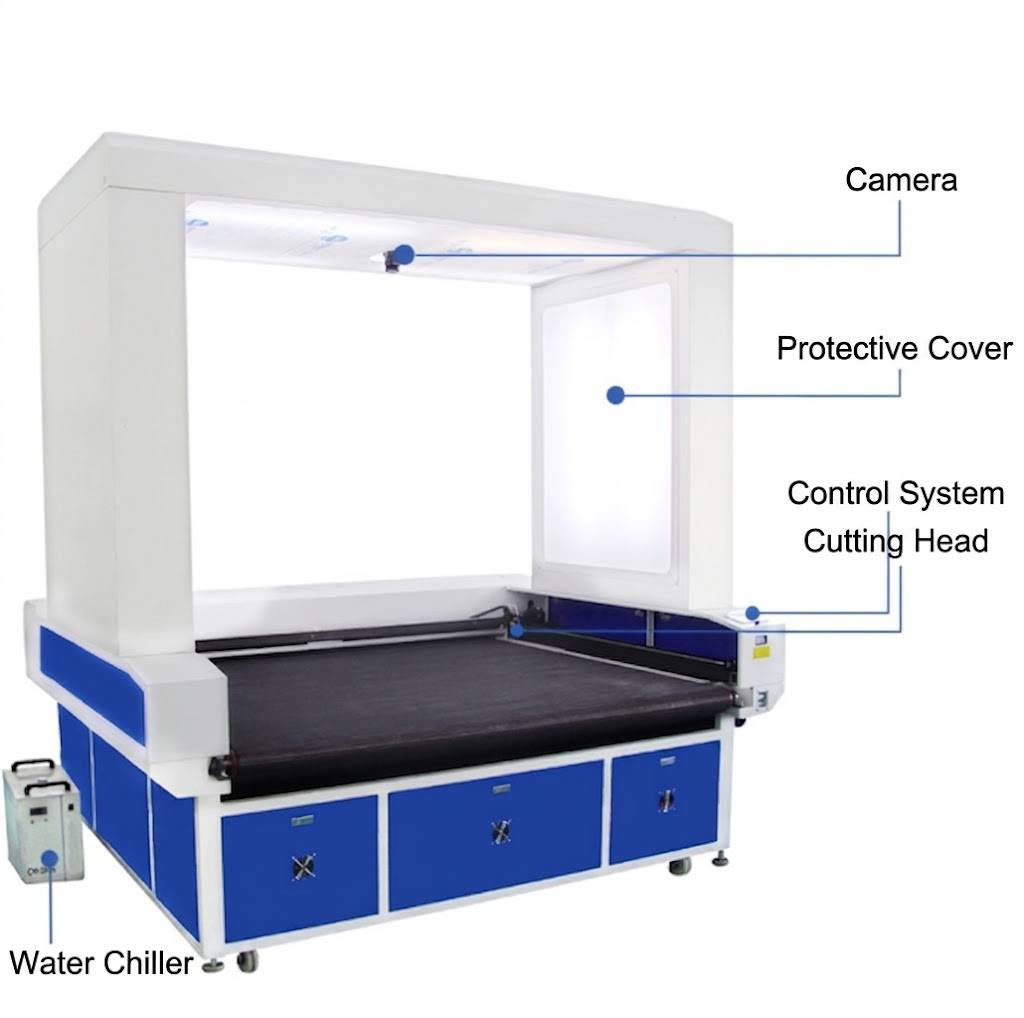

CW/X-1814FSS
Continuous high-speed cutting of flexible/thin materials (fabric, leather, paper); precision machining of complex graphics (hollowed-out patterns, small text), etc.
1. The software recognizes the outline of the graphic, automatically generates the cutting path, and completes the cutting. It avoids the waste of materials and time caused by inaccurate positioning.
2. Supports setting camera calibration offset compensation, corrects and identifies the overall offset that occurs after the equipment has been running for a period of time, and ensures accurate graphic cutting
3. Adopts the margin control method, uses the sensor probe to detect the length of the fabric margin, automatically turns on and off the feeding motor, and achieves free and non-stretching conveying of the fabric.
4. With high-pixel-density capture, the maximum recognition area can reach 4 square meters.
5. It moves several to dozens of times faster than the traditional mechanical XY platform, greatly shortening the cutting time.
| Parameter / Model | CW/X-1814FSS |
|---|---|
| Model | CW/X-1814FSS |
| Working Area | 1700 × 1200 mm |
| Laser Power | Optional 80–300 W |
| Laser Type | CO₂ Laser Glass Tube / CO₂ RF Metal Laser Tube (Optional) |
| Laser Energy Control | 0–100% Software Adjustment |
| Galvanometer Processing Speed | 0–8000 mm/s |
| Cutting Speed | 0–800 mm/s |
| Cooling System | Water Cooling System |
| Total Machine Power | 3000 W |
| Control System | Chanxan Professional Laser Intelligent Identification System |
| Camera Type | Industrial HD Camera |
| Supported Graphic Formats | DST, PLT, BMP, DXF, DWG, AI, LAS |
| Supported Software | TAJIMA, CorelDRAW, Photoshop, AutoCAD |
| Drive System | Servo Motor and Module |
| Accessories | Exhaust Fan and Pipe |
| Working Voltage | 220V ±10%, 50Hz (60Hz) |
| Working Conditions | Temperature: 1–45°C, Humidity: 5–95% |
| Machine Weight | 800 kg |
Designed for continuous high-speed cutting and precision processing of flexible and thin materials, the system is ideal for industries requiring high efficiency, fine detail, and automated recognition.
It supports precision cutting, perforation, and contour processing for:
Textiles and apparel materials — fabric, lace, sportswear fabrics, denim, felt, embroidery patches, labels, and garment accessories
Leather and synthetic leather — genuine leather, PU leather, microfiber leather, footwear uppers, automotive interiors, and fashion accessories
Paper and packaging materials — cardboard, specialty paper, paper crafts, packaging templates, invitations, and decorative cutting
Technical and industrial flexible materials — films, nonwoven fabrics, insulation materials, filter materials, adhesive tapes, and composite soft materials
Advertising and decorative materials — acrylic films, display graphics, signage components, decorative patterns, and customized visual elements
The machine is especially suitable for:
Continuous high-speed cutting of roll materials
Precision machining of complex graphics, including hollow patterns, sharp corners, intricate contours, and small text
Automatic contour recognition and positioning for printed graphics and patterned materials
Mass production of customized products with consistent cutting quality and reduced material waste
