CW-2530F

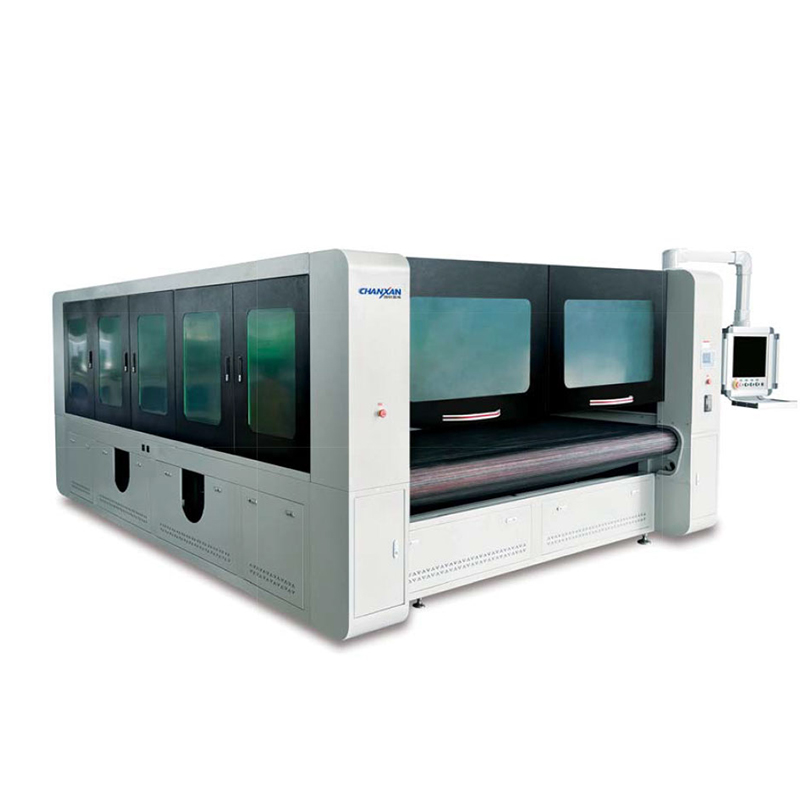

The CW-2530F Flexible Fabric Laser Cutting Machine is designed for precision cutting and perforation of technical flexible materials, including automotive airbag fabrics, PPS materials, filtration media, insulation fabrics, and functional membranes. With high-speed rack-and-pinion transmission, dual-head expandability, intelligent nesting software, and clean non-contact cutting, it ensures stable accuracy, reduced material stress, and high production efficiency.
A specialized high-performance solution for technical flexible materials. Utilizes advanced rack and pinion transmission to achieve superior efficiency and precision in industrial textile manufacturing.
Utilizes a rack and pinion transmission structure with high-speed, double-sided synchronous drive, achieving three times the cutting efficiency of traditional belt conveyors.
Steel frame structure, integral welded structure, stress-free treatment ensures machine tool deformation tolerance is within 0.02mm.
Can be equipped with dual laser heads to meet different production needs and significantly increase throughput.
The distributed ventilation system effectively absorbs cutting dust particles, achieving clean and environmentally friendly cutting.
Professional graphic cutting and nesting software with mixed material nesting function for optimized material utilization.

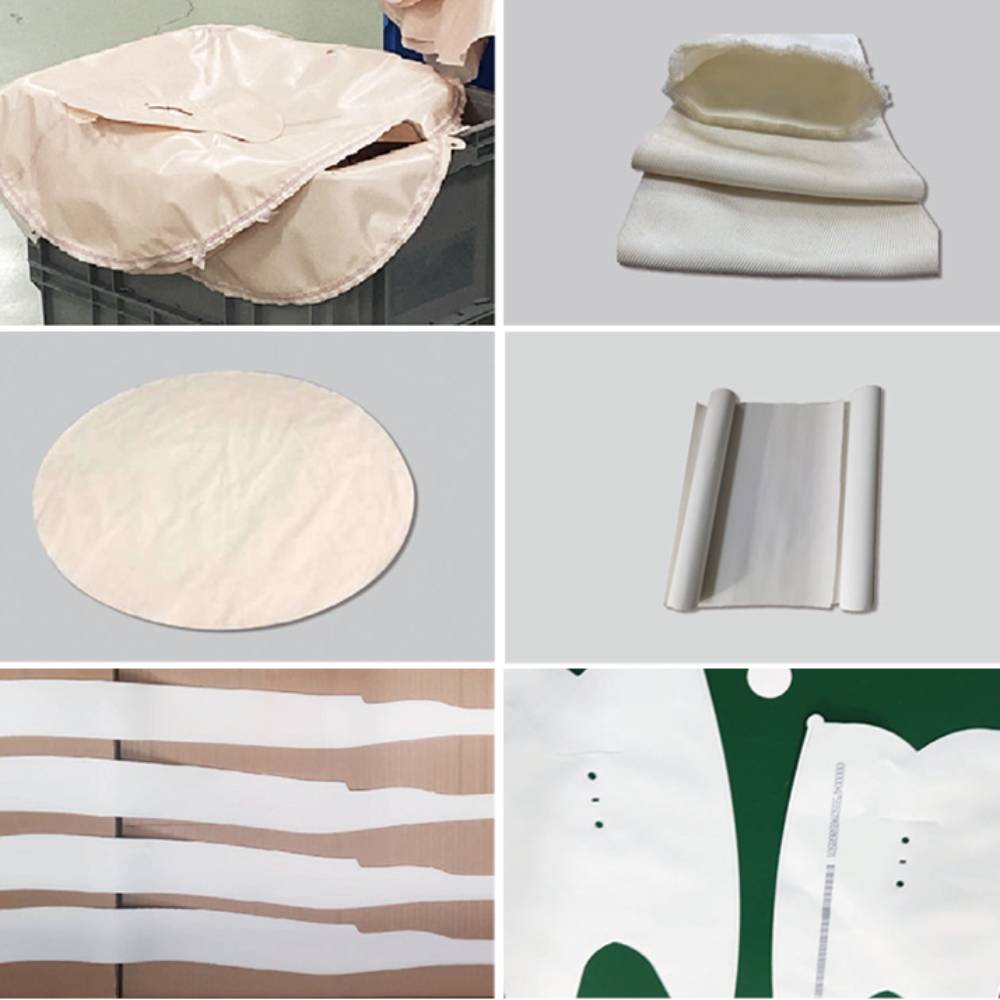

Flexible fabric laser cutting machines are mainly used for the precision cutting and perforation of technical flexible materials. Laser processing provides non-contact cutting, reduced material stress, cleaner edges, and higher production consistency.

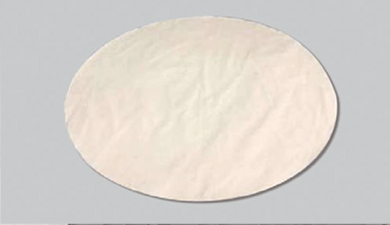

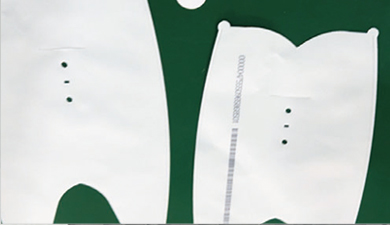

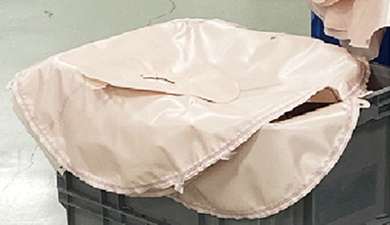

Automotive Airbag Fabric Cutting
Hydrogen Energy Diaphragm Processing
Industrial Textiles & Filtration Materials
Insulation Fabrics & Composite Soft Materials
Functional Membranes & Technical Textiles
PPS (Polyphenylene Sulfide) Fabrics
Technical Flexible Materials
Filtration & Insulation Fabrics
Composite Soft Materials

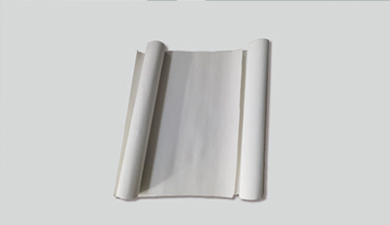

Functional Membranes
| Parameter Item | Details (CW-2530F) |
|---|---|
| Model | CW-2530F |
| Laser Type | CO₂ Laser |
| Laser Wavelength | 10.6 μm |
| Output Power | 130–350 W |
| Processing Area | 2500 × 2500 mm |
| Positioning Accuracy | ±0.01 / 1000 mm |
| Cooling Method | Water Cooling |
| Working Voltage | AC 220V ±10%, 50Hz / 60Hz |
| Total Machine Power | 2000 W |
| Machine Weight | 7000 kg |
| Machine Dimensions (L × W × H) | 3900 × 2900 × 2050 mm |
Empowering global manufacturing with 14+ years of expertise, dual CE & ISO certified quality, over 100 national patents, and a comprehensive Technical Training Service designed for your operational success.
Systematic Training: Comprehensive full-process skill coverage.
Expert Support: Continuous project follow-up by senior engineers.
Multiple Formats: Flexible learning modes to maximize operational efficiency.
Outcome Driven: Empowering clients from "knowing" to "mastering" technology.
24H Fast Response: Technical diagnosis and solutions within 24 hours.
Warranty Policy: 1-year machine warranty with lifetime technical support.
Global Parts Supply: Rapid delivery of original parts via global network.
Lifecycle Care: From installation to long-term maintenance and software upgrades.
In-depth analysis of your specific material and performance requirements.
Precision laser sampling to verify the feasibility of the technical solution.
Bespoke manufacturing under ISO9001 quality management systems.
Final testing, professional wooden packing, and secure global shipment.
