CX-N-301

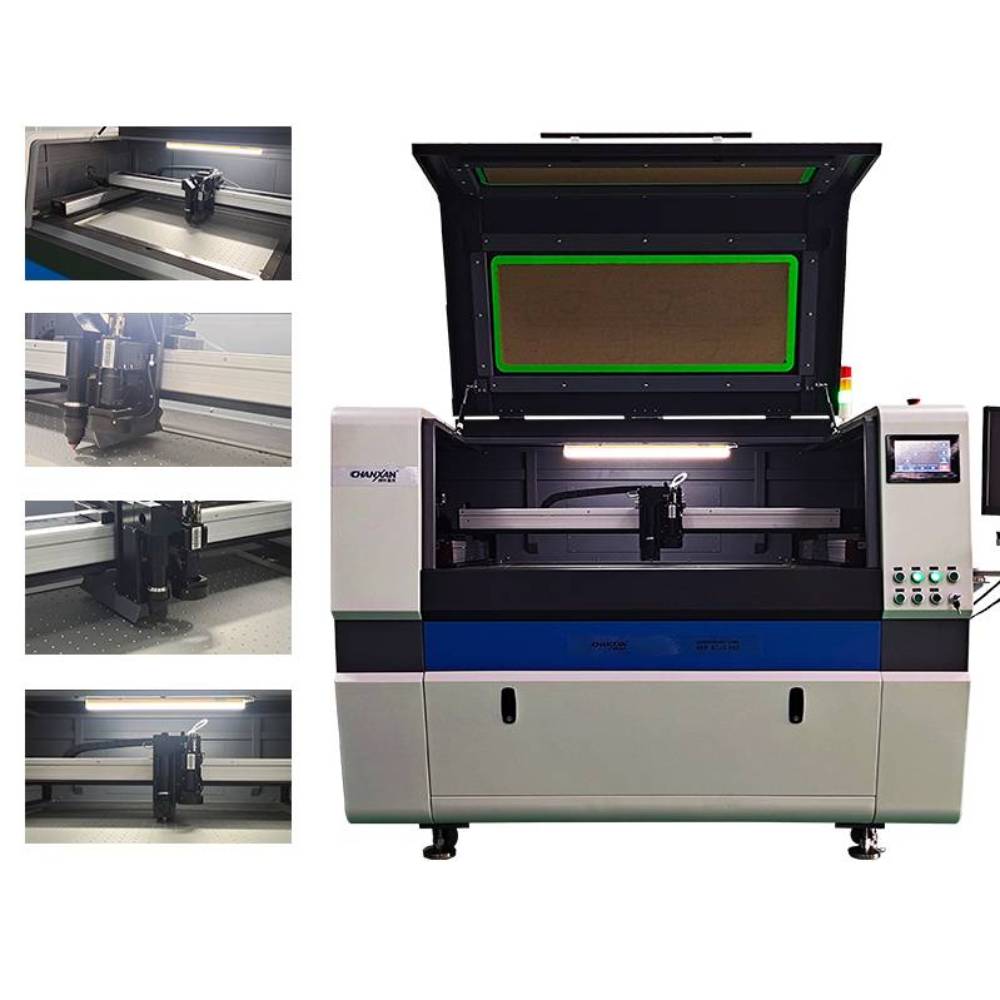

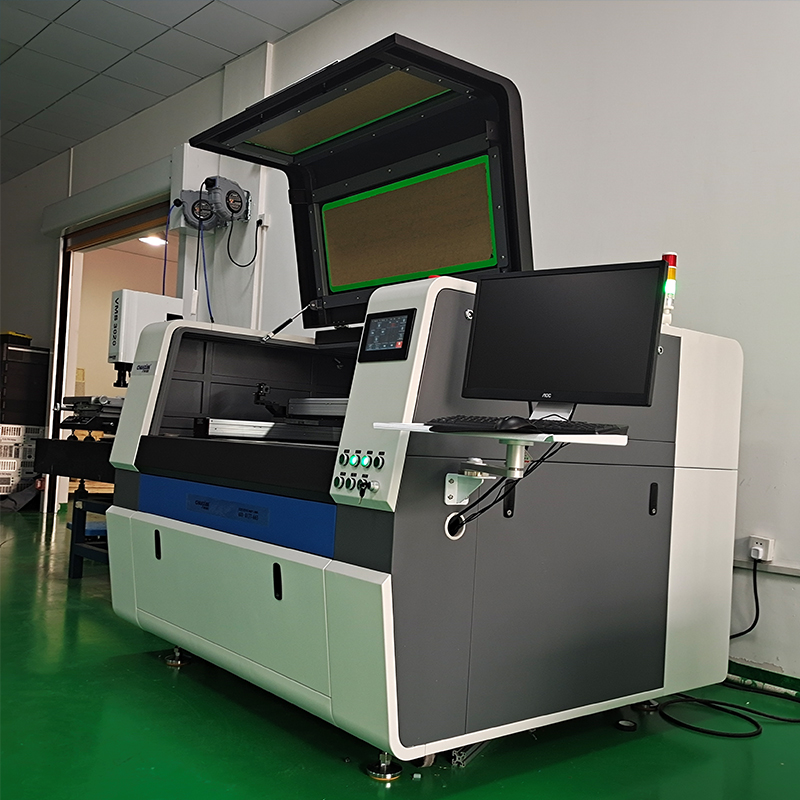

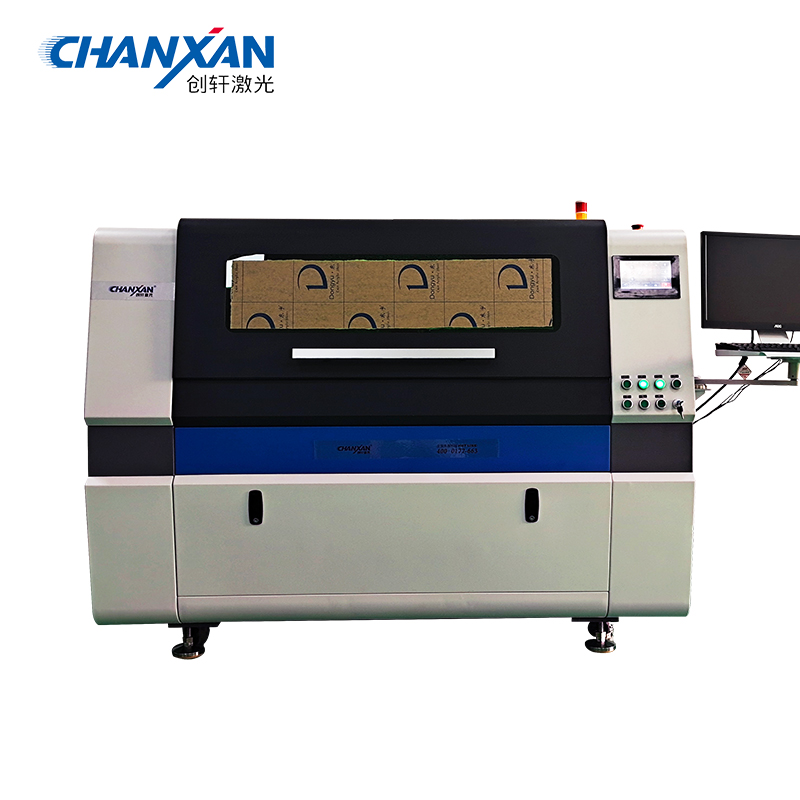

The laser cutting machine for injection molding sprues is equipped with a module guide rail device to ensure stable machine operation.
It features a servo motor, effectively improving cutting speed and accuracy.
A crossbeam protection device prevents damage to the guide rails and racks during cutting, extending their service life.
1. Exclusive technology development avoids the yellowing and blackening of edges common in traditional laser cutting.
2. High-performance motherboard, anti-interference, more comprehensive data output, power-off resume carving, and slope carving.
3. Fast curve cutting function: Enables rapid, continuous cutting of any curve.
4. Features power, frequency, and speed tracking functions, effectively reducing burrs on corner edges...
5. Software-designed path optimization schemes can be implemented as needed to shorten processing time and improve efficiency.
6. Optional accessories, such as cameras and stainless steel base plates, can be added to enhance processes or efficiency based on requirements or industry needs.
| Parameter / Model | CX-N-301 |
|---|---|
| Product Name | CO₂ Laser Sprue Cutting Machine |
| Processing Area | 900 × 600 mm |
| Laser Power | 60 / 80 W |
| Laser Type | Sealed CO₂ Laser Tube |
| Cutting Speed | 0–800 mm/s |
| Engraving Speed | 0–1000 mm/s |
| Positioning Accuracy | < 0.02 mm |
| Supported File Formats | DXF, PLT, BMP, AI, HML, DST, etc. |
| Working Voltage | 220V ±10%, 50Hz / 60Hz |
| Cooling System | Forced Water Cooling Protection System |
| Total Machine Power | 1500 W |
| Machine Weight | 350 kg |
| Operating Temperature | 1°C–45°C |
| Operating Humidity | 5–95% (Non-Condensing) |
| Machine Dimensions (L × W × H) | 1600 × 1350 × 1120 mm |

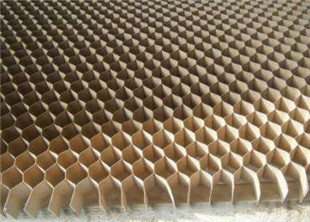

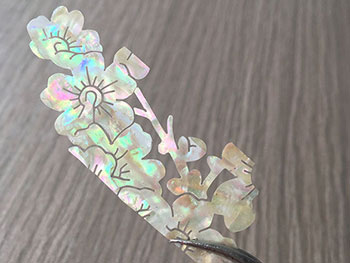

Applicable Materials: Plastics, acrylic, leather, fabrics, rubber, bamboo and wood, bags, clothing, shoes, toys, and luggage, etc., for engraving and cutting.

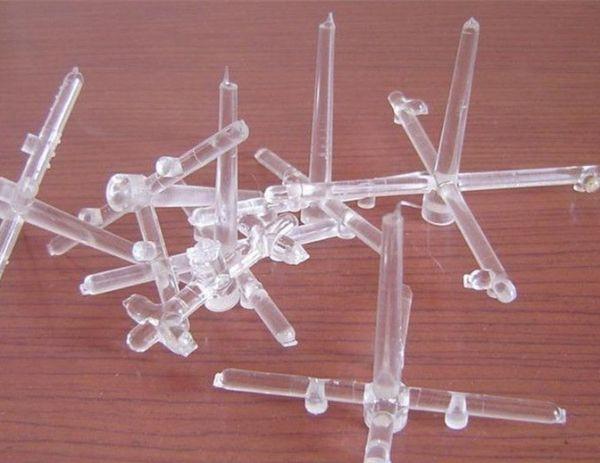

Applicable Industries: This CO2 laser cutting machine is suitable for cutting sprue marks on injection molded parts, clothing and leather goods, fabric toys, computer embroidery cutting, denim clothing, embroidered home textiles, template cutting, and paper product cutting, as well as plastic parts cutting.
Applications
