CW-3W1280
The combination of industrial robots and lasers enables a single-pass processing step, resulting in clean cuts that eliminate the need for subsequent processing. This significantly shortens the process flow, reduces labor costs and mold expenses, and enhances product quality and added value. The use of industrial robots also substantially reduces system costs, including power consumption, operation and maintenance, and floor space requirements.
Five-axis linkage, 3D programming, simple and easy to learn operation, adept at complex 3D cutting of various materials.
Laser cutting is non-contact, stress-free, requiring simple positioning fixtures with low cost and reusable fixtures.
The system learns motion trajectory, adjusts parameters, and generates program files downloaded to the control card for precise processing.
Smooth cutting edges, burr-free, high precision, high speed, high efficiency, and labor-saving.

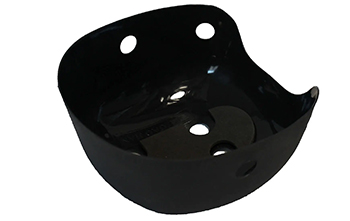

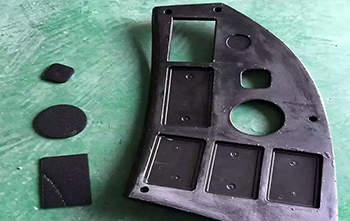

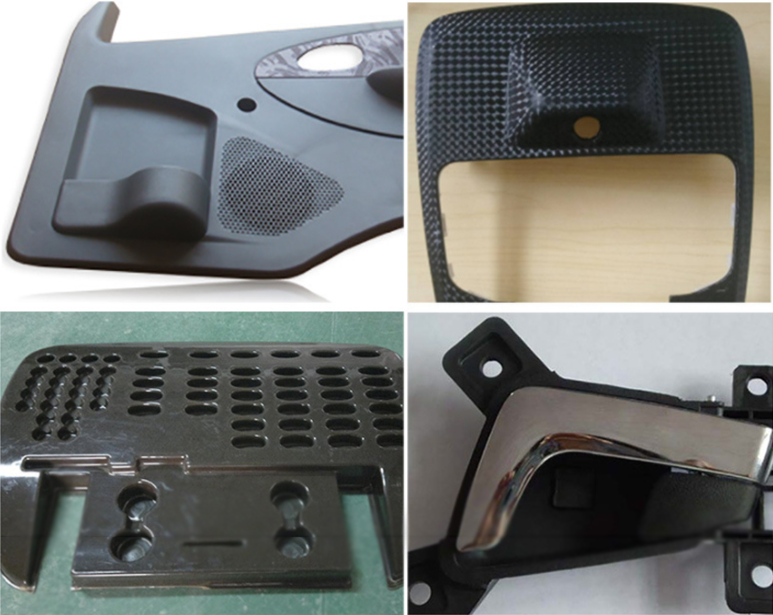

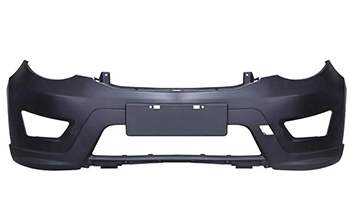

Mainly used for automotive interior plastic parts, home appliance plastic parts, bicycle helmet cutting and hole drilling, shoe heels, blister toys, underwear, models, masks, automotive molds, for trimming automotive interior parts, aluminum-plastic parts, plastic parts, blister parts, blister acrylic (plexiglass) trimming, and one-time three-dimensional cutting of semi-finished products and irregularly shaped parts such as PP, PA, PUR, PBT, PET, PE, TPU, ABS, PVC, and PC.
| Parameter Name | Specification (CW-3W1280) |
|---|---|
| Product Name | 3D 5-Axis Laser Cutting Machine |
| Laser Power Control | 0–100% Power Adjustment |
| Laser Type | CO₂ Glass Tube Laser |
| Maximum Curve Speed | 6000 mm/min |
| Positioning Accuracy | < 0.2 mm |
| Cutting Principle | DMP Teaching-Based Cutting |
| Cutting Speed | 0–4000 mm/min |
| Dimensions (L × W × H) | 1200 × 800 × 500 mm |
