CX-N-D-01

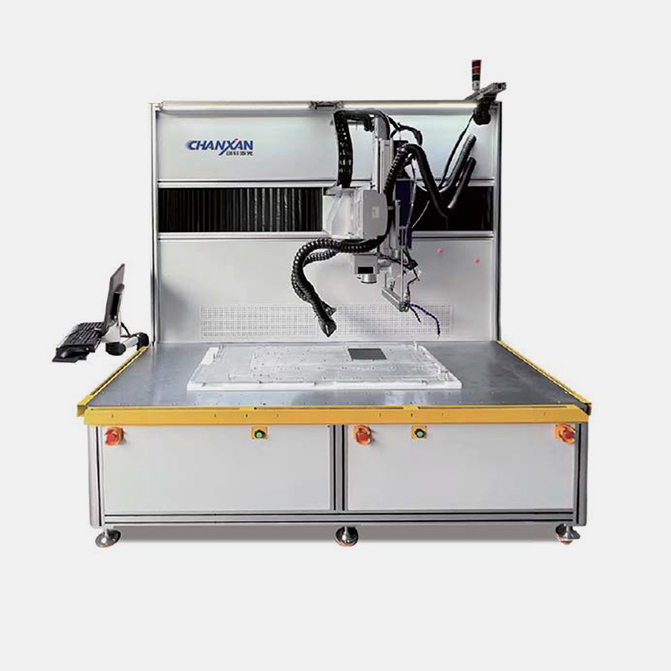

Designed for efficient industrial surface treatment, this fiber laser cleaning machine provides high-quality rust removal, paint stripping, and precision cleaning with low emissions and no consumables. Capable of cleaning hot and cold molds, it offers a cost-effective, eco-friendly alternative to traditional cleaning methods.
A high-power industrial solution for non-contact rust removal, paint stripping, and mold cleaning. Utilizing ≥1000W fiber laser technology to deliver exceptional cleanliness without consumables or damage to the base material.
Achieves industrial-grade cleanliness across various surfaces. The non-contact process effectively removes rust, paint, and oxides while ensuring zero damage to the underlying substrate.
Designed for sustainable industrial operation with low emissions throughout the entire cleaning process. An environmentally friendly alternative to chemical cleaning or sandblasting.
Eliminates the need for water, dry ice, sand, or chemical agents. This dry cleaning process significantly reduces operational costs and simplifies waste management.
Specifically engineered to clean both hot and cold molds—including compression, injection, and offline molds—minimizing downtime in manufacturing cycles.
Features low operating costs and high energy efficiency. The long-life fiber laser source ensures minimal maintenance and a high return on investment for industrial facilities.

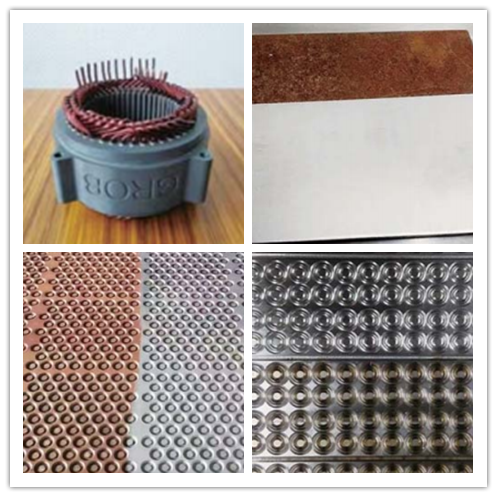

Designed for high-efficiency, non-contact surface treatment and precision cleaning across a wide range of industrial applications, from large-scale rust removal to selective paint stripping for new energy components.

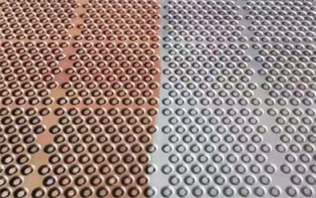

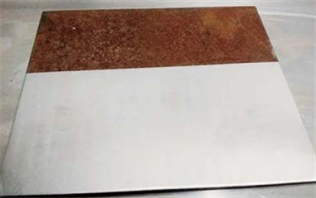

Industrial Metal Rust & Oxidation Layer Removal
Automotive & Industrial Equipment Paint Stripping

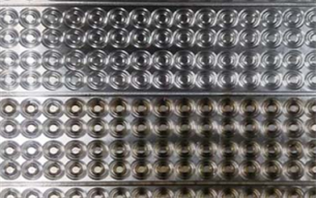

Injection & Compression Mold Surface Cleaning

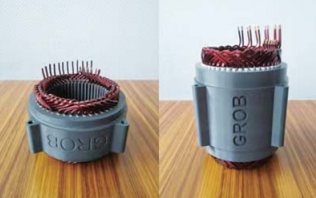

EV Battery Conductive Circuit Selective Stripping
Pre-Welding & Pre-Coating Surface Treatment
Oil & Contaminant Removal from Precision Components
Aerospace & Marine Manufacturing
Automotive & EV Battery Production
Industrial Mold & Tooling Maintenance
Steel Structure & Infrastructure Refurbishment
Precision Machinery & Electronic Components
| Parameter Item | Specifications (CX-N-D-01) |
|---|---|
| Model | CX-N-D-01 |
| Laser Type | High-Power Fiber Laser |
| Laser Wavelength | 1064 nm |
| Laser Output Power | ≥ 1000W / 500W |
| Power Adjustment Range | 10–100% Adjustable |
| Fiber Cable Length | 10–15 m |
| Single Pulse Energy | ≥ 100 mJ / ≥ 50 mJ |
| Cleaning Width (Single Pass) | > 160 mm |
| Service Life | ≥ 8,000 Hours |
| Cooling Method | Integrated Water Cooling |
| Machine Dimensions | 5300 × 4000 × 2800 mm |
| Power Supply Requirements | AC 220V ±10%, 50Hz / 60Hz |
Empowering global manufacturing with 14+ years of expertise, dual CE & ISO certified quality, over 100 national patents, and a comprehensive Technical Training Service designed for your operational success.
Systematic Training: Comprehensive full-process skill coverage.
Expert Support: Continuous project follow-up by senior engineers.
Multiple Formats: Flexible learning modes to maximize operational efficiency.
Outcome Driven: Empowering clients from "knowing" to "mastering" technology.
24H Fast Response: Technical diagnosis and solutions within 24 hours.
Warranty Policy: 1-year machine warranty with lifetime technical support.
Global Parts Supply: Rapid delivery of original parts via global network.
Lifecycle Care: From installation to long-term maintenance and software upgrades.
In-depth analysis of your specific material and performance requirements.
Precision laser sampling to verify the feasibility of the technical solution.
Bespoke manufacturing under ISO9001 quality management systems.
Final testing, professional wooden packing, and secure global shipment.
