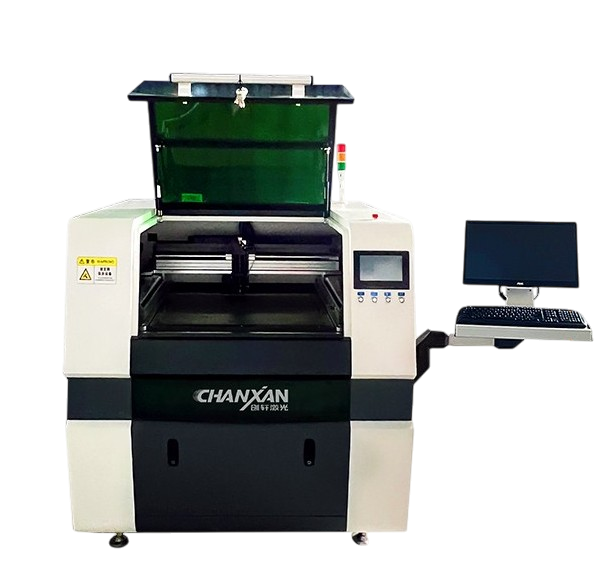

CW-650R
Precision CO₂ laser cutting solution for film materials, electronic materials, and non-metal flexible materials across multi-industry applications. It delivers clean, burr-free cutting and kiss-cutting, and supports efficient production from prototyping to mass manufacturing.
This CO₂ laser cutter system optimizes energy absorption and coupling to reduce edge curling and thermal deformation. Engineered for precision processing of electronic films, optical materials, and medical polymers, it enables high-precision cutting and kiss-cutting with clean edges and consistent quality.
The imported laser and optical system ensures precise positioning, smooth edges, high microhole roundness, and no overburn, reducing defect rates.
Advanced software supports layered cutting and rapid job changes, enabling efficient handling of small, medium, and large batch production.
Optimized motion control and laser energy management minimize HAZ and ensure uniform cutting quality, reducing rework costs.

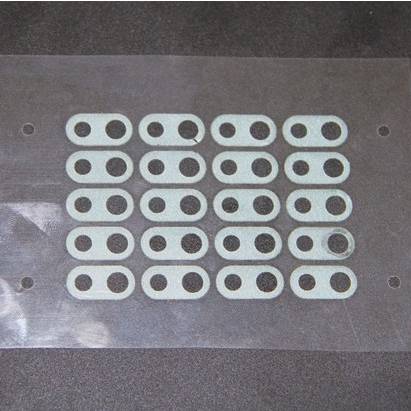

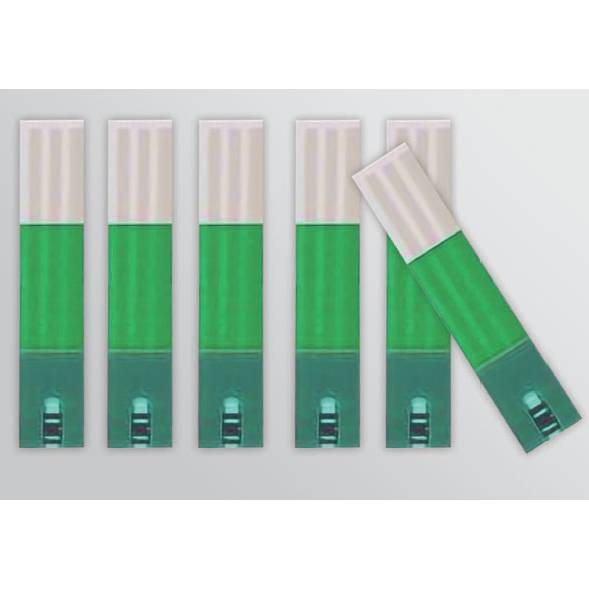

Visualizing high-quality edge finishes and intricate laser processing results.
Chanxan's high-precision laser systems are engineered for the most demanding production environments.
Precision cutting of electronic films such as OCA optical adhesive, PET films, polarizers, FPC, protective films, and materials used in smartphones, tablets, and electronic components.
Processing of self-adhesive materials, coated paper, kraft paper, thermal paper, PVC, PET, PP, PC, synthetic paper, aluminum foil paper, and label fabrics (Tyvek, nylon).
High-accuracy processing of touch screen PET, optical films, electronic paper (e-paper), flexible OLED films, polarizers, and cover films, ensuring smooth edges and stable quality.

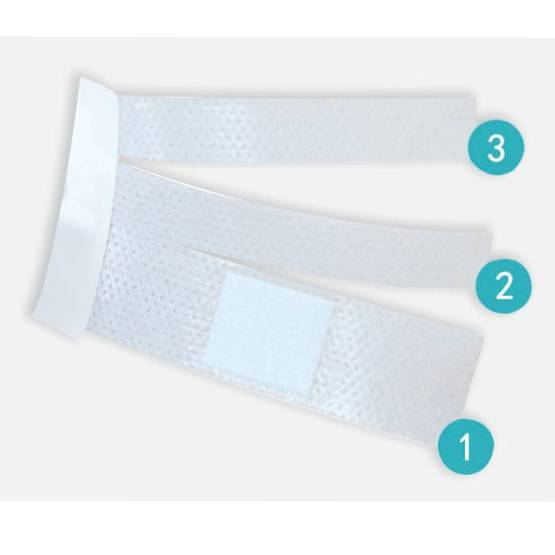

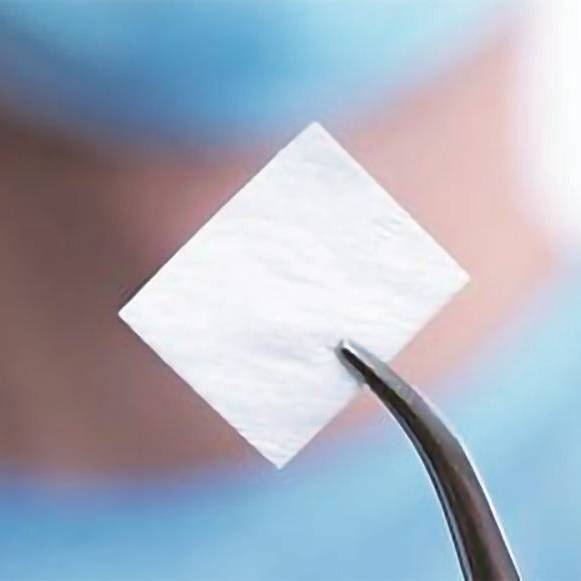

Cutting of medical polymer materials including hydrogel patches, cooling patches, eye masks, fever patches, adhesive medical films, with clean edges and support for full-cut and kiss-cut processes.

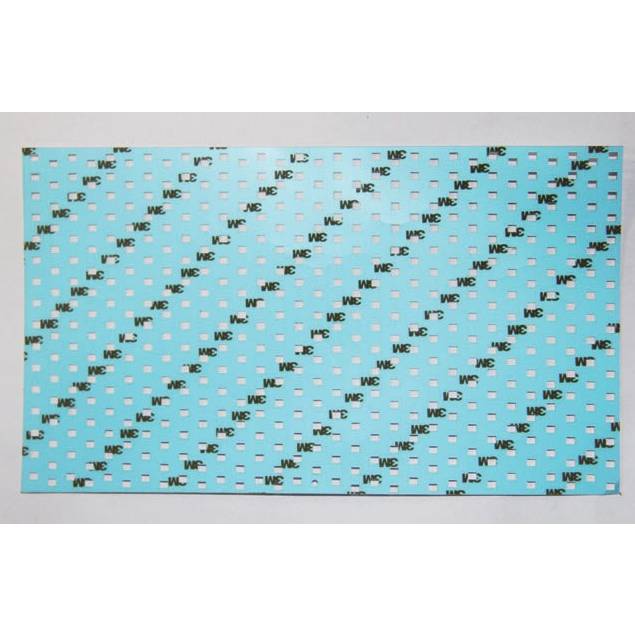

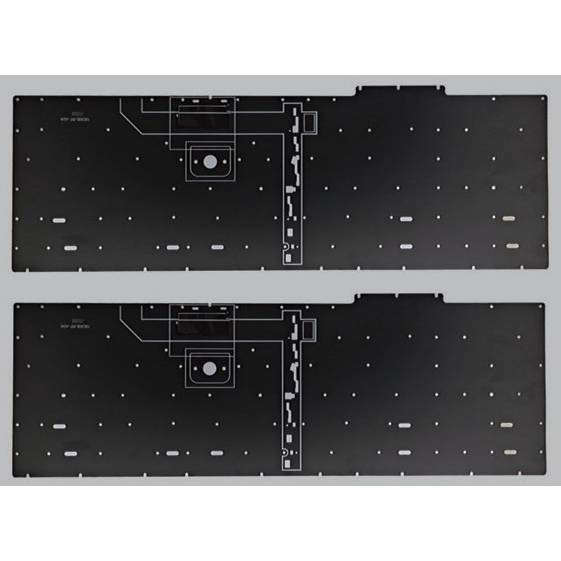

Precision cutting and kiss-cutting of insulating films, adhesive films, release films, shielding films, composite functional films, and other electronic-grade materials.
High-precision cutting of PET, PC, PVC, ABS, PE, PP, BOPP, nylon films, plastic films, optical films, and composite films for various industrial applications.
Our advanced ultrafast laser processing technology ensures ideal results on a wide range of materials.
| Features / | Parameters / |
|---|---|
| Model | CW-650R |
| Laser Type | Imported CO2 Hermetic RF Tube |
| Laser Power | 30W - 150W (Optional) |
| Working Area | 600 x 500mm |
| Positioning Accuracy | ≤ ± 0.01mm |
| Cutting Speed | 0 - 40000mm/min |
| Engraving Speed | 0 - 60000mm/min |
| Maximum Moving Speed | 1000mm/s |
| Drive System | Imported Servo Motor System |
| Control Software | DSP Control System |
| Supported Formats | DXF, PLT, BMP, AI, HML, DST |
| Cooling System | Water / Air Cooling Protection System |
| Working Environment | Temperature: 1°C - 45°C | Humidity: 5% - 95% |
| Power Requirement | AC 220V ±10%, 50Hz / 60Hz |

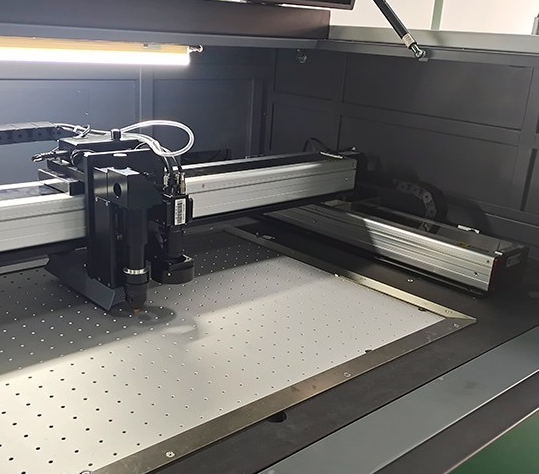

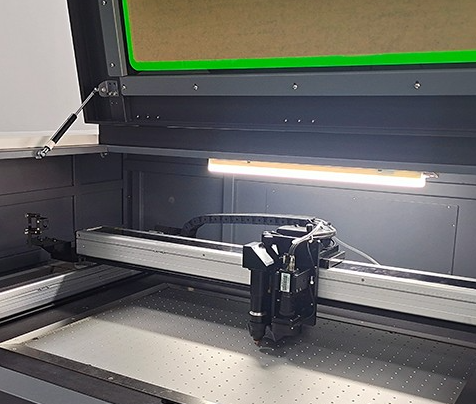

Core components engineered for precision, stability, and long-term industrial performance.
Designed for performance, precision, and reliability in industrial environments.

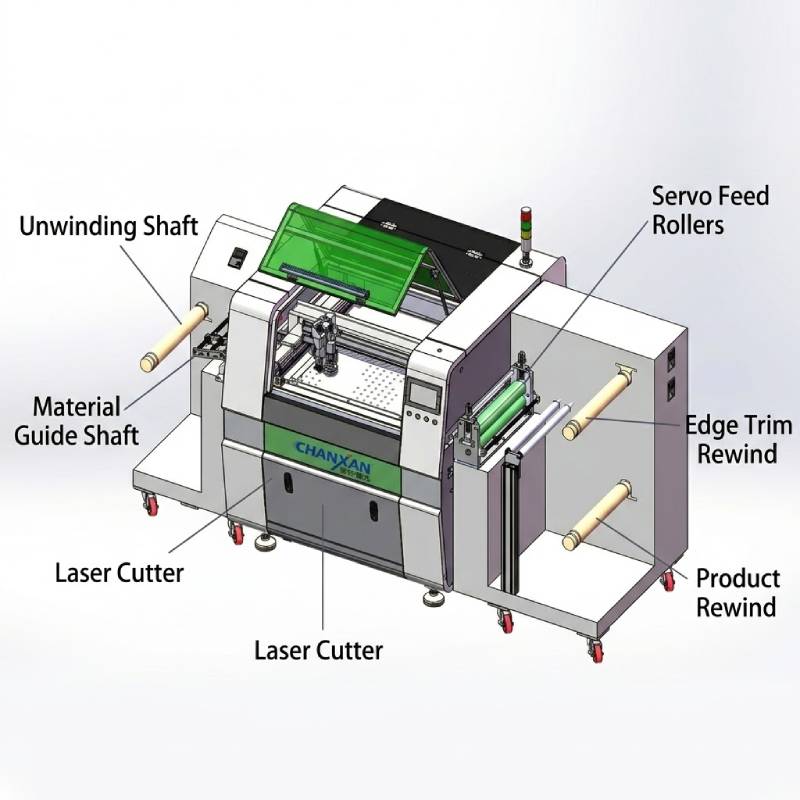

Subscriber：High-Precision CO2 Laser Non-Metal Cutting Machine
