CW/P-1615TTF

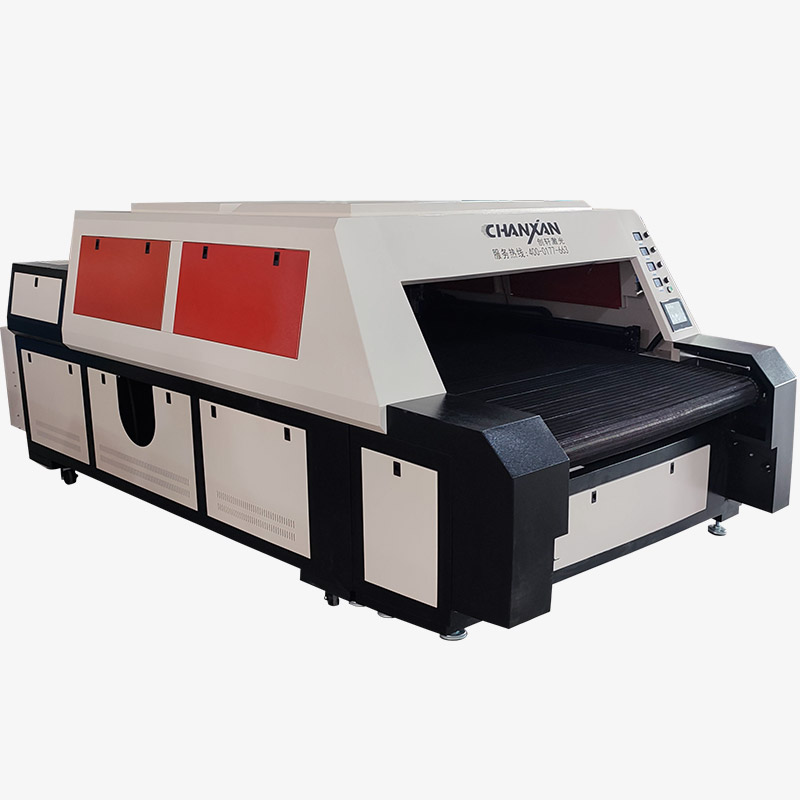

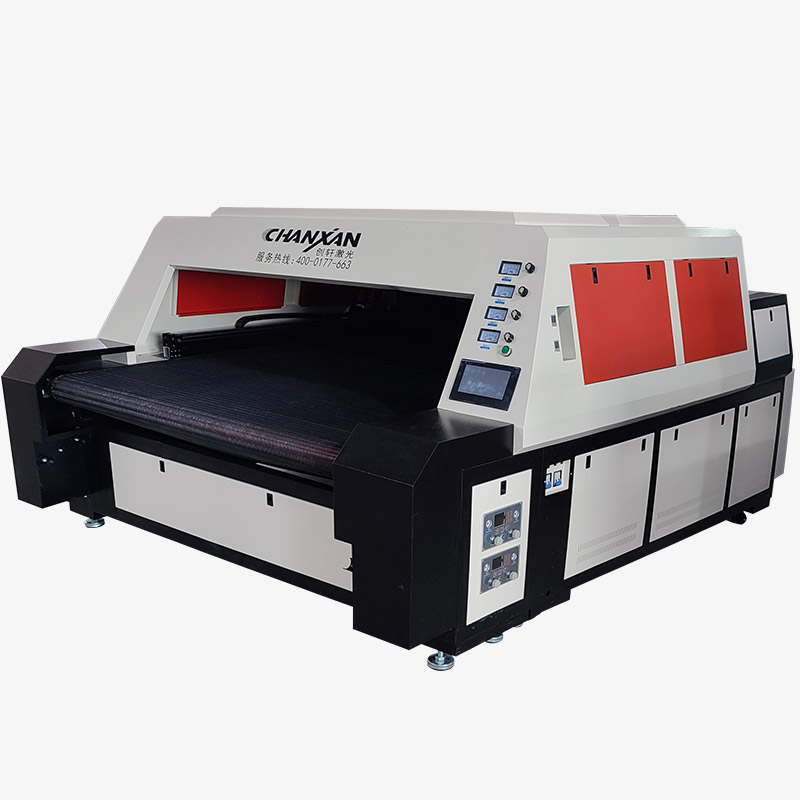

The Automatic Shoe Upper Marking Machine revolutionizes traditional footwear production by replacing labor-intensive processes such as manual marking and screen printing. By eliminating the need for printing plates, it significantly reduces tooling costs while improving production efficiency.
1. The marking machine features an automatic loading and unloading device. After automatic marking on the shoe upper, the machine automatically feeds out the marked and cut pieces.
2. The marking machine boasts a high degree of automation. Workers only need to place the roll of material on the machine, which automatically pulls and discharges it before high-speed marking. After marking, it performs precise laser cutting and feeding.
3. It uses imported high-speed spray valves, suitable for various types of inks: high-temperature disappearing in
ks and water-soluble inks for automatically disappearing marking lines on shoe uppers. It also offers special functions such as fluorescent inks and permanent inks. Customers can choose according to their needs.
4. The shoe upper marking line ink uses a proprietary formula that disappears at 60℃ and does not revert at -10℃.
5. The fully automatic intelligent marking and spraying speed reaches 800-2000mm/s, saving companies all marking labor and die-cutting costs.
| Specification | Details |
|---|---|
| Model | CW/P-1615TTF |
| Laser Source / Power | CO₂ Laser, 130W |
| Working Area | 1600 × 1200 mm |
| Drive System | Servo Motor + Belt Drive System |
| Max. Motion Speed | 0–500 mm/s |
| Repeat Positioning Accuracy | ≤ ±0.05 mm |
| Positioning Accuracy | ≤ ±0.02 mm |
| Cutting Accuracy | ≤ ±0.1 mm (depending on material type) |
| Machine Dimensions (L × W × H) | 3160 × 2240 × 1420 mm |
The Automatic Shoe Upper Marking Machine is designed for high-precision marking and cutting of footwear upper materials, making it ideal for modern shoe manufacturing with high efficiency, consistency, and reduced production costs.

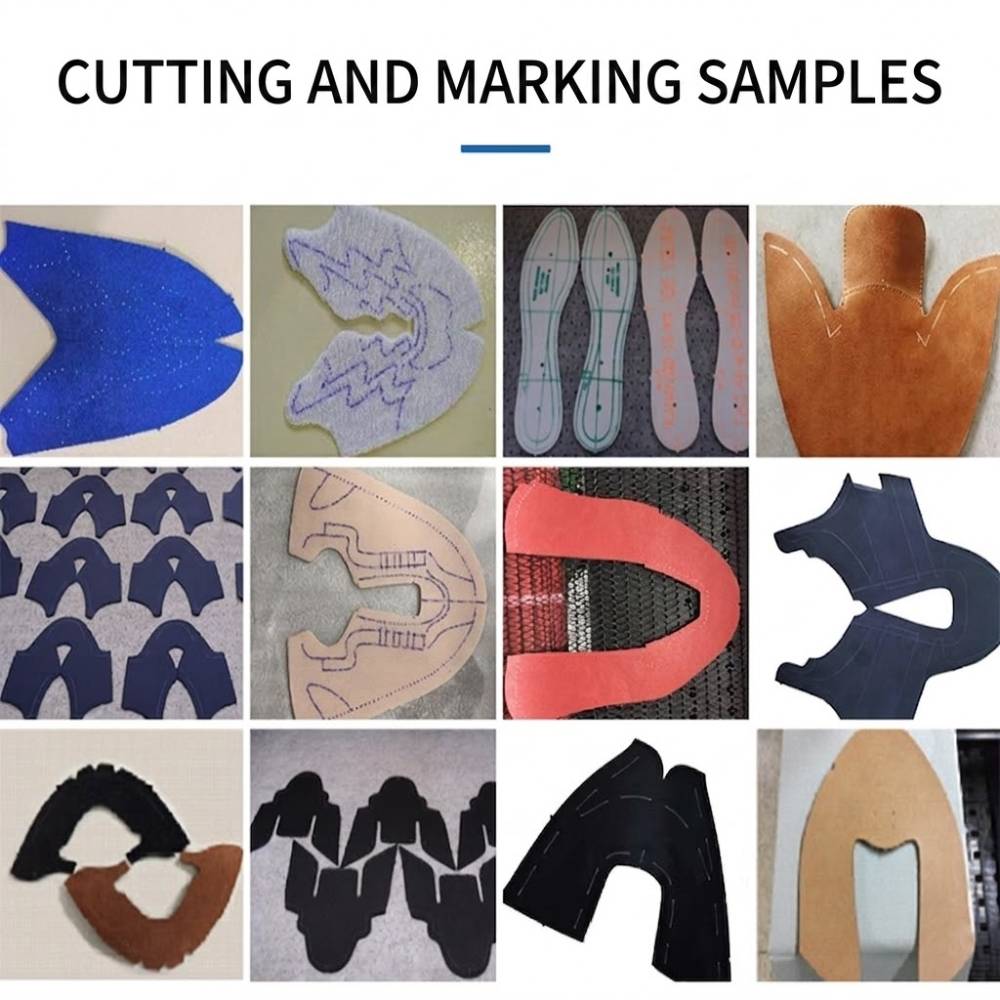

It is widely used in the processing of various shoe upper materials, including leather, synthetic leather (PU), microfiber, mesh fabrics, textiles, EVA, and other flexible materials. The machine enables automatic marking, contour positioning, and simultaneous cutting, ensuring accurate alignment and stable production quality.
With its large working area (1600 × 1200 mm) and high-speed servo-driven system, the machine is suitable for both mass production and customized footwear manufacturing, significantly improving productivity while reducing labor dependence.
Typical Applications
Sports Shoes & Sneakers – Precision marking and cutting for complex upper patterns and stitching positions
Casual & Fashion Footwear – Consistent processing of leather and fabric uppers with improved material utilization
Safety & Work Shoes – High-accuracy component marking for durable and standardized production
Children's Shoes – Fine pattern marking and cutting for small, detailed components
Custom Footwear Manufacturing – Flexible production for personalized designs and short-run orders
Compatible Materials
Genuine Leather
PU / Synthetic Leather
Microfiber Leather
Mesh Fabric & Textile Materials
EVA and Composite Shoe Materials
