The machine is purpose-designed to meet automated engraving and marking requirements for photovoltaic plastic components.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CX-10WD

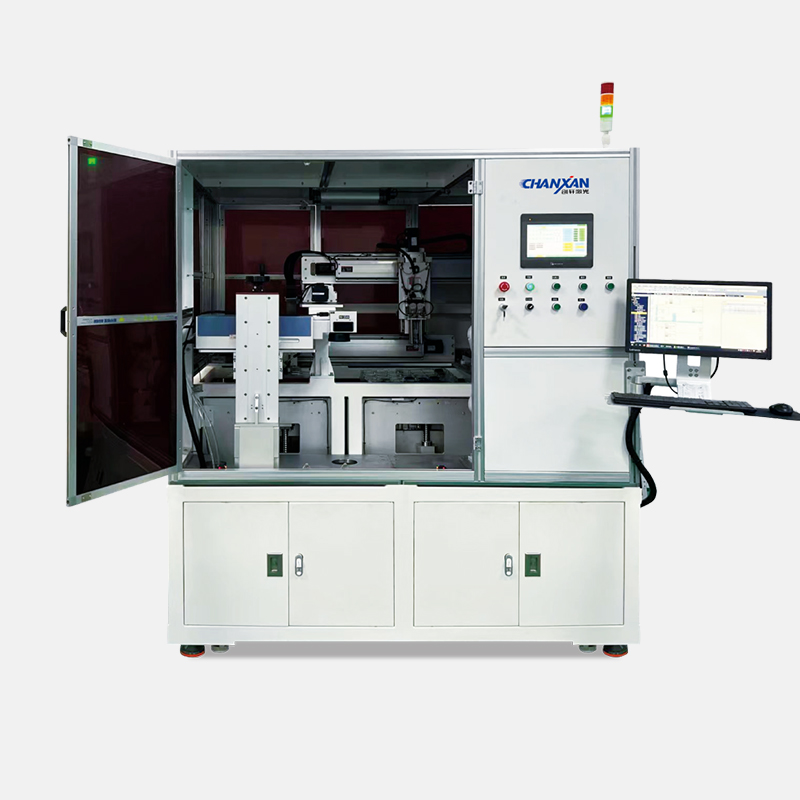

Fully Automatic Laser Engraving Machine
The CX-10WD is designed for fully automatic laser engraving and marking of photovoltaic plastic components, white injection-molded parts and precision industrial products. High beam quality, fast marking and accurate motion control provide stable, high-efficiency processing in mass-production environments.
110 × 110 mm Processing Area1–7000 mm/s Marking Speed±0.02 mm Positioning Accuracy
Get a tailored solutionCompatible Materials
Developed for automatic laser engraving of photovoltaic plastic components, white injection molded parts and precision product housings.
Photovoltaic Plastic PartsWhite Injection Molded PartsIndustrial Plastic ComponentsMedical Plastic DevicesElectrical HousingsConsumer Product Enclosures
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Precise White-Part Processing
High beam quality and motion precision support stable engraving of white injection molded parts at production speed.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Intelligent PCC Control
An independently developed PCC controller and compact system design support convenient operation and automatic error alarms.
Key Features
Fully Automated Processing
Built for fully automatic laser processing of white injection-molded parts and photovoltaic plastic components.
High-Quality Beam Performance
High beam quality supports clear, stable engraving and marking results for product identification and decorative processing.
Fast, Accurate Motion
Marking speeds of 1–7000 mm/s and ±0.02 mm positioning accuracy support efficient mass-production workflows.
Compact Automated Operation
The compact, highly automated structure includes convenient software operation and automatic error-alarm functionality.
Technical Parameters
| Parameter | CX-10WD |
|---|---|
| Product Name | Fully Automatic Laser Engraving Machine |
| Laser Type | Optional |
| Output Power | 10W (Optional) |
| Processing Area | 110 × 110 mm |
| Cutting / Marking Speed | 1–7000 mm/s |
| Positioning Accuracy | ±0.02 mm |
| Laser Energy Control | 0–100% Software Adjustable |
| Supported Software & File Formats | Photoshop, CorelDRAW, AutoCAD; PLT, AI, BMP, DXF, SHX, TTF |
| Machine Weight | 1500 kg |
| Power Supply | AC 220V ±10%, 50Hz / 60Hz |
| Operating Environment | Temperature: 1°C–45°C; Humidity: 5%–95% |
| Total Machine Power | 2000W |
FAQ
What is the CX-10WD designed to process?
The CX-10WD is designed for automated engraving and marking of photovoltaic plastic components, white injection molded parts and precision industrial product housings.
Which industries can use this machine?
Typical uses include photovoltaic components, medical-device plastics, electrical and consumer-product housings, white injection molded parts and batch industrial marking.
What supports stable mass production?
High beam quality, fast marking speed, high motion accuracy, PCC controller operation and automatic error alarms support consistent automated mass production.
Does the system support traceability marking?
Yes. It can be applied to serial numbers, QR codes, permanent identification, logos, text and product-coding workflows where supported by the material and marking configuration.
