IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01Open File Compatibility
No software limitations: accepts DXF files and files exported from major CAD systems used by footwear design teams.

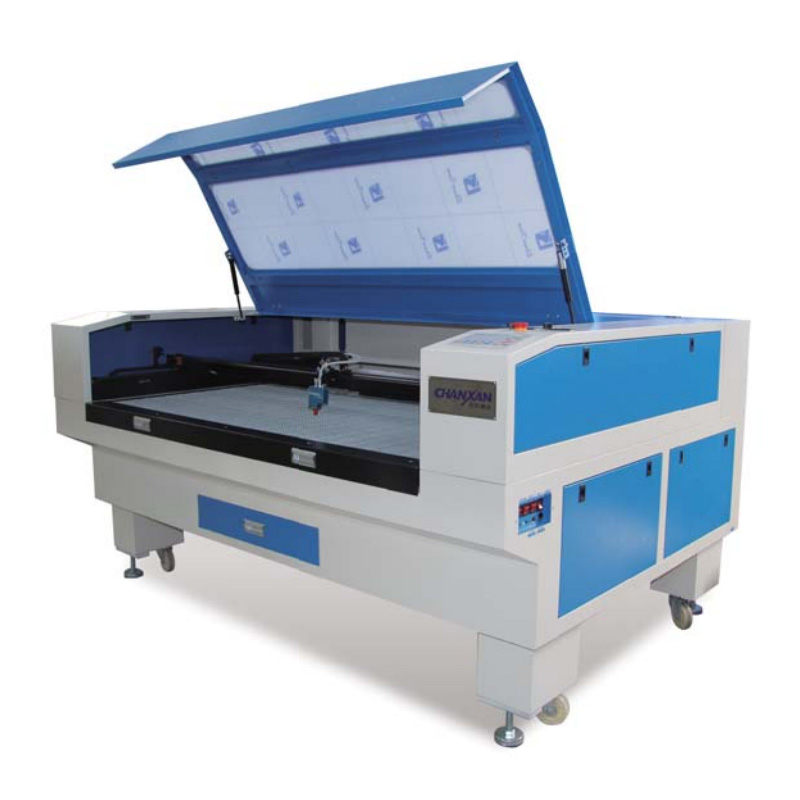

IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CW/P-1610H
Drawing Machine for the Sample Room
The CW/P-1610H is designed for small-batch footwear production, personalized pattern making and replenishment orders. By replacing manual line drawing and screen printing, it helps reduce labor costs, improve marking accuracy and accelerate sample development in pattern-making workshops and sample centers.
Small-Batch Sample DevelopmentDXF & Major CAD File CompatibilityModular Multi-System Design
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Production Needs
Purpose-built for flexible, low-volume footwear workflows requiring quick sampling, pattern development, replenishment and customized upper processing.
Shoe Upper MaterialsSample ComponentsPattern-Making MaterialsCustom Footwear OrdersReplenishment OrdersPrototype Materials
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01

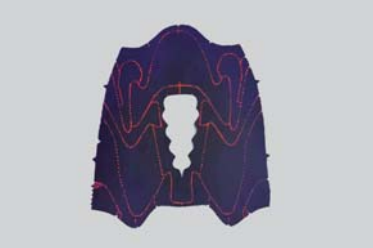

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Modular System Design
Modular construction can be equipped with multiple systems to address line-drawing requirements for various materials.

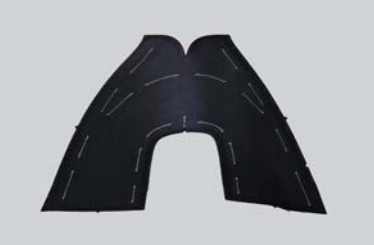

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Sample-Room Efficiency
Easy-to-learn operation helps workshops improve sampling and sample-cutting efficiency for fast product development.
Key Features
Small-Batch Flexibility
Suited to sample making centers, pattern workshops, personalized footwear production and replenishment orders.
Replace Manual Processes
Replaces manual line drawing, screen printing and punching steps to reduce labor needs and related costs.
Personalized Customization
Supports individualized shoe-upper processing for unique designs, made-to-order footwear and development work.
Faster Product Development
Accelerates prototype development and design validation through more efficient sample marking and processing workflows.
Configuration Overview
| Configuration Item | CW/P-1610H |
|---|---|
| Model | CW/P-1610H |
| Primary Production Focus | Small-Batch Sample Development, Pattern Making & Replenishment Orders |
| Supported File Input | DXF Files and Files from Major CAD Systems |
| Processing Concept | Personalized Customization and Small-Batch Sampling |
| Design | Modular; Multiple Systems Can Be Configured for Various Material Line-Drawing Needs |
| Typical Process Replacement | Manual Line Drawing, Screen Printing and Punching |
| Operating Experience | Simple, Easy to Use and Easy to Learn |
FAQ
What production scenarios is the CW/P-1610H designed for?
The CW/P-1610H is designed for footwear sample-making centers, pattern-making workshops, small-batch orders, replenishment orders, R&D teams and personalized customization.
Which design files can be used?
It accepts DXF files and files from major CAD systems, providing flexibility for standard footwear pattern-development workflows.
Which manual processes can it replace?
The equipment is intended to replace manual line drawing, screen printing and punching in sample-making and pattern-development workflows.
Can the system adapt to different materials?
Yes. Its modular design can be equipped with multiple systems to handle line-drawing needs for different footwear materials.
