IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01Intelligent CCD Positioning
Vision-guided product positioning enables accurate automatic marking without manual alignment or cumbersome focusing tests.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CX-N-017
CCD Vision Automatic Fiber Laser Marking Machine
The CX-N-017 combines intelligent CCD vision positioning, automatic feeding and unloading, and fast laser focusing to deliver accurate semiconductor and electronic-component marking without manual alignment or focus adjustments. QR code and text marking with real-time quality inspection support stable, efficient and traceable production.
±0.003 mm Positioning AccuracyAutomatic Feed, Mark & UnloadReal-Time QR Quality Inspection
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Materials
Designed for automatic precision marking of semiconductor packages and electronic components made from high-value plated and alloy materials.

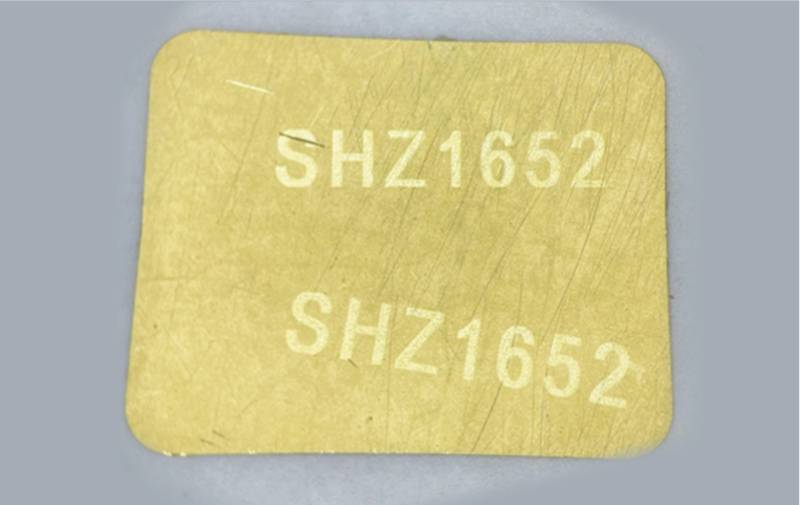

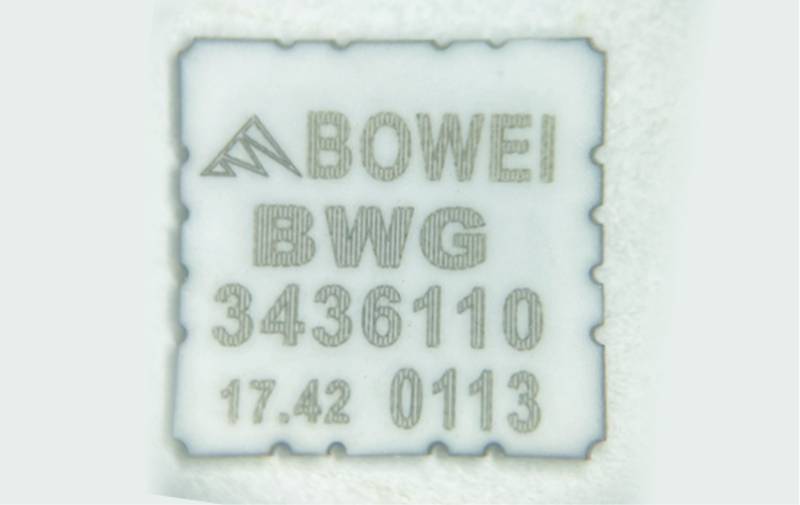

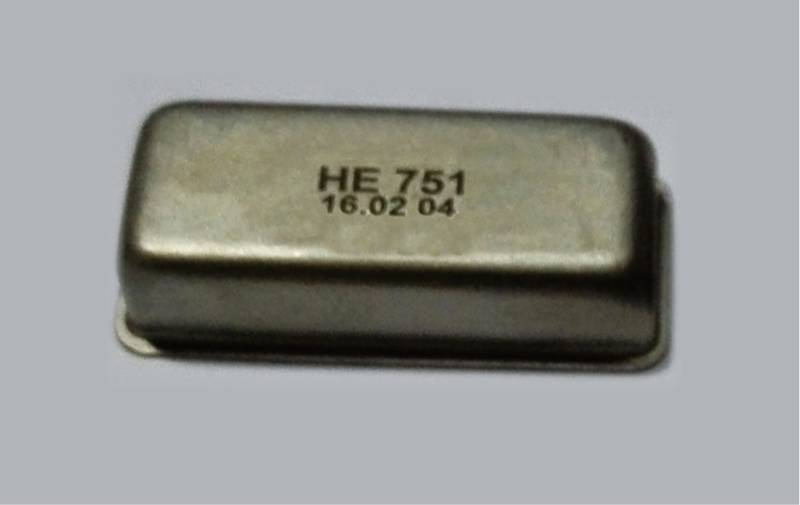

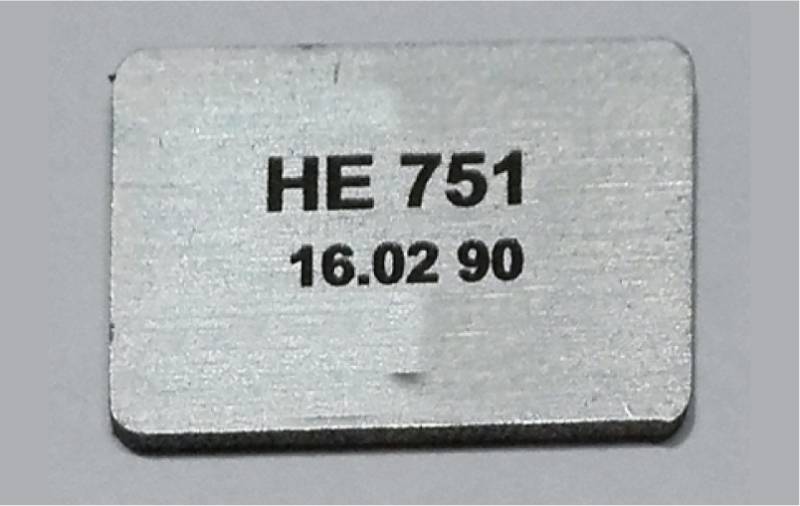

Gold-Plated MaterialsNickel-Plated MaterialsPure NickelAluminum AlloyMetal Chip PackagesElectronic Components
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Automated Production Flow
Automatic feeding, material-frame positioning, laser marking and unloading support scalable chip-package production.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Traceability & Inspection
QR code and text marking with real-time QR quality detection supports reliable tracking and production-quality control.
Key Features
Fast Auto-Focusing
Laser fast-focusing combined with vision positioning helps eliminate manual focus adjustments and improves process consistency.
Automated Data Capture
The intelligent system reads work-card barcodes, imports part numbers and automatically records production time and parameters.
High-Precision Micro Marking
±0.003 mm positioning accuracy supports permanent identification on miniature electronic and semiconductor components.
QR Code Quality Control
Real-time QR-code quality detection helps ensure each mark remains readable for traceability and downstream quality systems.
Technical Parameters
| Parameter | CX-N-017 |
|---|---|
| Model | CX-N-017 |
| Laser Type | Fiber Laser |
| Laser Wavelength | 355 nm / 532 nm / 1064 nm |
| Output Power | 5W / 10W |
| Processing Area | 110 × 110 mm |
| Marking Speed | ≤ 1000 mm/s |
| Positioning Accuracy | ±0.003 mm |
| Cooling Method | Air Cooling |
| Working Voltage | AC 220V ±10%, 50Hz / 60Hz |
| Machine Power Consumption | 2 kW |
| Machine Weight | 750 kg |
FAQ
What is the CX-N-017 designed to mark?
The CX-N-017 is designed for permanent, precise marking of semiconductor chip packages, integrated circuits, electronic components and plated or alloy metal packages.
How does CCD vision improve marking accuracy?
The CCD vision system positions the workpiece automatically, while fast laser focusing reduces the need for manual alignment and focusing adjustments.
Does the system support traceability workflows?
Yes. It marks QR codes, serial numbers and text, performs real-time QR quality inspection, and records production-related data such as part number, time and parameters.
Which materials are compatible?
The system is compatible with gold-plated, nickel-plated and pure-nickel materials, plus aluminum-alloy parts commonly used in semiconductor and precision-electronics manufacturing.
