A dedicated control system enables precision laser marking while products are moving through a production line.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · CWD System

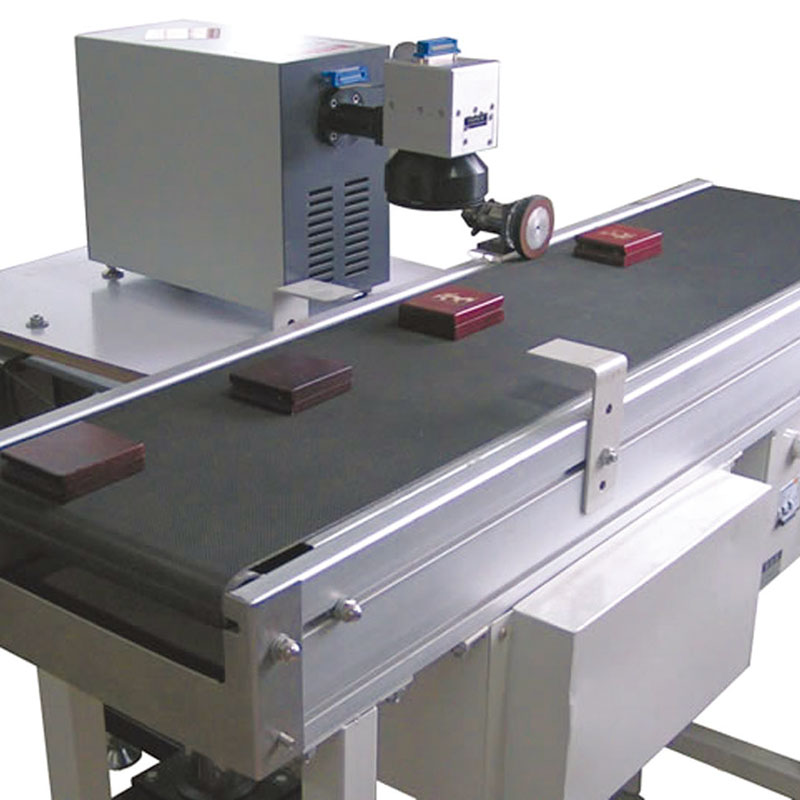

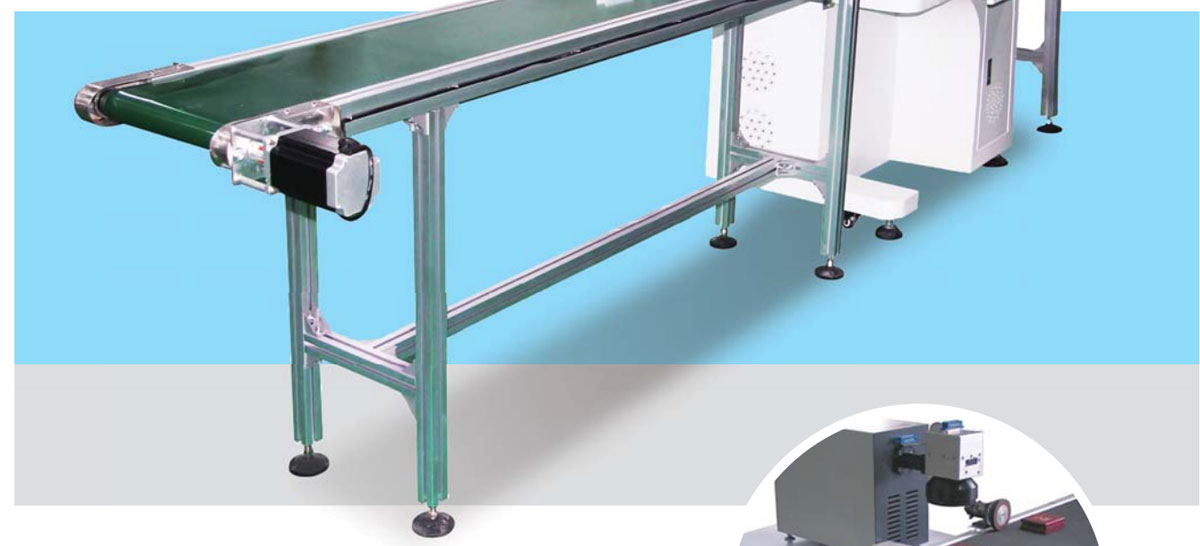

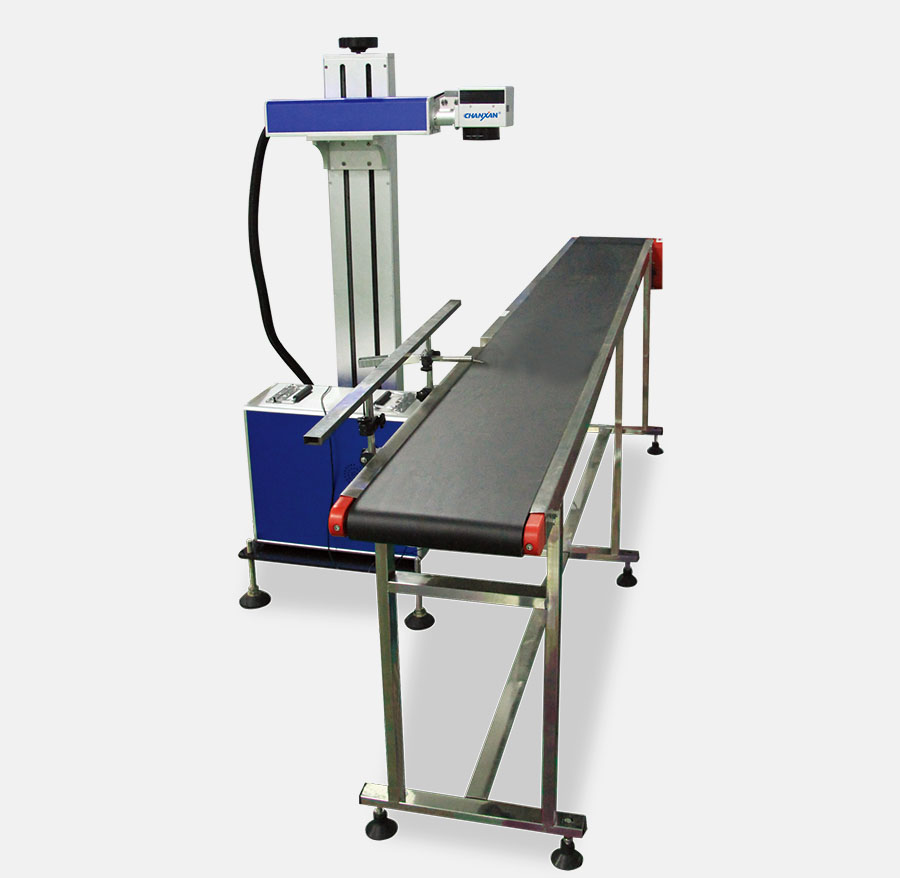

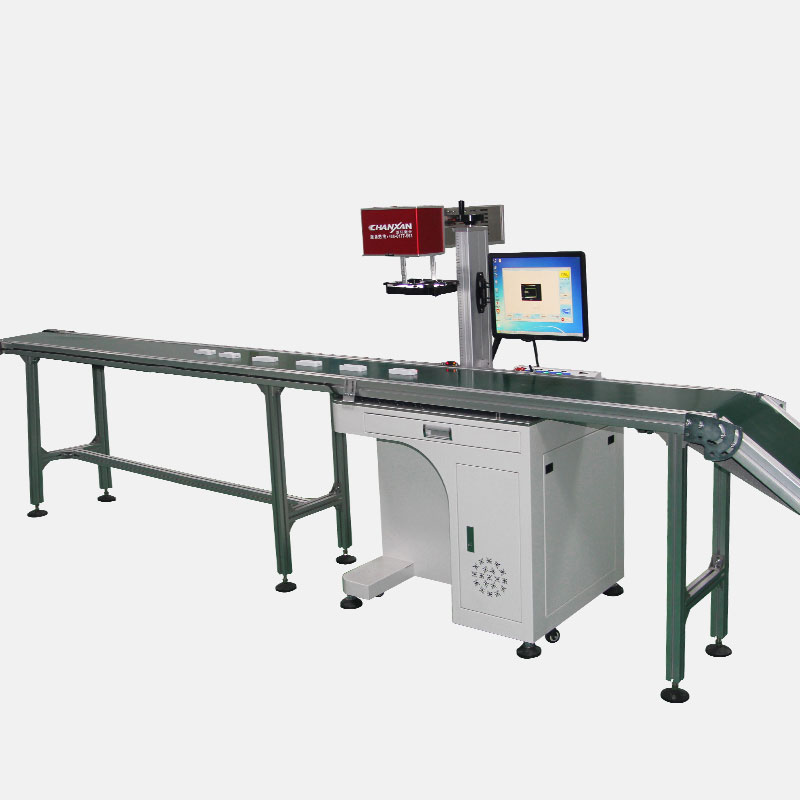

CWD Inline Conveyor Laser Marking System
The CWD Inline Flying Laser Marking Machine is an automated production-line marking system for high-speed industrial identification and traceability. A dedicated flying-marking control system enables precise marking on moving products without interrupting production flow.
0–60,000 mm/min Scanning Speed10W–100W Laser Options≤±0.01 mm Positioning Accuracy
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Product Materials
Configured for high-speed inline identification and traceability marking of metal, plastic, coated and packaged products across automated production lines.
Electronics ComponentsMetal PartsPlasticsCoated MaterialsPharmaceutical PackagingCosmetic Packaging
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Production-Line Integration
Link the system with automated production lines, assembly lines and robotic arms to support intelligent manufacturing.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Vision & Focus Options
Lifting and adjustment platforms, CCD recognition and intelligent detection can be integrated for accurate, labor-efficient operation.

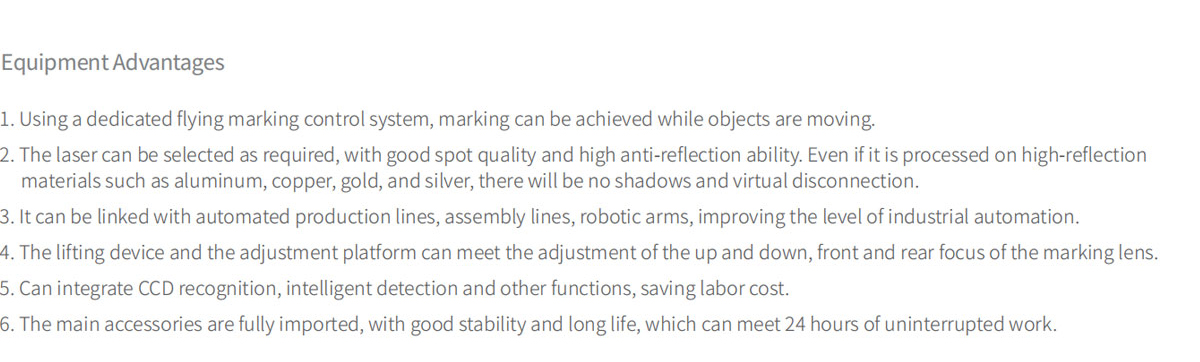

Key Features
Continuous-Flow Marking
Marks products while they move, eliminating a stop-and-mark step and supporting smoother automated flow.
Reflective-Material Capability
Selectable laser configurations offer good spot quality and anti-reflection performance for aluminum, copper, gold and silver materials.
24-Hour Operating Stability
Fully imported primary accessories are intended to provide stable, long-life operation suited to uninterrupted production.
Intelligent Traceability
Optional CCD recognition and intelligent detection support QR codes, barcodes, serial numbers and anti-counterfeiting identification.

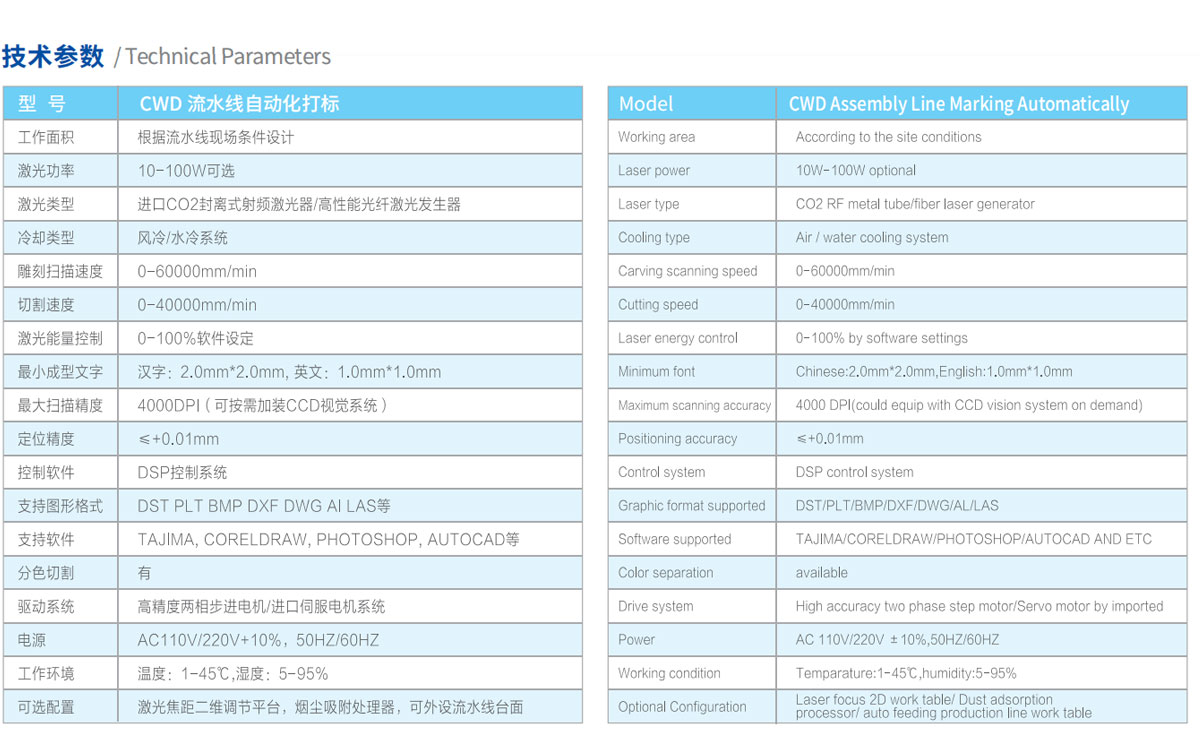

Technical Parameters
| Parameter | CWD Automated Production Line Laser Marking System |
|---|---|
| Model | CWD Automated Production Line Laser Marking System |
| Working Area | Customized according to production line conditions |
| Laser Power | Optional: 10–100W |
| Laser Type | Imported CO₂ RF Laser / High-Performance Fiber Laser Source |
| Cooling Type | Air Cooling / Water Cooling System |
| Engraving Scanning Speed | 0–60,000 mm/min |
| Cutting Speed | 0–40,000 mm/min |
| Laser Energy Control | 0–100% Software Adjustable |
| Minimum Character Size | Chinese: 2.0 × 2.0 mm; English: 1.0 × 1.0 mm |
| Maximum Scanning Resolution | 4000 DPI (Optional CCD Vision System Available) |
| Positioning Accuracy | ≤ ±0.01 mm |
| Control System | DSP Control System |
| Supported Graphic Formats | DST, PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Compatible Software | TAJIMA, CorelDRAW, Photoshop, AutoCAD, etc. |
| Color Separation Cutting | Supported |
| Drive System | High-Precision Dual-Axis Stepper Motor / Imported Servo Motor System |
| Power Supply | AC 110V / 220V ±10%, 50Hz / 60Hz |
| Working Environment | Temperature: 1–45°C; Humidity: 5%–95% |
| Optional Configurations | Laser Focus 2D Adjustment Platform, Smoke Extraction System, Optional Conveyor Line Table |
FAQ
What is the CWD system designed to mark?
The CWD system is designed for high-speed inline marking and traceability of electronics, automotive components, packaging, metal and non-metal industrial products.
How does flying marking support production efficiency?
The dedicated flying-marking system performs laser marking while products are moving, avoiding interruption of the production flow.
Can it integrate with automated production lines?
Yes. The CWD system is designed to link with conveyor systems, assembly lines and robotic arms, with optional focus adjustment and CCD recognition functions.
What traceability content can be marked?
Applications include QR codes, barcodes, serial numbers, production dates, batch codes, logos, product identification and anti-counterfeiting content.
