CW/P-1313HTS

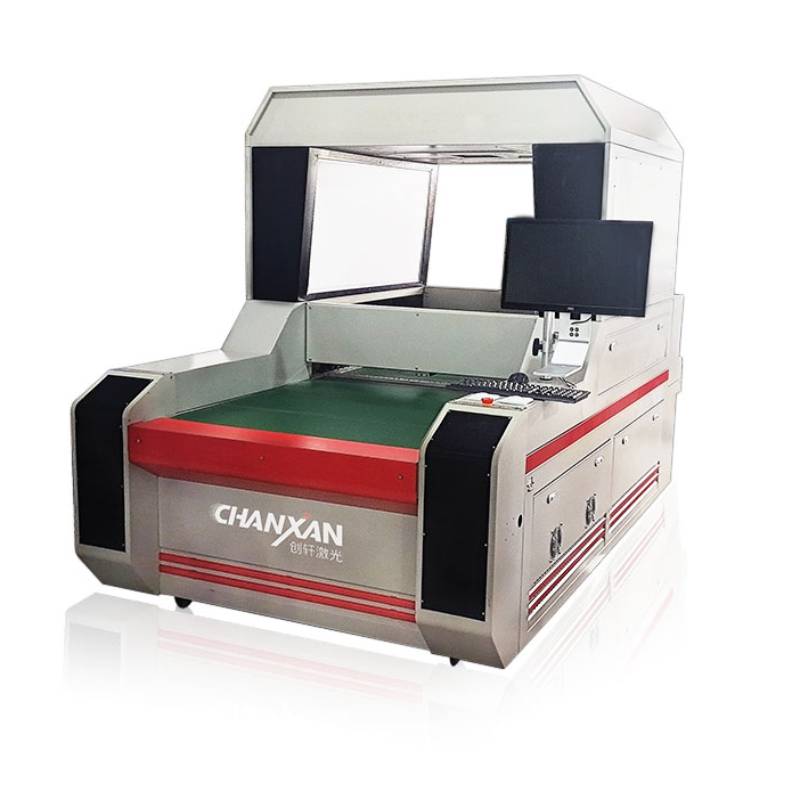

The Visual Dual-Head Dual-Track Inkjet Marking Machine is an intelligent automated solution designed for shoe upper line marking and footwear material processing. Equipped with visual recognition technology, dual-head dual-track inkjet printing, and automatic loading and unloading, the machine accurately identifies shoe material cut pieces and performs high-speed line marking with exceptional precision. It effectively replaces manual line marking, reduces labor costs, saves over 80% of ink, and achieves a line marking pass rate of ≥99.99%.
Intelligently identifies shoe material cut pieces, using dual-head, dual-track inkjet printing for line marking, completely replacing manual line marking and saving 5-10 line marking workers.
Advantages include saving screen plates, labor, and ink, while providing high line marking accuracy.
Automated transparent mesh pressing effectively solves the process difficulties caused by warped or deformed cut pieces that prevent line marking.
Automatic loading and unloading allows integration with subsequent glue application lines, improving overall production line efficiency.
A variety of inks are available, saving over 80% of ink, achieving a line marking pass rate of ≥99.99% with high accuracy.
Integrated structural design, high-end product appearance, stable operation, and easy to learn.
| Parameter | Specification |
|---|---|
| Model | CW/P-1313HTS |
| Machine Dimensions (L × W × H) | 1600 × 3000 × 2000 mm |
| Line Marking Area | 950 × 700 mm |
| Working Speed | 800–2000 mm/s |
| Rated Power | 2 kW |
| Total Weight | 700 kg |
| Production Capacity / Hour | 400–1100 pcs/hour |
| Power Supply | 220V |
| Positioning Accuracy | ±0.1 mm |
| Line Marking Accuracy | ±0.1 mm |
| Ink Options | High-Temperature Disappearing Ink / Warm Water Disappearing Ink / Silver Ink / Fluorescent Ink / Permanent Ink |
| Comparison Item | Visual Dual-Head Dual-Track Line Drawing Machine | Traditional Manual Line Drawing | Advantage |
|---|---|---|---|
| Line Drawing Method | Automatic Line Drawing | Manual Line Drawing | Automated Process |
| Line Drawing Speed | ≥ 20 pairs/min | ≤ 5 pairs/min | Production Capacity ≥ 4× |
| Pass Rate | ≥ 99.99% | ≤ 90% | Higher Accuracy & Consistency |
| Special Inks | Multiple ink options available based on material requirements | Limited / Manual Selection | Better Material Adaptability |
| Ink Type | Description |
|---|---|
| High-Temperature Disappearing Ink | Suitable for processes requiring heat removal after production |
| Photochromic Ink | Changes color under light exposure |
| Permanent Ink | Non-removable marking for long-term identification |
| Silver Ink / Fluorescent Ink | Used for special visibility or identification requirements |
Shoe Upper Line Marking – Automated line marking for shoe upper cut pieces, replacing manual tracing processes.
Footwear Manufacturing Automation – Intelligent marking for sports shoes, casual shoes, leather shoes, and functional footwear production.
Warped & Deformed Material Processing – Transparent mesh pressing ensures accurate marking on irregular or curled cut pieces.
Footwear Production Lines – Supports automatic loading/unloading and integration with glue application and assembly lines.
Precision Pattern & Position Marking – High-accuracy inkjet marking for cutting, stitching, alignment, and assembly guidance.
High-Efficiency Industrial Inkjet Processing – Suitable for large-scale footwear factories seeking labor reduction and production consistency.
