IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01CCD Dynamic Positioning
CCD vision positioning and capture support dynamic processing ranges for improved textile processing efficiency and cutting accuracy.

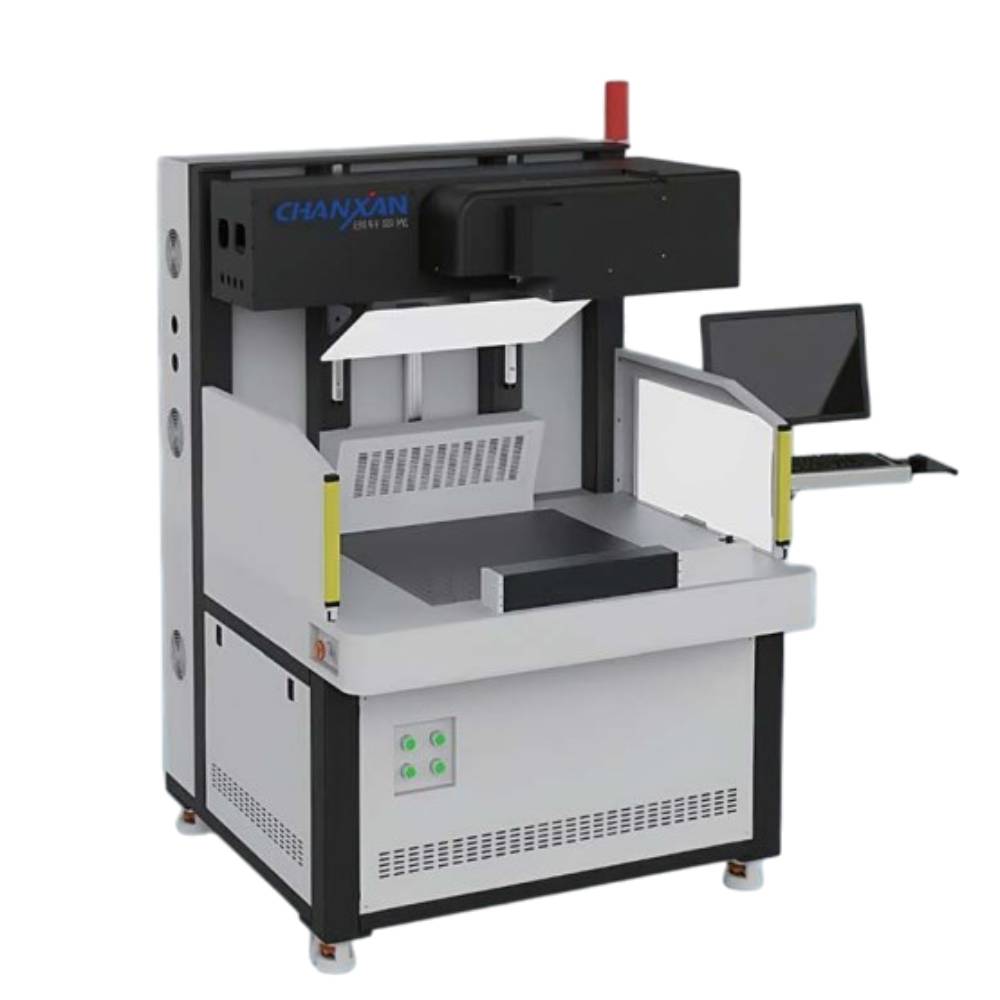

IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CX-150SV
Vision-Guided High-Speed RF CO₂ Laser Marking Machine
The CX-150SV is an advanced fabric laser cutting and textile engraving system for high-precision garment and flexible-material processing. CCD vision positioning and an HD 25MP camera automatically capture patterns to enable efficient, accurate dynamic processing.
600 × 600 mm Working Area200W RF CO₂ Laser25MP CCD Vision Camera
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL

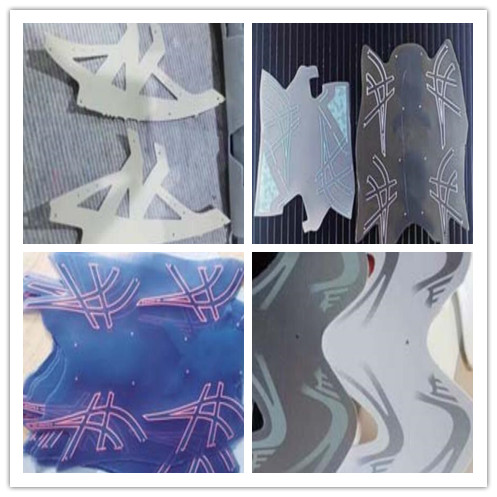

Compatible Materials
Designed to cut, punch and engrave flexible garment materials and textile components for high-value apparel processing.
Fitness Apparel FabricsJersey FabricsJacket MaterialsSportswear FabricsLettering FilmsFlexible Materials
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_0225MP HD Camera System
An EDVT high-definition camera with 25MP Canon imaging provides precise pattern capture and engraving positioning.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03German Rofin RF Laser
A 200W Rofin RF CO₂ laser provides high-speed marking, high quality and efficient fabric laser processing.
Key Features
Pattern Capture & Dynamic Processing
Automatically captures material patterns to support vision-guided processing without manual alignment.
High-Speed Fabric Engraving
High-power RF laser performance supports fast, detailed engraving and marking of garment and sportswear fabrics.
Precise Cutting & Punching
Suitable for cutting, punching holes and carving flexible materials, including detailed functional apparel components.
Operator-Friendly Software
Easy-to-learn software reduces manual operation and supports efficient textile production at controlled labor cost.
Technical Parameters
| Parameter | CX-150SV |
|---|---|
| Model | CX-150SV |
| Product Name | Fabric Laser Engraving Machine |
| Working Area | 600 × 600 mm |
| Laser Type & Power | CO₂ RF Laser, 200W |
| Laser Brand | Rofin (Germany) |
| Camera Type | EDVT High-Definition Camera |
| Camera Resolution | 25 Megapixels |
| Camera Brand | Canon (Japan) |
| Galvo Lens | Full Set of Imported Laser Transmission Optics |
| Cooling System | S&A CW-6000 Water Chiller |
| Laser Wavelength | 10,640 nm |
| Laser Power Control | 0–100% Software Control |
| Minimum Character Size | 1.8 mm |
| Minimum Character Spacing | 0.4 mm |
| Supported Software & Formats | Photoshop, CorelDRAW, AutoCAD, PLT, AI, BMP, DXT, SHX, TTF |
| Positioning Accuracy | ≤ ±0.01 mm |
| Power Supply | AC 110V / 220V ±10%, 50Hz / 60Hz |
| Working Environment | Temperature: 1°C–45°C; Humidity: 5%–95% |
| Machine Power Consumption | 6000W |
FAQ
What is the CX-150SV designed to process?
The CX-150SV is designed for cutting, punching and engraving garment fabrics and flexible textile materials, including fitness apparel, jerseys, jackets, sportswear and lettering films.
How does the vision system improve fabric processing?
CCD positioning and an HD 25MP camera automatically capture patterns and guide dynamic processing, helping improve alignment, throughput and cutting accuracy.
Which laser source is included?
The machine uses a 200W RF CO₂ laser from Rofin, Germany, with software-controlled power from 0% to 100%.
Which textile applications are supported?

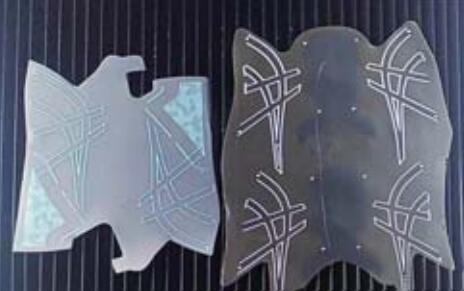

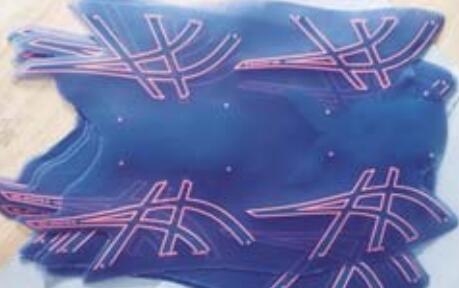

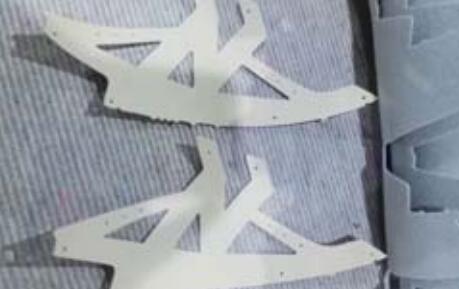

Typical applications include hole punching in fitness apparel and jerseys, cutting and engraving jacket and sportswear fabrics, lettering-film cutting and flexible-material hole cutting.
