IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01High-Pixel CCD Vision
High-precision visual positioning supports repeatable marking with ±0.01 mm positioning accuracy and 0.01s recognition speed.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CX-HV

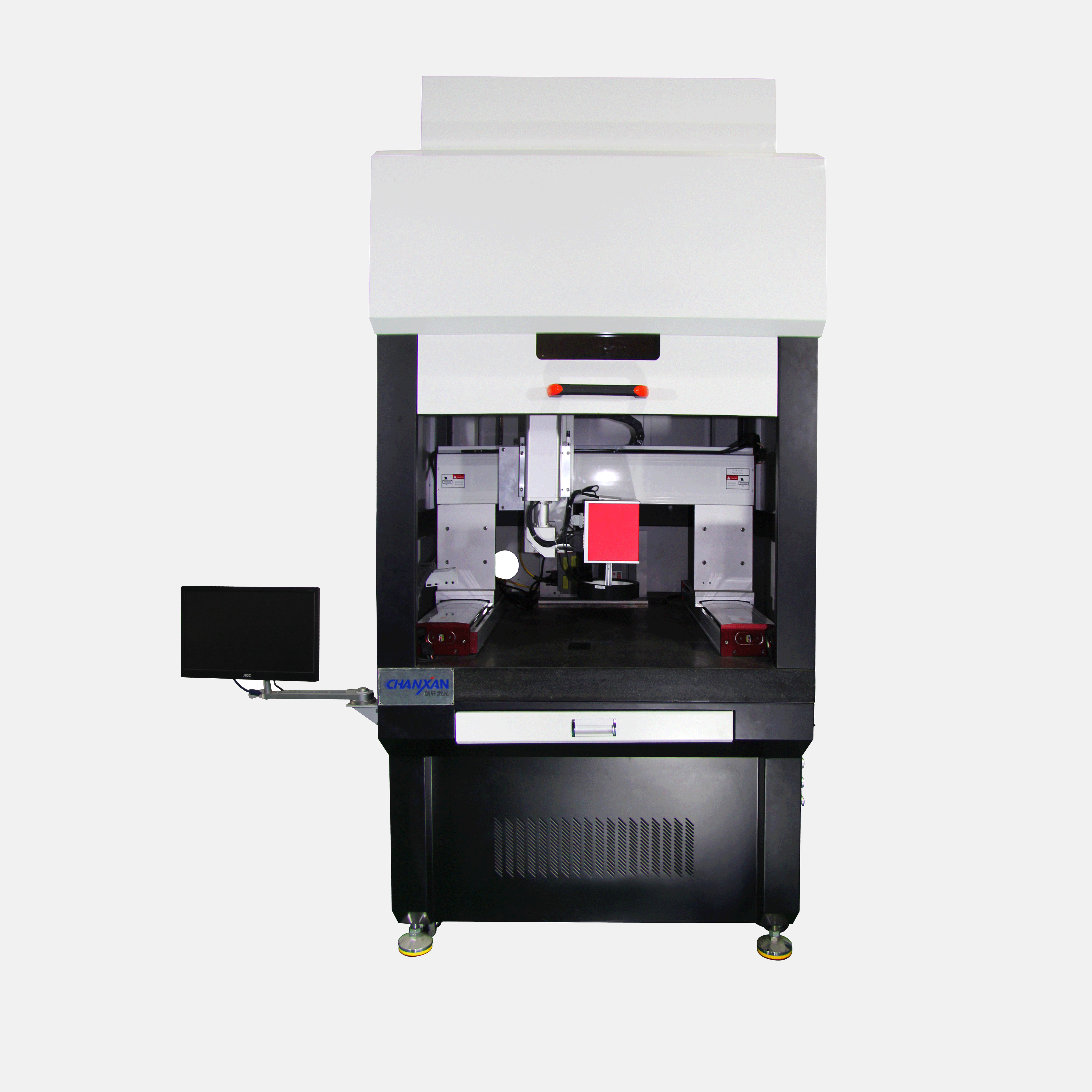

Vision-Guided Motion Compensation Laser Marking Machine
The CX-HV is an advanced CCD automatic laser marking system for high-precision industrial applications. Intelligent visual positioning, motion compensation and automated recognition enable accurate chip, electronic-component, automotive-button and irregular-part marking without manual alignment.
±0.002 mm Repeatability≤8000 mm/s Marking Speed0.01 s Visual Recognition
Get a tailored solutionCompatible Applications
Designed for vision-positioned marking of high-value, precision and irregular products across semiconductor, electronics and automotive production.

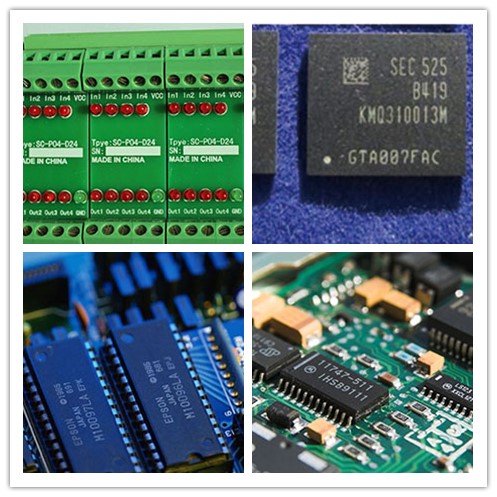

Semiconductor ChipsIC PackagesPrecision Electronic ComponentsAutomotive ButtonsControl PanelsIrregular Precision Parts
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01

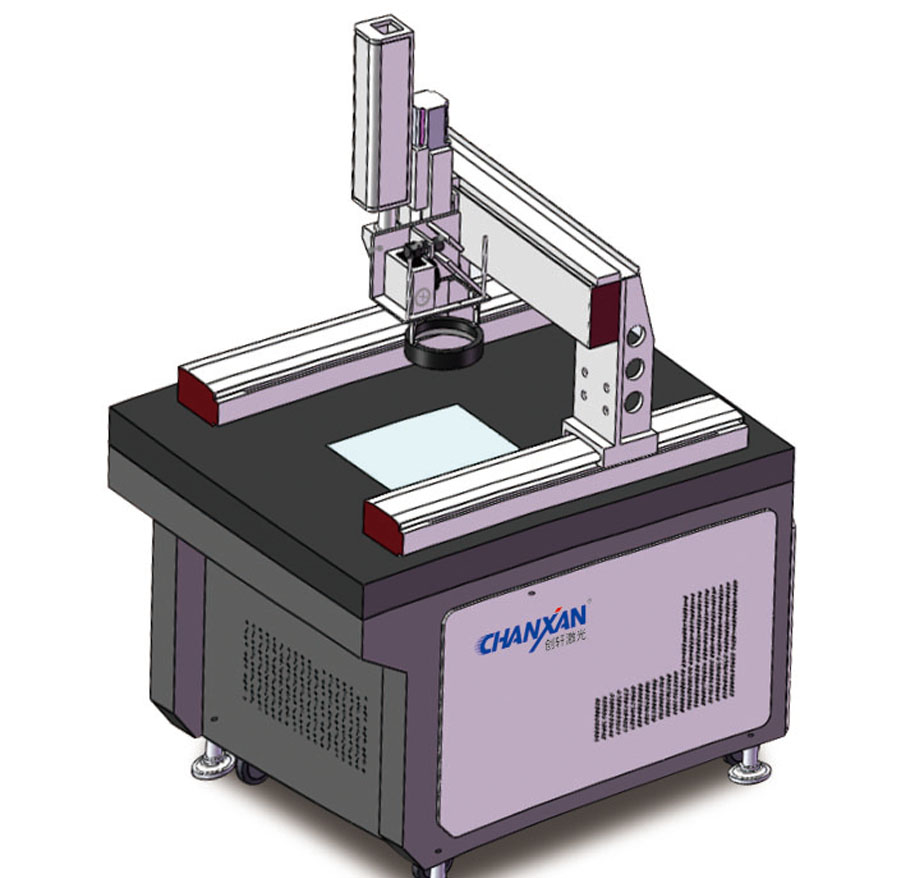

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Motion Compensation Drive
A high-precision servo screw system is collimator-tested during installation and commissioning to maintain stable accuracy within ±0.05 mm.

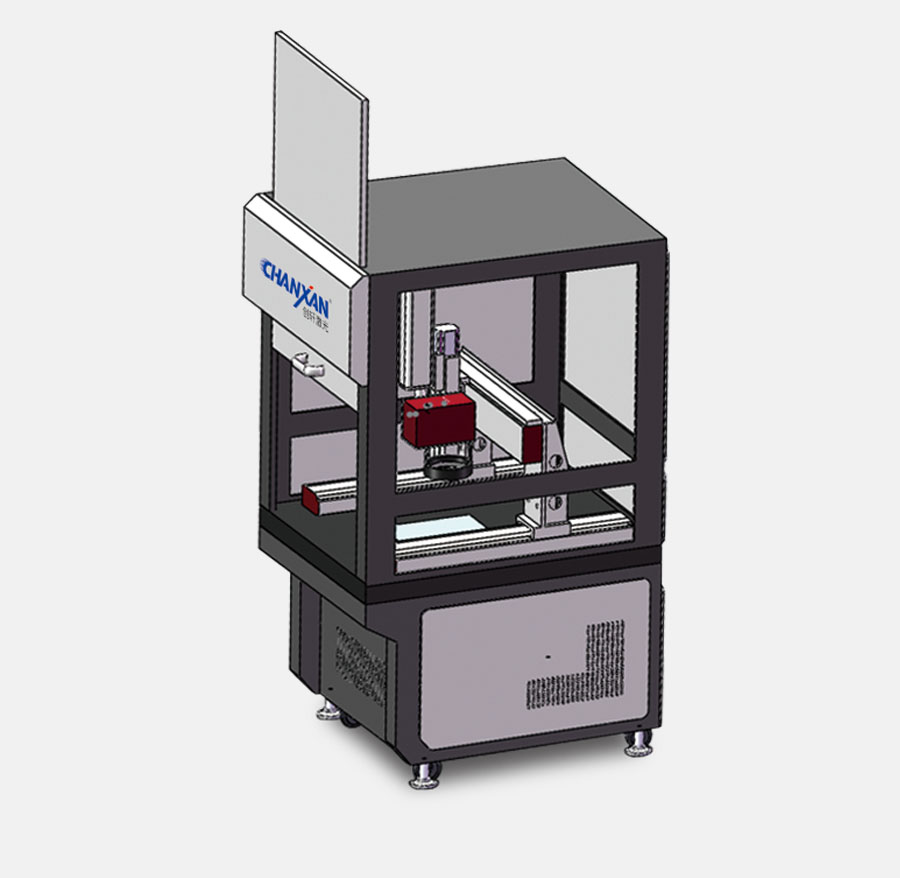

IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Fully Enclosed Safety Frame
The fully enclosed frame meets European safety standards while supporting automated industrial marking workflows.
Key Features
Automatic Mobile Marking
Motion-compensated marking minimizes manual material placement and positioning to improve production automation.
Flexible Laser-Source Compatibility
The vision system can be applied with fiber, UV, violet and green laser marking sources for varied precision applications.
Irregular-Part Recognition
Intelligent CCD positioning supports automatic recognition and accurate marking of complex-shaped or non-standard components.
Traceability Marking
Suitable for QR codes, serial numbers, logos and high-precision identification where repeatable quality control is required.
Technical Parameters
| Parameter | CX-HV |
|---|---|
| Model | CX-HV |
| Laser Power | Optional |
| Working Area | Customizable |
| Marking Speed | ≤8000 mm/s |
| Repeatability | ±0.002 mm |
| Whole Power Consumption | 1200W |
| Supply Voltage | AC 220V ±10%, 50Hz |
FAQ
What is the CX-HV designed to mark?
The CX-HV is designed for high-precision marking of semiconductor chips, IC packages, electronic components, automotive buttons, control panels and irregular industrial parts.
How does motion compensation improve automation?
Motion compensation, mobile marking and automated visual positioning reduce manual material placement and alignment steps in the marking process.
Which laser sources can be used with the vision system?
The vision system is compatible with multiple marking configurations, including fiber, UV, violet and green laser sources.
What precision performance is specified?
Specified performance includes ±0.002 mm repeatability, vision positioning accuracy of ±0.01 mm and high-precision servo-screw accuracy controlled within ±0.05 mm.
