IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01Seamless Stitching Marking
Stable guide rails and high-quality beam performance are designed for large-format splicing marking with fine, consistent results.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · Model CS-1325

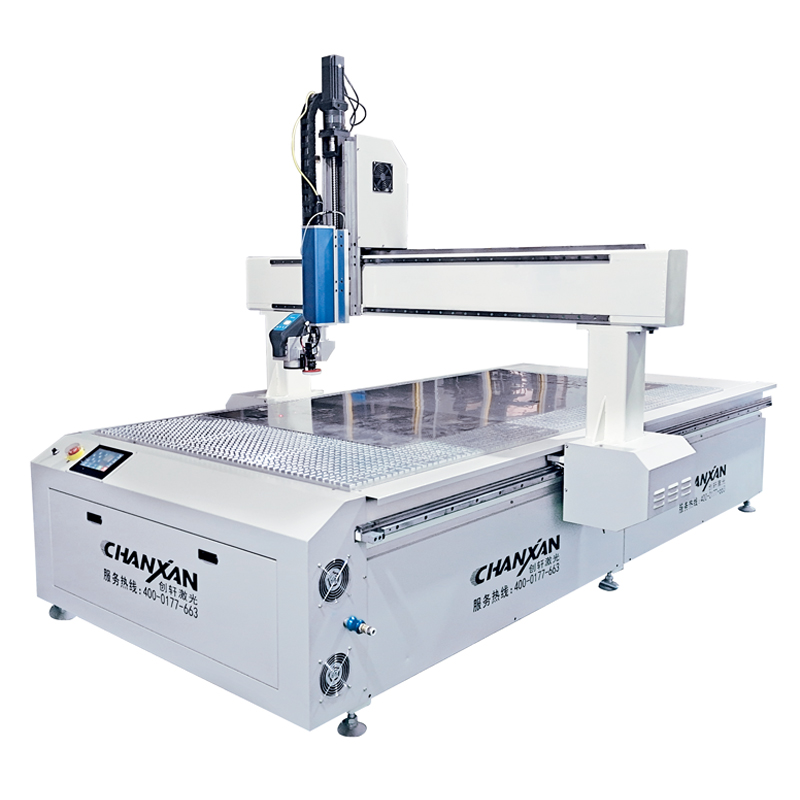

Large-Format Stitching Fiber Laser Marking Machine
The CS-1325 is designed for precision marking on oversized workpieces. Stitching-marking technology enables seamless large-area engraving with stated accuracy up to ±0.05 mm, while a premium fiber laser source provides fine quality, optional deep engraving and reliable long-term operation for large-format industrial applications.
1300 × 2500 mm Marking Area0.05 mm Positioning AccuracyUp to 100,000 h Laser Source Life
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Workpieces
Designed for seamless, large-format fiber-laser marking on oversized metal sheets, panels, fixtures and customized industrial products.
Stainless Steel PanelsMetal RulersElevator PanelsHardware FixturesSignage PanelsIndustrial Metal Sheets
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Deep Engraving Capability
Optional deep marking supports engraving depth up to 0.5 mm, depending on the processed material and requirements.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03Pre-Calibrated Optical Path
A factory pre-calibrated, closed optical-path structure removes the need for subsequent optical-path adjustment.
Key Features
Precision Large-Area Marking
Stitching marking supports stated positioning accuracy of 0.05 mm for oversized and full-sheet workpieces.
Long-Term Fiber Laser Reliability
A high-quality fiber laser source is specified for a service life of up to 100,000 hours, supporting durable operation.
Consumable-Free Processing
The platform is designed to operate without conventional consumables, for low-power, low-cost and environmentally conscious production.
Customizable Marking Scale
The 1300 × 2500 mm marking area can be customized to suit large, specialized or non-standard industrial workpieces.
Technical Parameters
| Parameter | CS-1325 |
|---|---|
| Model | CS-1325 |
| Average Output Power | 100W (Optional) |
| Marking Line Speed | ≤7000 mm/s |
| Marking Area | 1300 × 2500 mm (Customizable upon request) |
| Minimum Character Height | 0.2 mm |
| Marking Repeatability | <24 μrad |
| Marking Depth | 0.3 mm (Depending on material) |
| Minimum Line Width | 0.06 mm (Depending on material) |
| Power Supply | AC 220V, 50Hz |
| Motor | Stepper Motor / Servo Motor (Optional) |
| Positioning Accuracy | 0.05 mm |
| Repeat Positioning Accuracy | ±0.01 mm |
| Displacement Speed | 100–300 mm/s |
FAQ
What is the CS-1325 designed to mark?

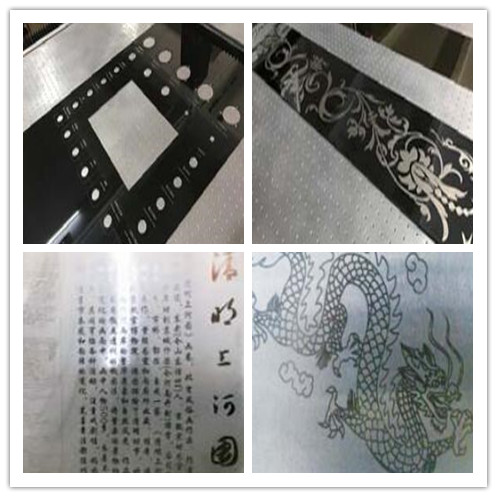

The CS-1325 is designed for precision, large-area stitching marking on oversized metal sheets, panels, hardware fixtures, signs and customized industrial workpieces.
What is stitching marking?
Stitching marking combines multiple precisely controlled marking areas to create seamless large-format engraving across workpieces larger than a single standard field.
Does the system support deep engraving?
Yes. The equipment can meet deep-marking needs; the supplied information states depth up to 0.5 mm depending on the material, with a listed nominal marking depth of 0.3 mm.
Which industries can use the machine?
Typical applications include metal ruler and scale marking, elevator panels, bathroom and hardware fixtures, advertising and signage, industrial metal sheets and customized large-format engraving.
