IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01Compact Desktop Design
The portable footprint supports placement on a desktop, within a workshop or at mobile customized-engraving locations.
IMAGE URL PLACEHOLDER: YOUR_HERO_IMAGE_URL_HEREChanxan Laser · CX-GP Series

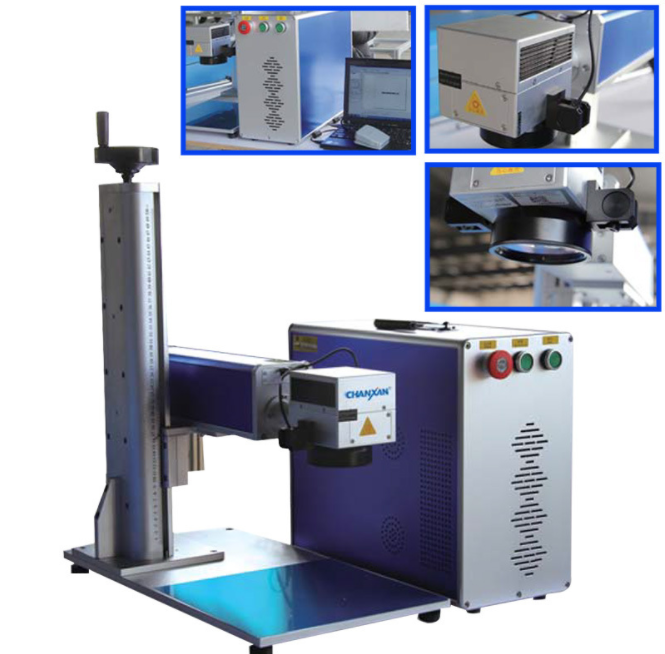

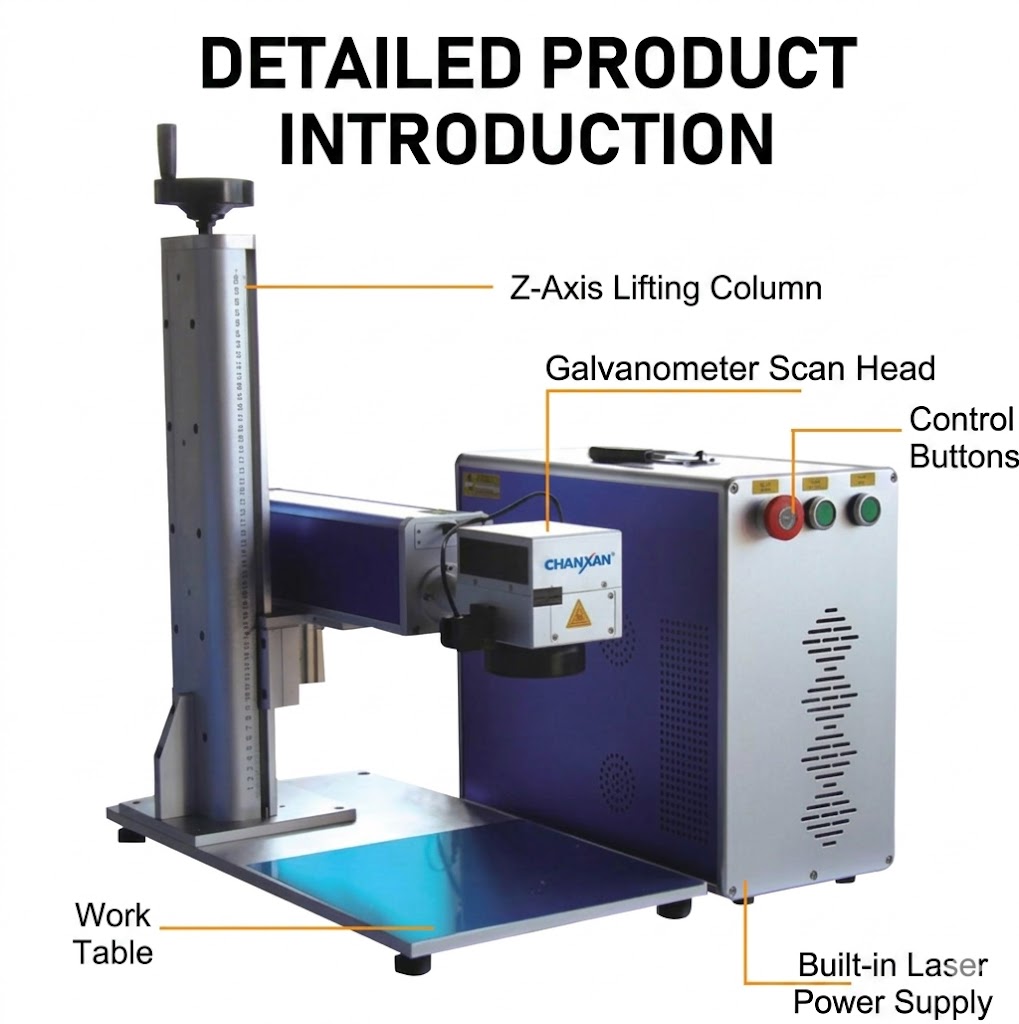

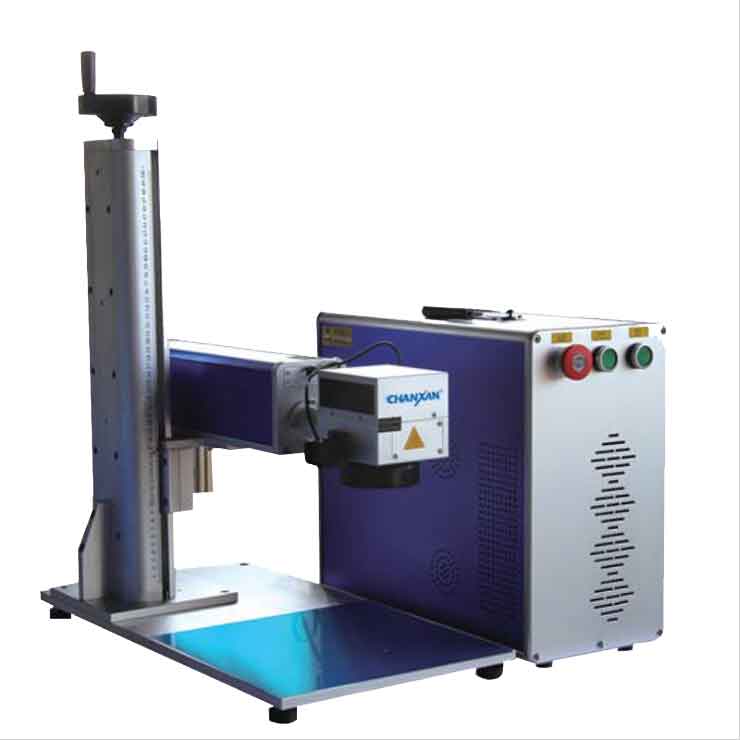

Compact Desktop Fiber Laser Marking Machine
The CX-GP Series is a portable, space-saving fiber laser solution for precision metal engraving, QR-code marking and customized lettering. Available in 20W, 30W, 50W and 100W configurations, it delivers fast, permanent, high-contrast marking for metals, plastics, jewelry, molds, handicrafts and on-site custom engraving.
20W / 30W / 50W / 100W Options100 × 100 mm Processing Area<50 kg Compact Machine Weight
Get a tailored solutionApplication Video
VIDEO URL PLACEHOLDER: YOUR_APPLICATION_VIDEO_URL
Compatible Materials
A compact, portable solution for permanent identification, precision engraving and custom lettering on a broad range of industrial and retail materials.
GoldSilverStainless SteelEngineering PlasticsMolds & ToolsHandicraftsJewelry
Core Values & Key Components
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_01
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_02Permanent Precision Coding

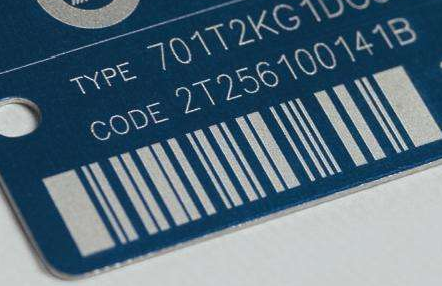

Create high-contrast QR codes, RIFT codes, dates, barcodes, serial numbers and other durable traceability information.
IMAGE URL PLACEHOLDER: YOUR_COMPONENT_IMAGE_URL_03On-Site Custom Engraving
Easy mobility supports personalized gifts, souvenir lettering, jewelry customization and retail-market engraving workflows.
Key Features
Portable, Space-Saving Operation
Compact design supports desktop use, sampling tasks and installation in small workshops or custom-service locations.
Permanent, Wear-Resistant Marks
Fiber laser marking can replace inkjet printing where a permanent, non-contact and high-contrast result is required.
Craft & Sampling Ready
Suitable for handicraft logos, personalized lettering, sampling, gift customization and precision decorative marking.
Scalable Power Options
Select 20W, 30W, 50W or 100W configurations to match the material, marking depth and production-throughput requirements.
Technical Parameters
| Parameter | CX-20GP / 30GP / 50GP / 100GP |
|---|---|
| Model | CX-20GP / 30GP / 50GP / 100GP |
| Laser Type | Optical Fiber Laser |
| Laser Power | 20W / 30W / 50W / 100W |
| Laser Wavelength | 1064 nm |
| Laser Frequency | 20–80 kHz |
| Processing Area | 100 × 100 mm |
| Repeat Positioning Accuracy | 0.002 mm |
| Marking Speed | 0–7000 mm/s |
| Minimum Character Size | 0.15 mm |
| Cooling System | Air Cooling |
| Working Voltage | 220V ±10%, 50Hz |
| Machine Power Consumption | <500W |
| Machine Weight | <50 kg |
FAQ
What applications is the CX-GP Series designed for?
The CX-GP Series is designed for portable metal engraving, QR and serial-code marking, jewelry engraving, handicraft customization, mold marking and retail custom engraving.
Which materials can be marked?
The system can mark metals such as gold, silver and stainless steel, as well as engineering plastics, molds, tools, jewelry and handicraft materials.
Can the machine be used for customized gifts and souvenirs?
Yes. Its compact portable design is suited to personalized lettering and souvenir or gift customization in tourist locations, markets and retail environments.
Which power configurations are available?
The supplied models include 20W, 30W, 50W and 100W configurations, allowing selection based on the material and application requirement.
