heating film / multilayer laminated film / conductive heating layer / PET / PI / flexible heater components

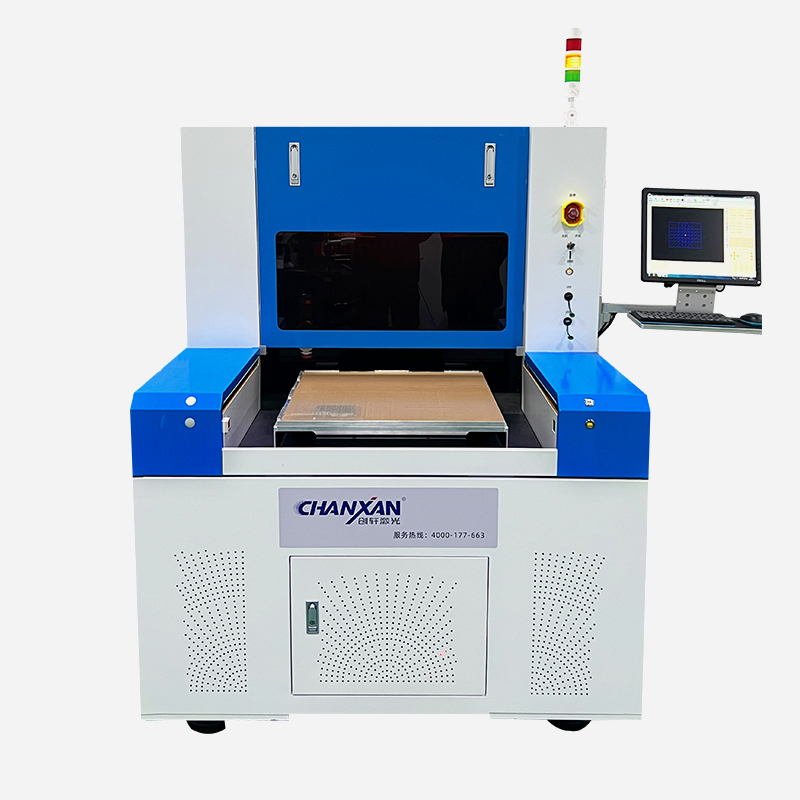

The Chanxan electrothermal film laser cutting machine is designed for high-precision processing of electrothermal films, conductive heating layers, laminated heating structures, and flexible functional film materials. It enables clean cutting, slotting, drilling, and contour shaping of PET-based heating films, PI heating films, transparent conductive heating films, and other thin-film heating components with minimal thermal damage and excellent edge quality.

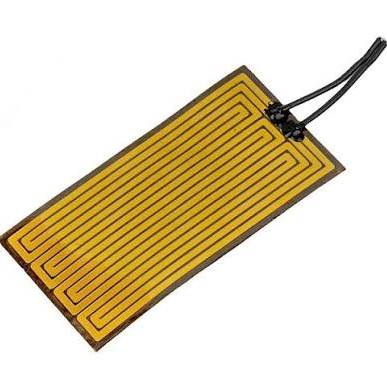

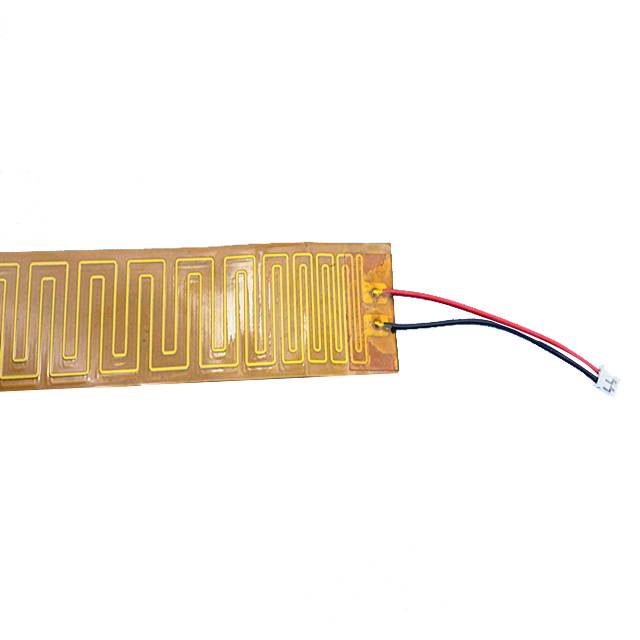

Electrothermal films(flexible heaters) are widely used as compact heating elements in consumer electronics, automotive interiors, medical warming devices, smart home products, and industrial thermal-control systems. These materials are typically built from polymer substrates such as PET or PI combined with conductive coatings, printed heating circuits, or laminated functional layers, requiring precise cutting and feature machining to maintain structural integrity and electrical performance.
Chanxan picosecond laser system is designed for high-precision flexible heater cutting applications. By utilizing ultrashort pulse laser processing, the system minimizes thermal diffusion and reduces the heat-affected zone, making it ideal for delicate multilayer heating film structures. It supports clean contour cutting, slotting, window opening, micro-hole drilling, and selective feature machining with stable output, excellent edge quality, and reliable dimensional consistency across a wide range of flexible heating materials.
No die cost for new product development or frequent design updates
Greater flexibility for complex outlines, openings, and precision features
Cleaner non-contact processing for delicate multilayer heating film structures
Better suitability for conductive, laminated, or printed electrothermal films
Faster changeover for prototyping, small batches, and customized heating components

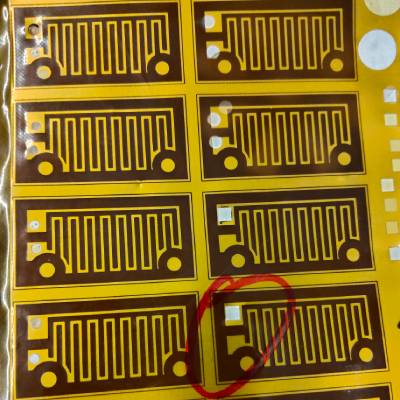

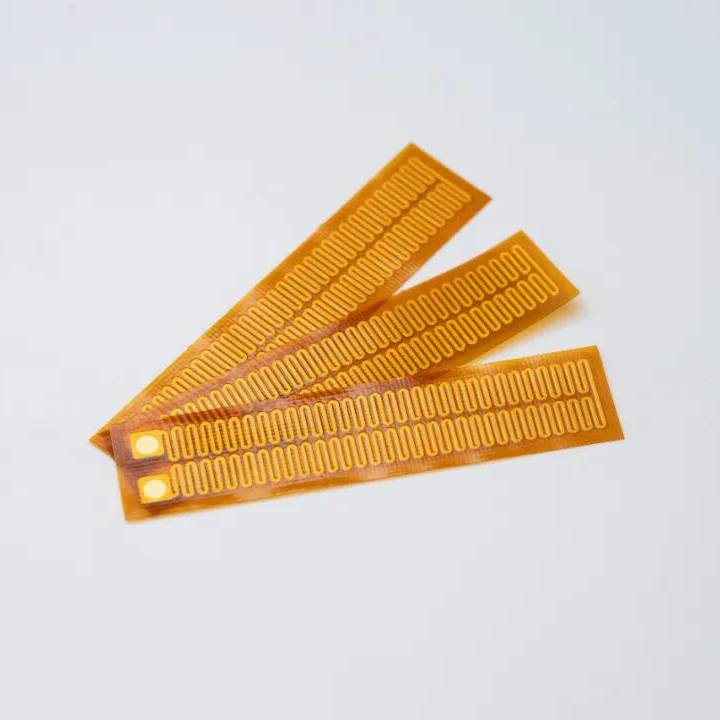

Precision cutting of complex heating film outlines with minimal thermal diffusion and high edge quality.
Accurate machining of internal features and openings for connectors and sensors in flexible heating layers.

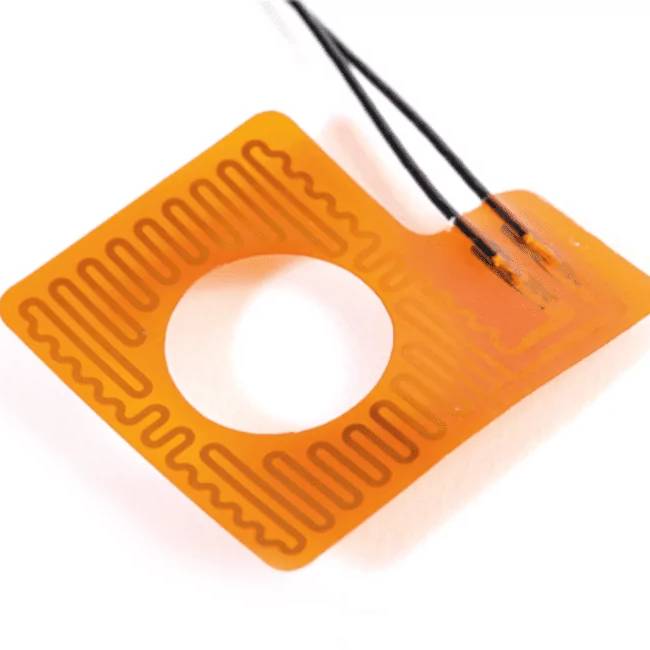

High-precision drilling of alignment and functional micro-holes without damaging delicate conductive coatings.

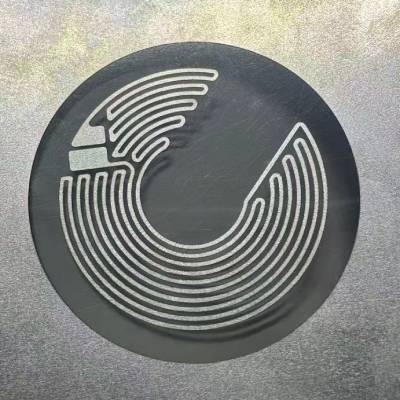

Localized laser processing for specific functional requirements in multilayer electrothermal film structures.
Used for precision cutting and shaping of heating films in wearable devices, smart displays, portable heating products, and compact electronic thermal management components.
Applied in processing electrothermal film components for heated seats, heated mirrors, battery thermal management systems, steering wheel heating layers, and interior defogging or de-icing assemblies.
Suitable for precision cutting of flexible warming films, medical heating pads, wearable therapeutic heating components, and temperature-control film structures used in healthcare devices.
Used in the processing of thin-film heating elements for smart toilet seats, heated panels, warming pads, compact kitchen appliances, and other temperature-control systems requiring precise film geometry.
High-resolution CCD system ensures precise positioning for printed heating patterns, laminated film outlines, and complex cutting paths.
Ultrashort pulse laser minimizes thermal impact on polymer substrates, conductive coatings, and laminated functional layers, enabling clean and stable electrothermal film cutting.
Linear motor drive and high-rigidity machine structure provide stable high-speed motion, smooth film handling, and reliable accuracy for delicate flexible heating materials.
Delivers high-precision cutting with minimal thermal damage, helping preserve conductive coatings, insulating layers, and laminated electrothermal film structures.
Ensures accurate contour cutting and stable machining performance for thin, flexible heating film materials in industrial production environments.
Provides precise alignment for printed patterns, multilayer heating film outlines, and complex feature cutting requirements.
Supports consistent laser energy delivery and long-term process stability for demanding electrothermal film production applications.
| Features | Parameters |
|---|---|
| Model | CW-6050PZ |
| Laser Type | Picosecond UV/IR/Green |
| Laser Power | 30W |
| Transmission System | X/Y/Z Three Axis |
| Working Area | 500*500mm / 600*900mm |
| Adsorption Platform Size | 1200mm*700mm (Customized) |
| Machining Thickness | ≤3mm |
| Machining Speed | ≤3000mm/s |
| Overall Machining Accuracy | ≤30um |
| Positioning | ±1μm |
| Repeatability | ±1μm |
| Software Control System | Chanxan Self-developed |
| Supported Formats | PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Overall Dimension | 2100mm*1550mm*1750mm |
| Supply Voltage | 380V ±10%, 50HZ |
