Polyester Film Laser Processing/ Precision PET Film Cutting & Drilling/ PET Insulation Film Laser Cutting
Chanxan PET film laser cutting machine is engineered for high-precision cutting, drilling, window opening, and contour processing of PET films, polyester films, BoPET films, insulating films, protective films, laminated films, and other thin flexible polymer materials. It delivers clean edges, minimal heat affected zone, and stable non-contact processing for electronics, electrical insulation, labels, packaging, and industrial film converting applications.
PET (polyethylene terephthalate) film is the most widely used type of polyester film and is widely applied in electrical insulation, protective layers, labels, display materials, laminated structures, and flexible industrial components due to its dimensional stability, dielectric performance, transparency, and cost efficiency. In many industrial applications, biaxially oriented PET films are also referred to as BoPET or Mylar® film.
Chanxan's PET film laser cutting machine uses high-precision laser processing to achieve clean cutting, drilling, slotting, and window opening on PET and polyester films with minimal thermal impact. It enables manufacturers to produce finer patterns, smoother edges, and more consistent quality while reducing tooling costs and improving flexibility for short-run, customized, and high-mix production.
No die tooling cost for prototypes, custom parts, or frequent design changes
Clean cutting for thin PET films with reduced mechanical stress

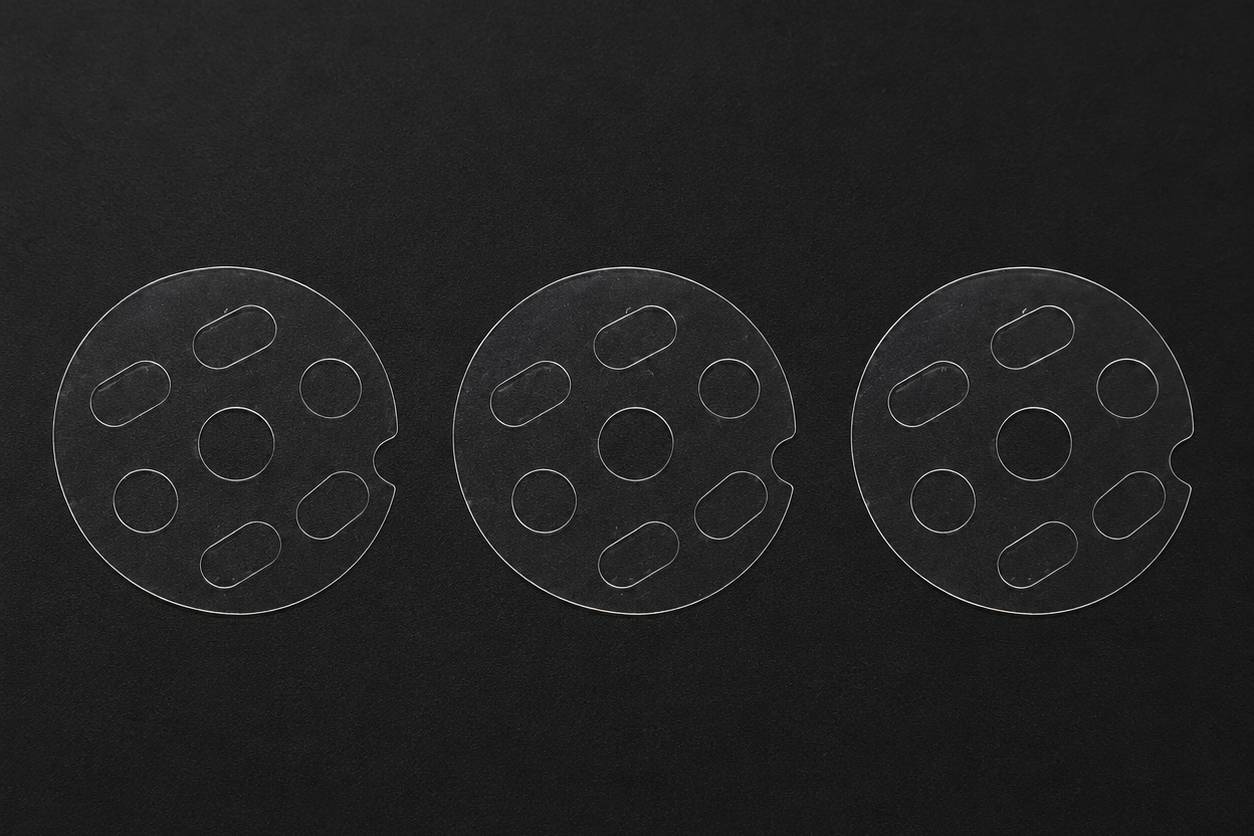

Small holes, narrow slots, windows, and complex contours
Fast sample turnaround and shorter lead time for new projects
Flexible production for small batches or multiple SKUs
Processing of adhesive PET films or laminated polyester films
Very high-volume production of the same fixed part
Simple shapes with minimal design changes
Lowest unit cost at large scale after tooling is already amortized
A process dedicated to long-run, standardized PET film parts

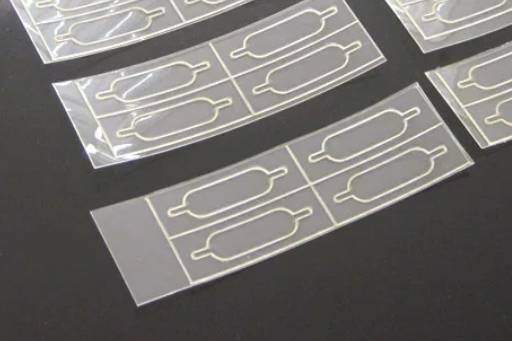

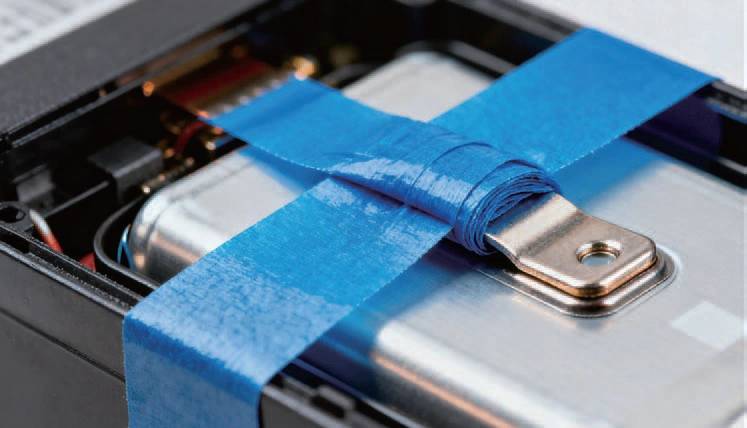

Used for precision cutting of PET insulation films, dielectric barriers, spacers, and protective layers in motors, transformers, battery packs, sensors, and compact electronic assemblies.

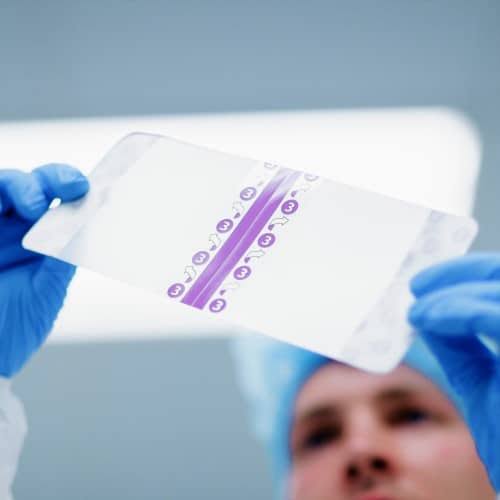

Applicable to selected PET film components used in medical disposables, diagnostic cartridges, laminated film layers, and precision-cut polymer parts requiring clean non-contact processing.

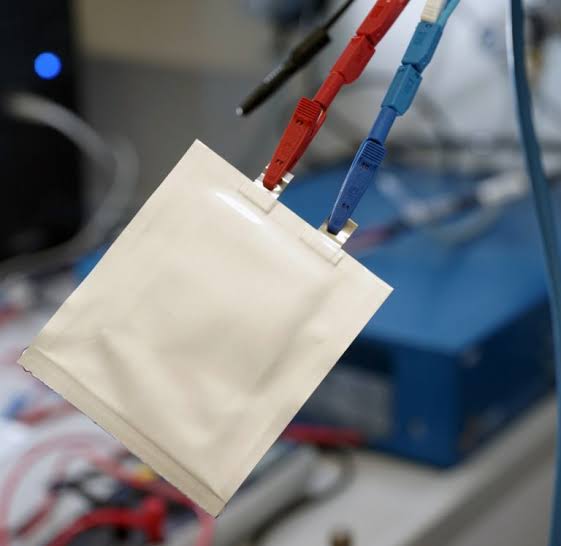

Suitable for PET insulating films, protective separators, barrier layers, and precision-cut thin-film components used in battery modules, consumer batteries, and energy storage assemblies.

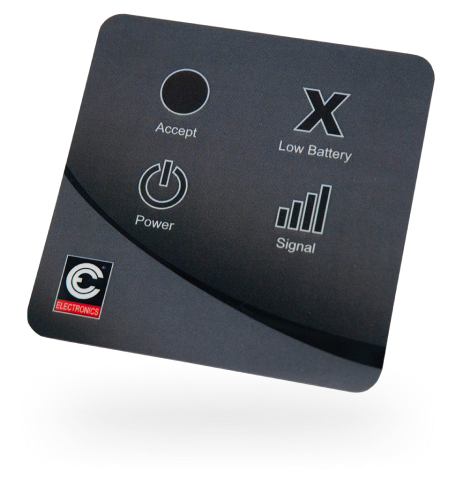

Supports precision contour cutting, slotting, and window opening of PET labels, membrane panels, graphic overlays, and functional panel films where dimensional consistency and clean edges are critical.
Precision Positioning: Supports precise positioning of printed marks, laminated structures, transparent films, and adhesive-backed PET materials for stable, repeatable processing accuracy.
Energy Control: Provides high-precision energy control for clean cutting, drilling, and window opening of thin PET and polyester films with reduced thermal impact and improved edge quality.
High-Speed Stability: Ensures stable high-speed movement, vibration suppression, and micron-level positioning for delicate flexible film converting applications.
Enables smooth contour cutting with reduced burrs, edge deformation, and thermal damage on delicate film materials.
Supports rapid design changes, short production runs, and complex shapes without the tooling cost and lead time of conventional die cutting.

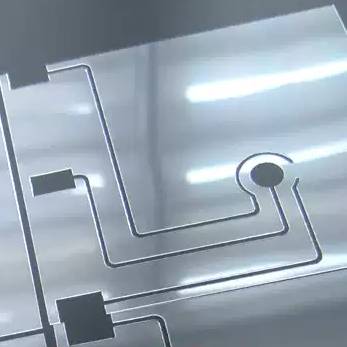

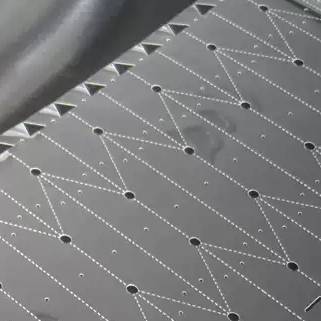

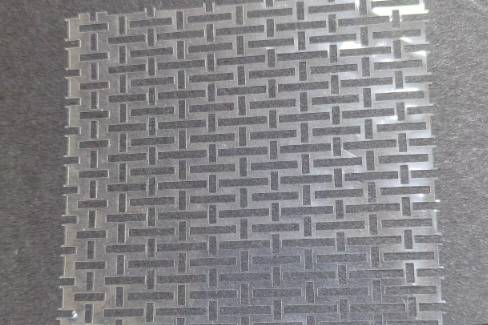

Suitable for slots, windows, apertures, and fine hole patterns in insulation films, protective films, and laminated polyester structures.
Combines precision motion, vacuum adsorption, and vision alignment for repeatable quality in industrial film converting applications.

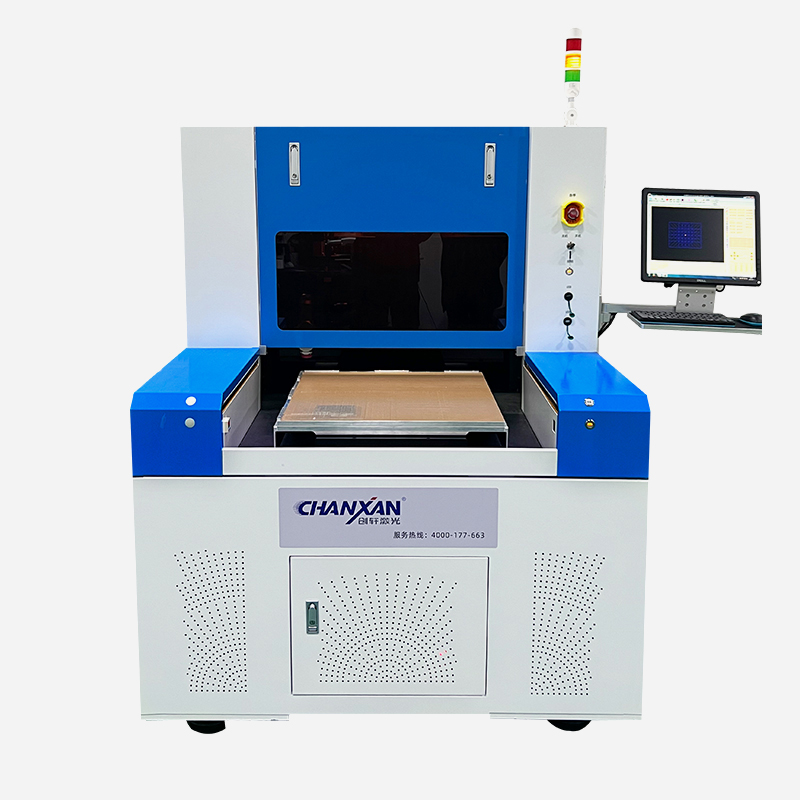

| Features | Parameters |
|---|---|
| Model | CW-6050PZ |
| Machine Type | PET Film Laser Cutting Machine |
| Laser Source | Picosecond UV / Green / IR |
| Laser Power | 30W |
| Motion System | X/Y/Z Precision Motion Platform |
| Working Area | 500 × 500 mm / 600 × 900 mm |
| Vacuum Adsorption Table | 1200 × 700 mm (Customizable) |
| Recommended Material Thickness | ≤3 mm |
| Max Processing Speed | ≤3000 mm/s |
| Processing Accuracy | ≤30 μm |
| Positioning Accuracy | ±1 μm |
| Repeatability | ±1 μm |
| Vision Alignment | High-resolution CCD |
| Software | Chanxan Self-developed Control Software |
| Supported Formats | PLT, BMP, DXF, DWG, AI, LAS, etc. |
| Supply Voltage | 380V ±10%, 50Hz |
