Chanxan polyimide film laser processing machine is engineered for high-precision cutting, drilling, windowing, and contour structuring of PI films, FPC coverlays, insulating films, and other flexible polymer materials. It delivers clean edges, minimal heat affected zone, and stable micron-level processing for electronics, battery insulation, and flexible circuit manufacturing.
Polyimide (PI) film is widely used in flexible circuits, insulation layers, coverlays, and high-temperature electronic components due to its excellent dielectric strength, thermal resistance, and dimensional stability. However, conventional die cutting and mechanical punching often cause burrs, edge deformation, tool wear, and limited flexibility for complex geometries. Chanxan's polyimide film laser processing machine uses ultrashort-pulse laser technology to achieve high-precision non-contact cutting, drilling, and window opening on PI films with minimal thermal impact. It helps manufacturers produce cleaner edges, finer features, and more consistent results for high-value flexible electronic applications.

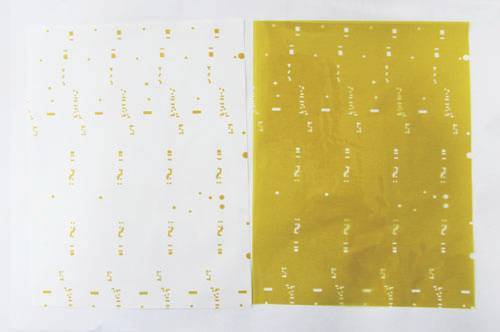

For cutting PI base films, coverlays, reinforcement films, and insulating layers used in flexible PCB manufacturing. Suitable for contour cutting, window opening, and precision drilling.
Used for precision processing of polyimide films in smartphone modules, wearable electronics, camera assemblies, and compact electronic insulation structures.

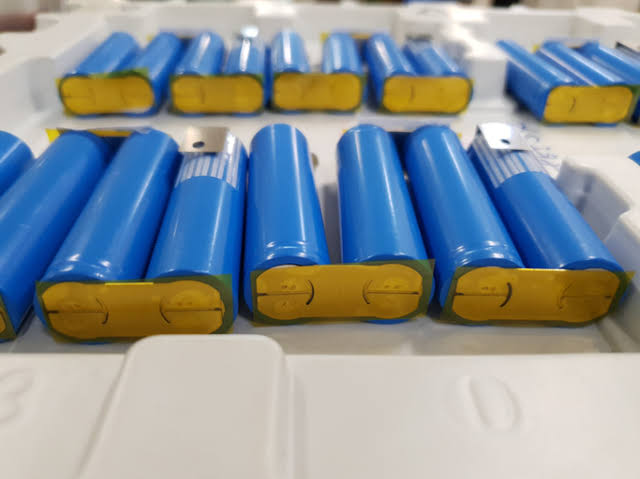

Suitable for PI insulation films, dielectric barriers, and heat-resistant polymer layers used in battery modules, electrical assemblies, and high-temperature insulation systems.
Supports precision processing of PI-based flexible insulating films and composite layers used in RF modules, flexible interconnects, and compact communication electronics.

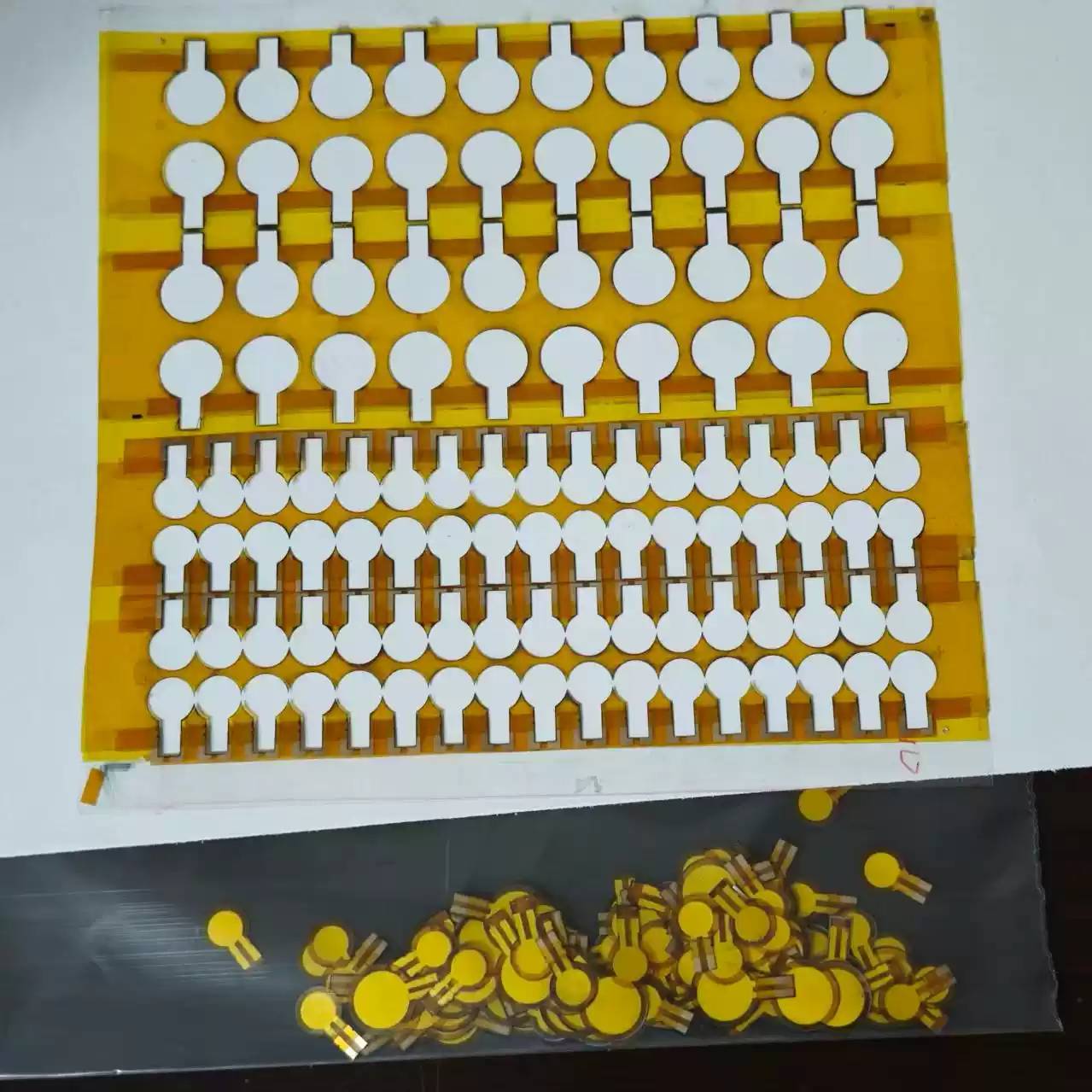

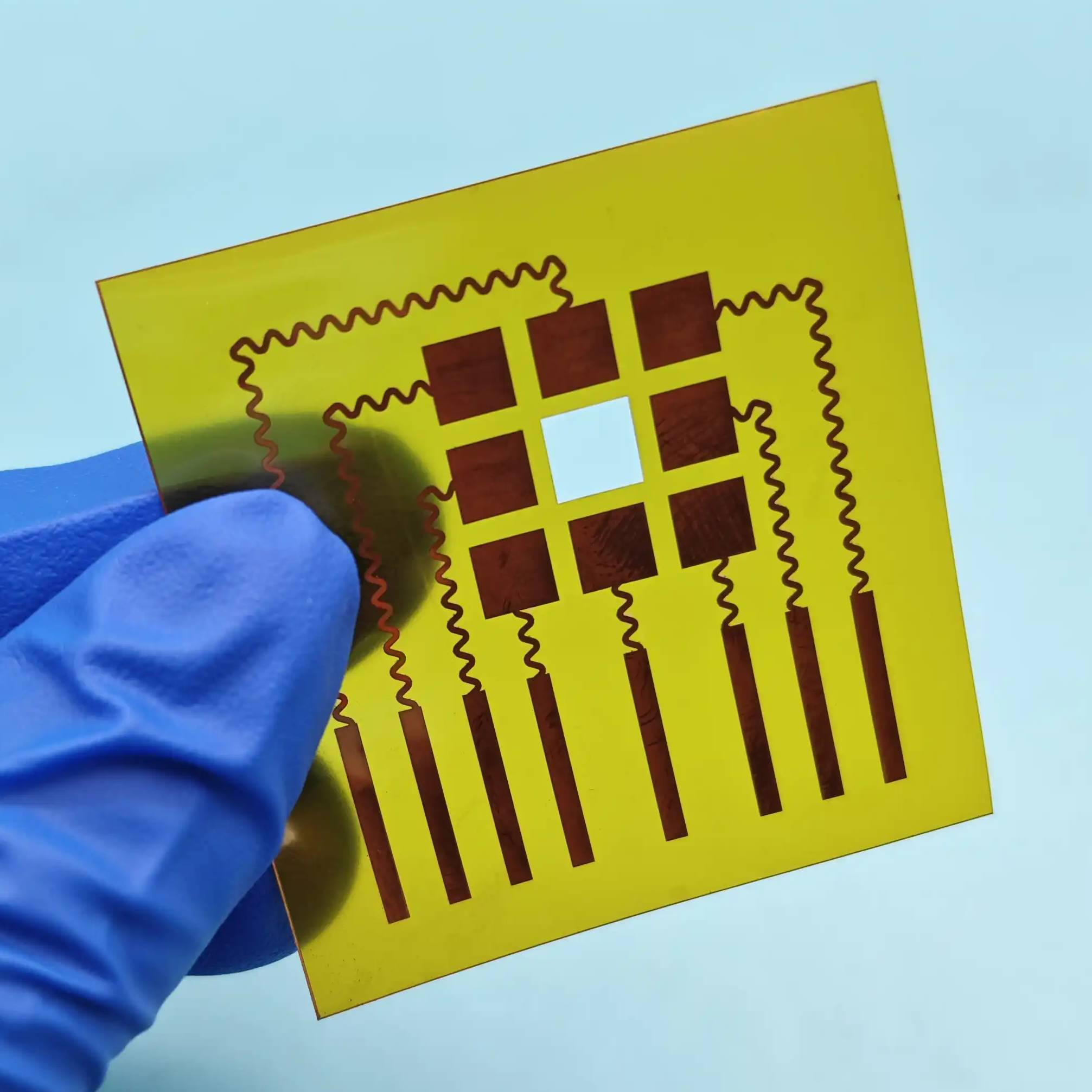

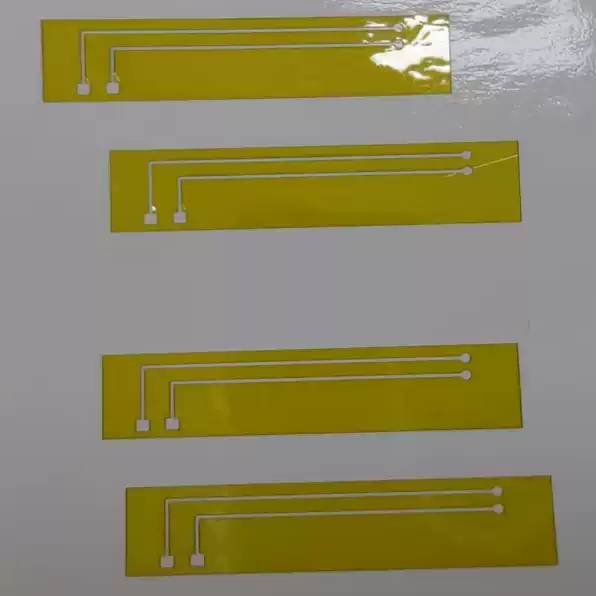

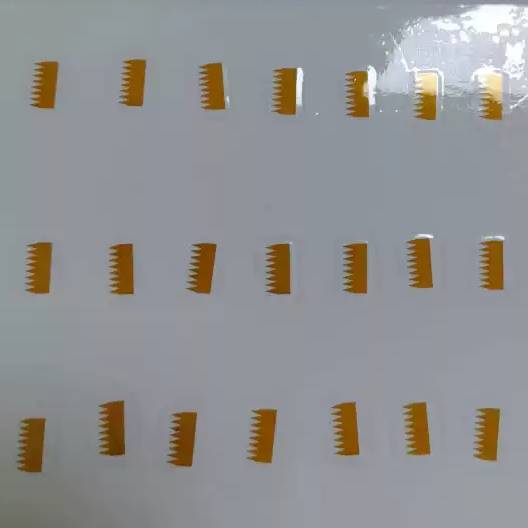

Showcasing clean-edge PI film cutting, micro-hole drilling, coverlay window opening, slot machining, and precision contour processing for flexible electronics and insulation applications.
Precision: Supports precise alignment of PI film contours, registration marks, and pre-patterned flexible circuit layers for repeatable processing accuracy.
Accuracy: Delivers ultrashort-pulse energy for low-thermal-impact cutting, drilling, and structuring of thin polyimide films and coverlay materials.
Stability: Provides stable high-speed motion, vibration suppression, and micron-level positioning for delicate flexible film processing.

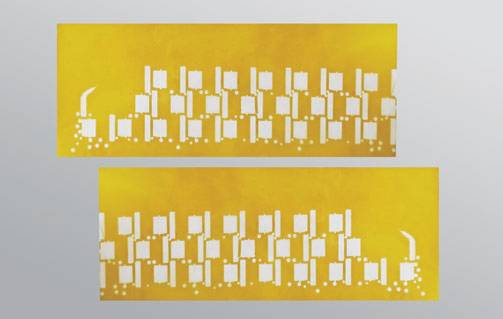

Enables burr-free contour cutting and precision trimming with minimal carbonization and low heat affected zone.
Suitable for micro-hole drilling, slot cutting, and coverlay opening in FPC and insulation film applications.
CCD-based positioning improves consistency when processing printed marks, multilayer structures, and irregular PI film patterns.
Supports rapid product switching and complex geometry processing without the tooling cost and wear associated with die cutting.
| Features | Parameters |
|---|---|
| Model | CW-6050PZ |

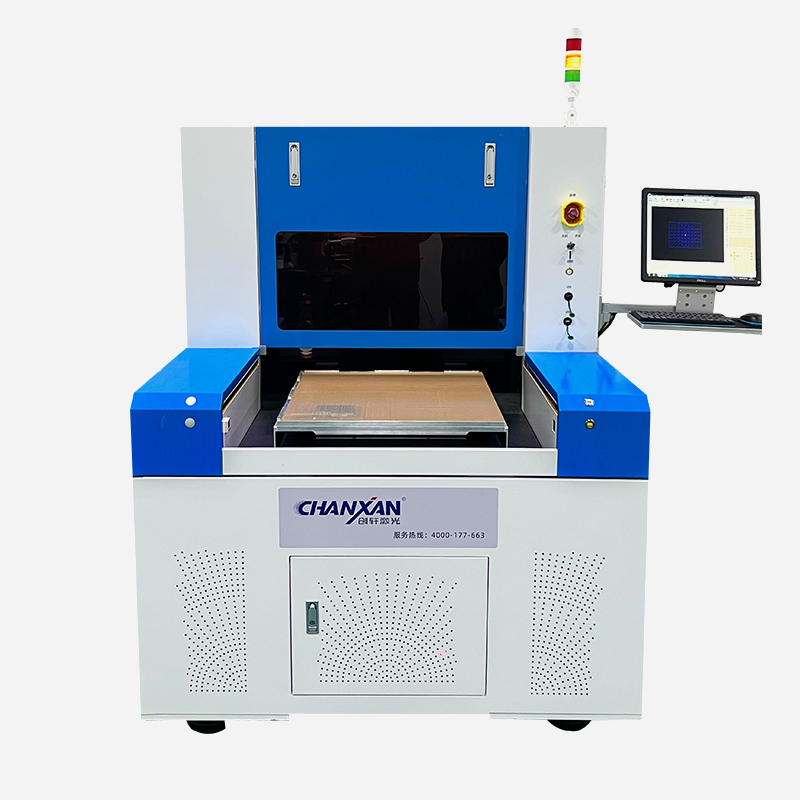

| Machine Type | Polyimide Film Laser Processing Machine |
| Laser Source | Picosecond UV / Green / IR |
| Laser Power | 30W |
| Motion System | X/Y/Z Precision Motion Platform |
| Working Area | 500 × 500 mm / 600 × 900 mm |
| Vacuum Adsorption Table | 1200 × 700 mm (Customizable) |
| Recommended Material Thickness | ≤3 mm |
| Max Processing Speed | ≤3000 mm/s |
| Processing Accuracy | ≤30 μm |
| Positioning Accuracy | ±1 μm |
| Repeatability | ±1 μm |
| Vision Alignment | High-resolution CCD |
| Software | Chanxan Self-developed Control Software |
| Supported Formats | PLT, BMP, DXF, DWG, AI, LAS, etc. |
